abaco systems CEI-520 - CEI-220 Interrupts and Slew Rate; CEI-220 ARINC Connector Pin out

Installation Configuring the CEI-220
CEI-100/CEI-200/CEI-x20 User’s Manual 23
CEI-220 Interrupts and Slew Rate
The CEI-220 interrupts are software-controlled. See the “Hardware
Interrupt Control” section for information on selecting interrupts.
The CEI-220 slew rate is controlled automatically as a function of the
selected bit rate.

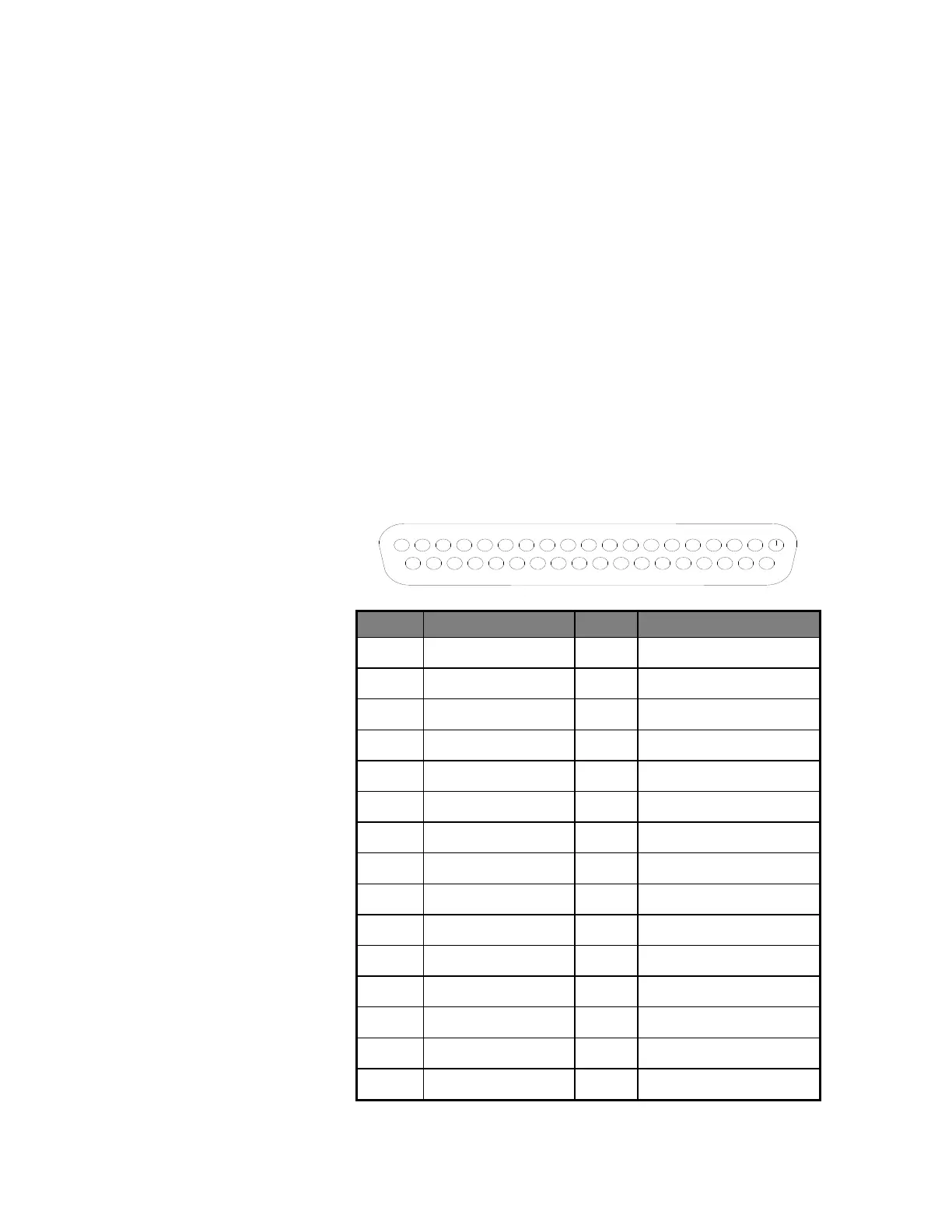

CEI-220 ARINC Connector Pin Out
To couple the CEI-220 to ARINC devices, two, 37-pin Subminiature “D”
type connectors are provided. The connector pin numbers are listed in
Figure 11. The end-panel connector (P3) is female, and the rear connector
(P4) is male.
To make an external wrap adapter, use a DB37 male connector and tie pin
1 to 20, 2 to 21, etc. through 18 to 37.
Pin
Signal
Pin
Signal
P3-1
TX1+
P3-20
RX1+
P3-2
TX1-
P3-21
RX1-
P3-3
TX2+
P3-22
RX2+
P3-4
TX2-
P3-23
RX2-
P3-5
TX3+
P3-24
RX3+
P3-6
TX3-
P3-25
RX3-
P3-7
TX4+
P3-26
RX4+
P3-8
TX4-
P3-27
RX4-
P3-9
TX5+ (Note 1)
P3-28
RX5+ (Note 1)
P3-10
TX5- (Note 1)
P3-29
RX5- (Note 1)
P3-11
TX6+ (Note 1)
P3-30
RX6+ (Note 1)
P3-12
TX6- (Note 1)
P3-31
RX6- (Note 1)
P3-13
TX7+ (Note 1)
P3-32
RX7+ (Note 1)
P3-14
TX7- (Note 1)
P3-33
RX7- (Note 1)
P3-15
TX8+
P3-34
RX8+
