Installation Configuring the CEI-420 and CEI-420A
CEI-100/CEI-200/CEI-x20 User’s Manual 25
Pin
Function
Pin
Function
P4-6
TX12-
P4-25
RX12-
P4-7
DISOUT4
P4-26
DISINHI1
P4-8
GND
P4-27
DISINLO1
P4-9
DISOUT3
P4-28
DISINHI2
P4-10
GND
P4-29
DISINLO2
P4-11
DISOUT2
P4-30
DISINHI3
P4-12
GND
P4-31
DISINLO3
P4-13
DISOUT1
P4-32
DISINHI4
P4-14
GND
P4-33
DISINLO4
P4-15
****
P4-34
P4-16
****
P4-35
P4-17
****
P4-36
P4-18
****
P4-37
****
P4-19
****
**** Factory use only. Connecting these pins may damage the board.

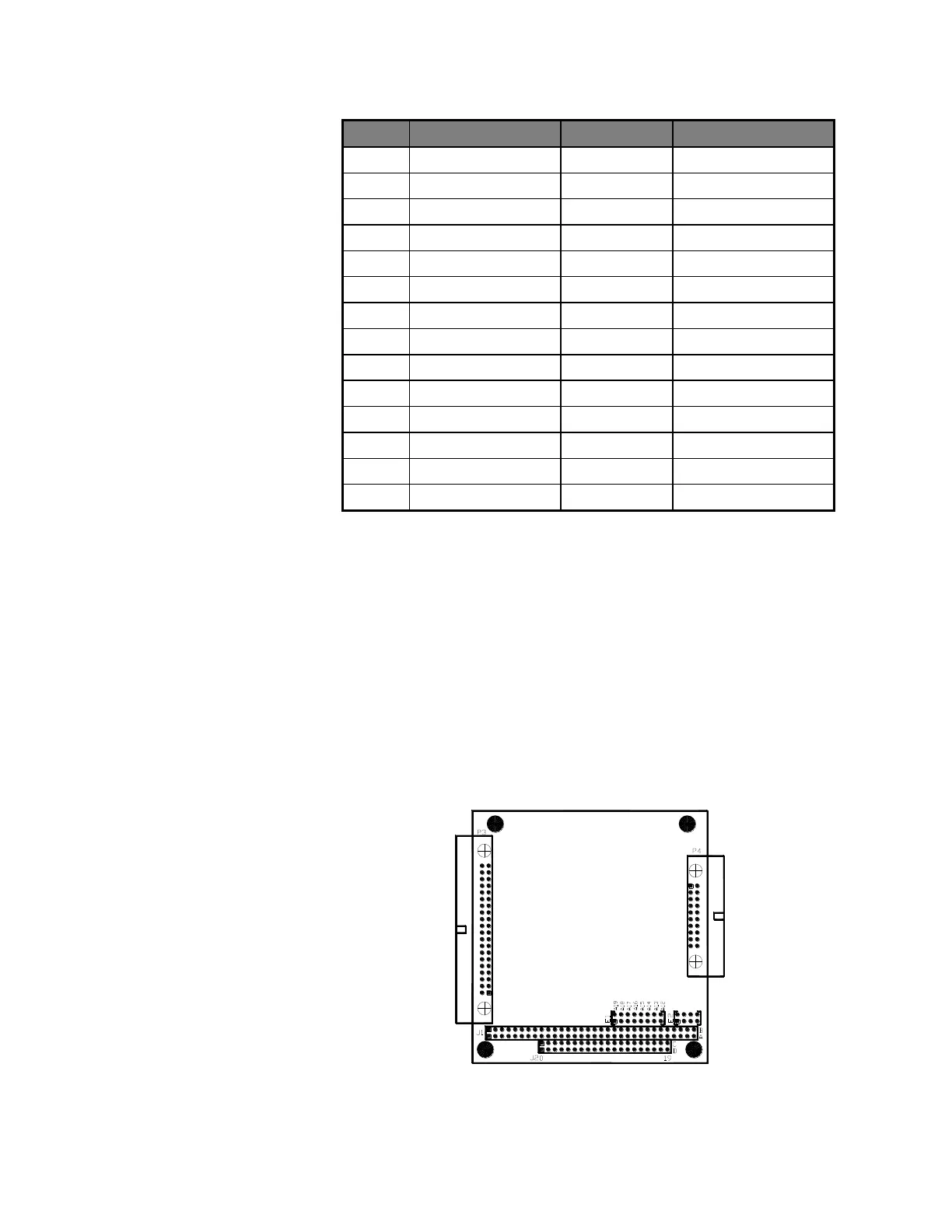

Figure 12. CEI-220 P4 Connector Pinout
Configuring the CEI-420 and CEI-420A
This section provides configuration information for the CEI-420/420A.
CEI-420/420A Outline Drawing
Figure 13. CEI-420/420A Outline Drawing
