ACS800-104 ordering information
100
Installation parts for R8i modules
The following tables list the R8i installation parts available from ABB.
Also refer to the drawings in the chapters Cabinet construction and Dimensional
drawings.

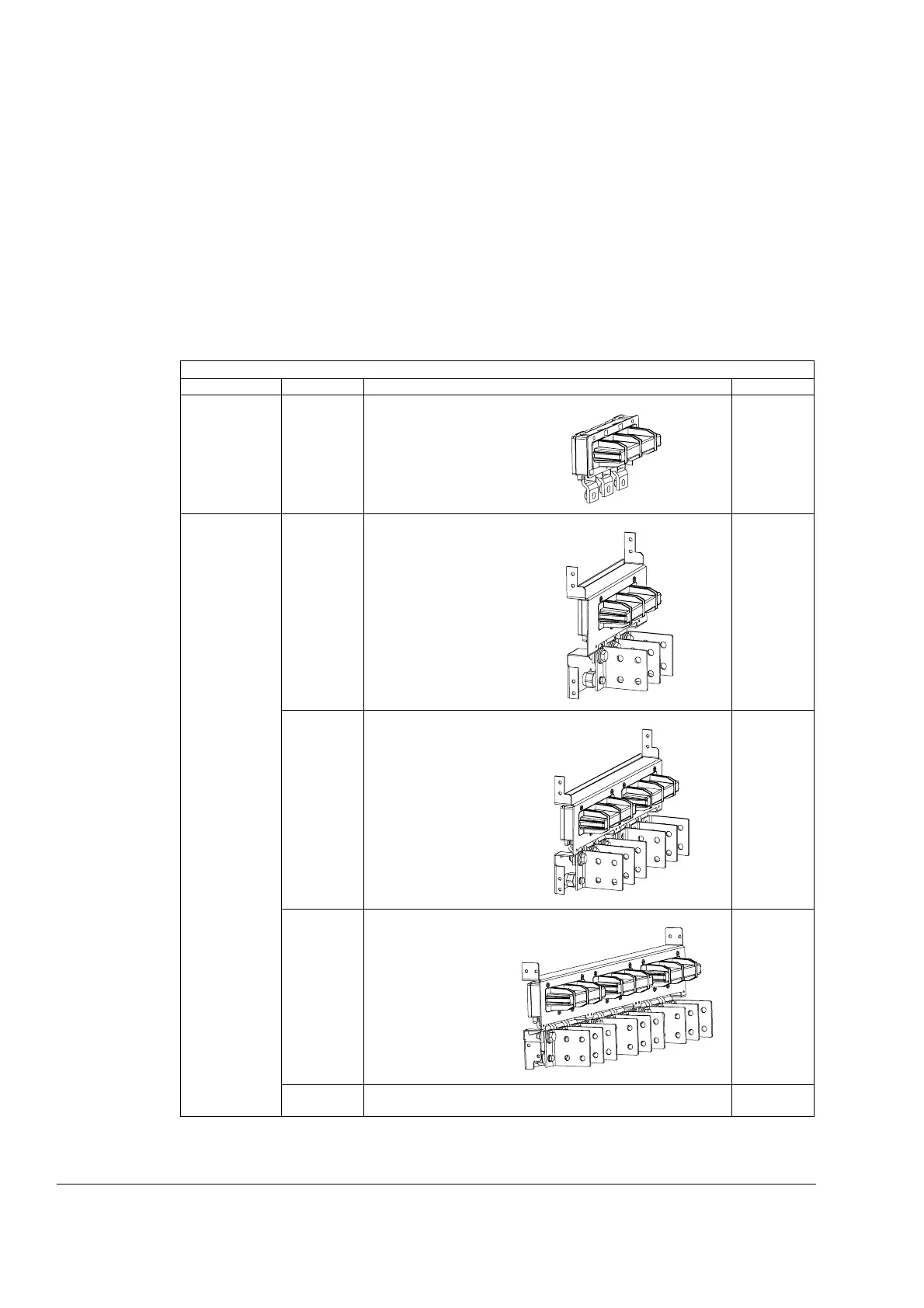

Quick connector chassis socket kits
The chassis socket part of the quick connector is to be mounted on the rear pillars of
the cubicle. The socket can also be mounted on the back plate.
Quick connector kits for R8i modules
Kit For… Contents of 1 kit Order code
Connector only
Single R8i
module
1 pc Quick connector 64698401
Connector with
mounting parts
and output
busbars
Single R8i
module
1 pc Quick connector
1 pc Mounting plate
3 pcs Output busbar
3 pcs Support insulator
68239427
Two R8i
modules side
by side
2 pcs Quick connector
1 pcs Mounting plate
6 pcs Output busbar
6 pcs Support insulator
68239435
Three R8i
modules side
by side
3 pcs Quick connector
1 pcs Mounting plate
9 pcs Output busbar
9 pcs Support insulator
68242231
1 + 2 R8i
modules
68239427 + 68239435 68260744
