ABB ACS800-104

ACS800-104 ordering information
99

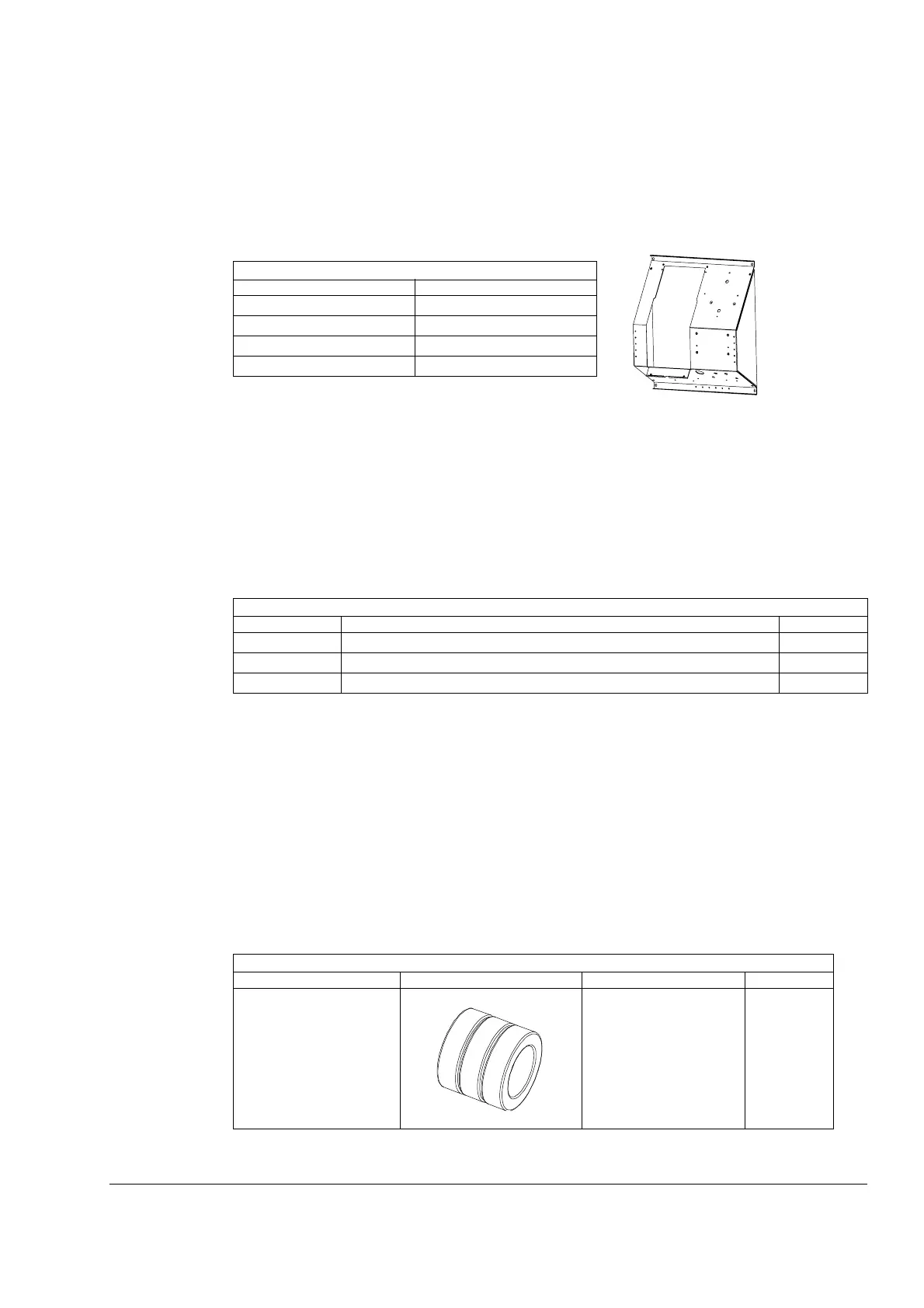

Inclined mounting plates for R2i to R5i modules
Ready-made mounting plates for inclined mounting of frame R2i to R5i inverter
modules – as exemplified in the chapter Cabinet construction – are available. The
designs are also shown in Dimensional drawings.
Cooling fans for R6i and R7i modules
Frame R6i and R7i inverter modules require an external cooling fan that is to be fed
from the 230/115 V AC auxiliary voltage source. There are two types available
depending on the voltage.
The inverter module and the cooling fan are connected by either the mounting plate
listed below (#64138375; a separate air baffle required) or a combined air baffle/
mounting plate. Both mounting plates are shown in Dimensional drawings.
Common mode filters for R6i to R8i modules
Common mode filtering reduces bearing currents and is required for electromagnetic
compatibility (EMC). The filtering is implemented by using toroids.
With R6i and R7i modules, the toroids are installed on the output (motor) cable
according to the instructions given in Electrical installation, section Power
connections – Frames R6i and R7i.
With R8i modules, common mode filtering is implemented by installing three toroidal
cores onto the DC input of each module. The DC busbar sets listed later in this
chapter contain holders for the common mode filters.
Inclined mounting plates for R2i to R5i modules
Frame size Order code
R2i
64739328
R3i
64739174
R4i
64739344
R5i
64739352
Cooling fans for R6i and R7i modules
Kit Information Order code
Fan (230 VAC)
Fan type: G2E140-P151-09. Connection cable length: 1.5 m (5 ft). 64114158
Fan (115 VAC)
Fan type: G2E140-AI32-ABB. Connection cable length: 1.5 m (5 ft). 64114191
Mounting plate
Use a separate air baffle. 64138375
Common mode filters for R6i to R8i modules
Kit Contents Quantity Order code
Common mode filter kit
1 kit per inverter module 64315811
64739328
