R6i/R7i connectors

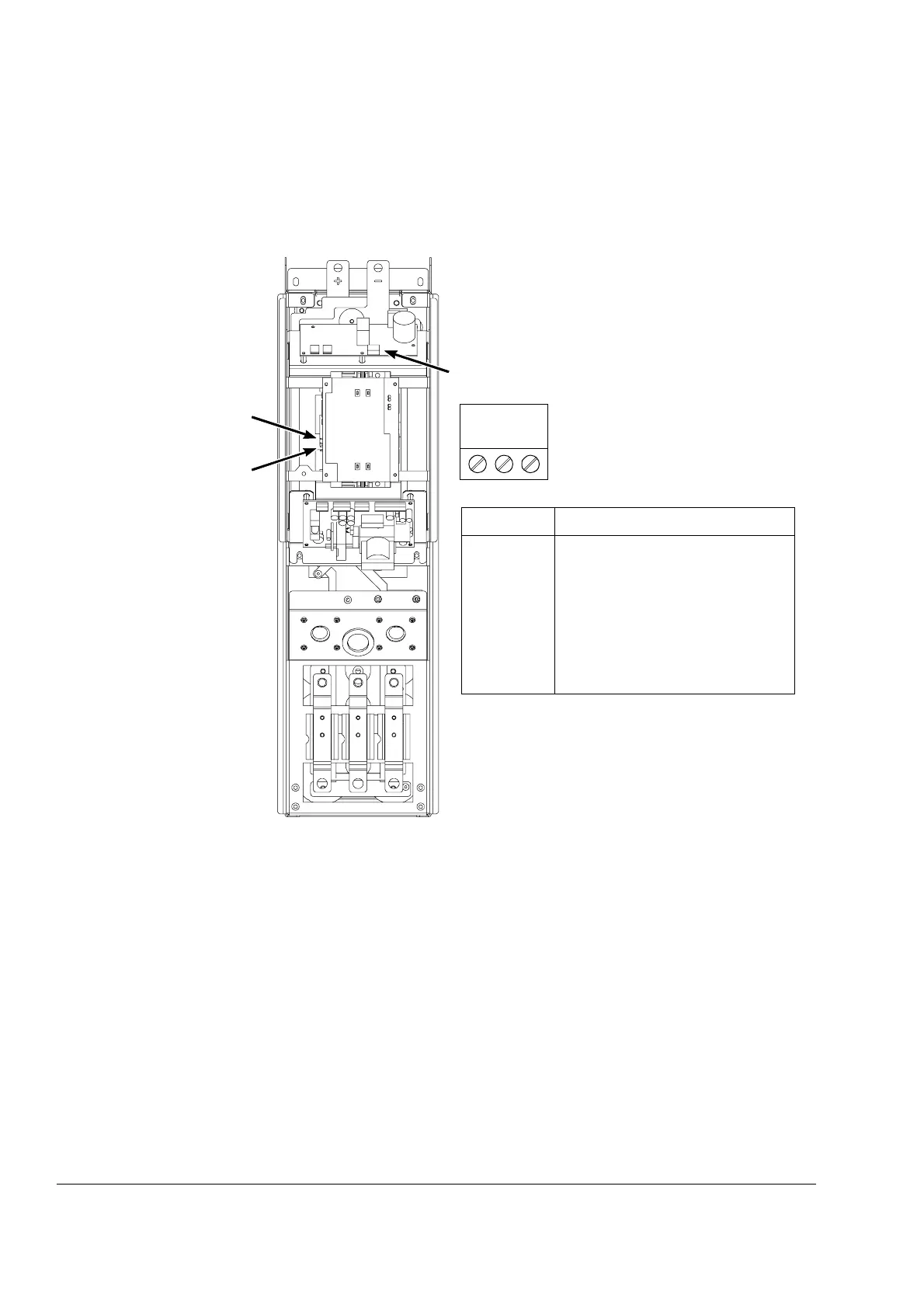

The following picture shows the fibre optic connectors V41 and V42 on the NINT
board as well as the NGPS connection (optional).
NINT V42
NINT V41
Terminal no. Information
1…3 Prevention of unexpected start
(optional). See also the chapter Circuit
diagrams.
1 PE
2 N
3 L (95…265 V AC). Voltage must be ON
for the inverter to start.
123
NGPS X1
