External +24 V power supply for the RMIO board
76

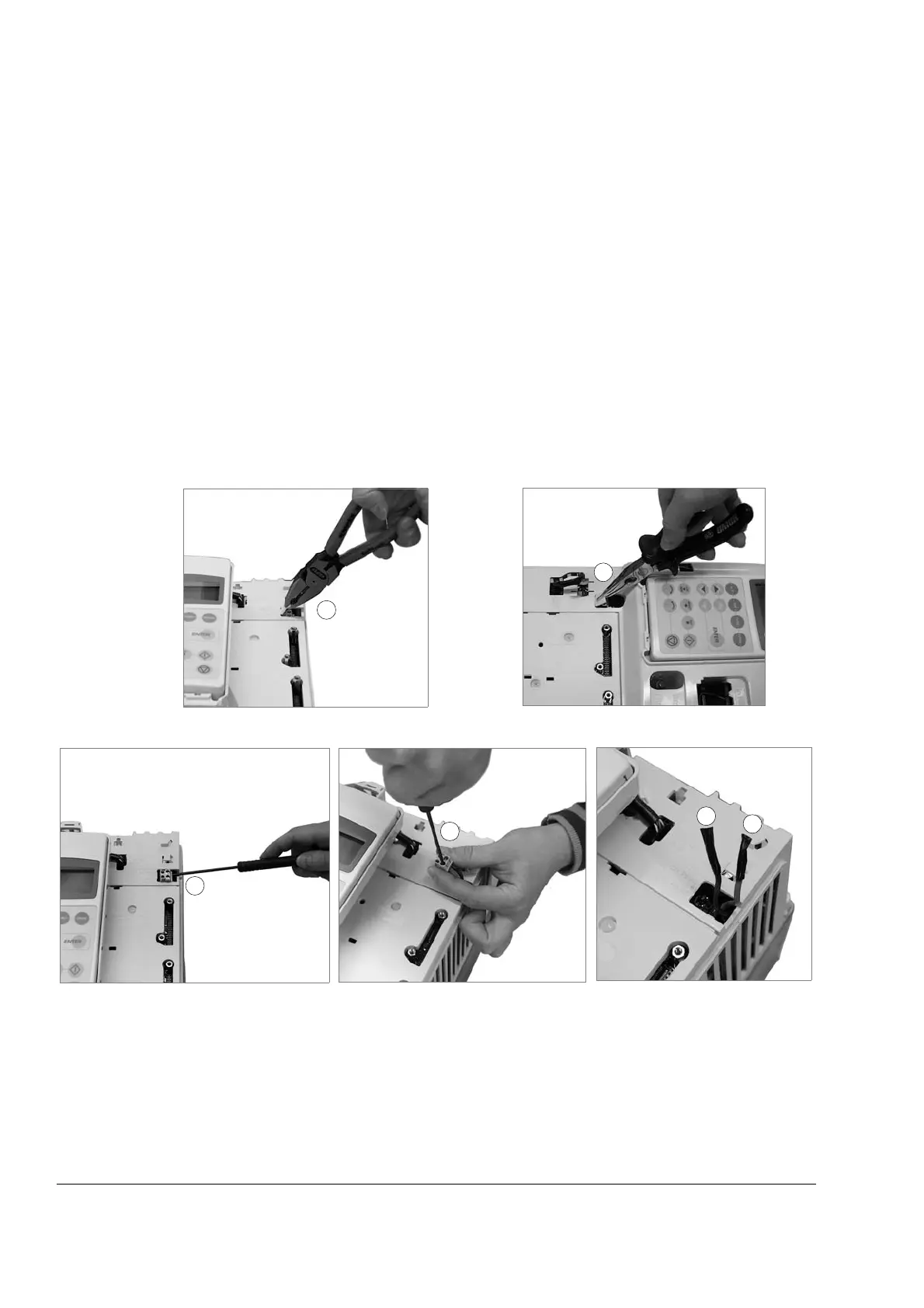

Connecting +24 V external power supply
1. Break off the tab covering the +24 VDC power input connector with pliers.
2. Lift the connector upwards.
3. Disconnect the wires from the connector (keep the connector for later use).
4. Isolate the ends of the wires individually with insulating tape.
5. Cover the isolated ends of the wires with insulating tape.
6. Push the wires inside the skeleton.
7. Connect the wires of the +24 V external power supply to the disconnected
connector: + wire to terminal 1 and - wire to terminal 2.
8. Plug the connector in.
1
Frame sizes R2i to R4i
Frame sizes R5i
1
3
4
4
2
