ABB ACS800-104

Hardware description
20

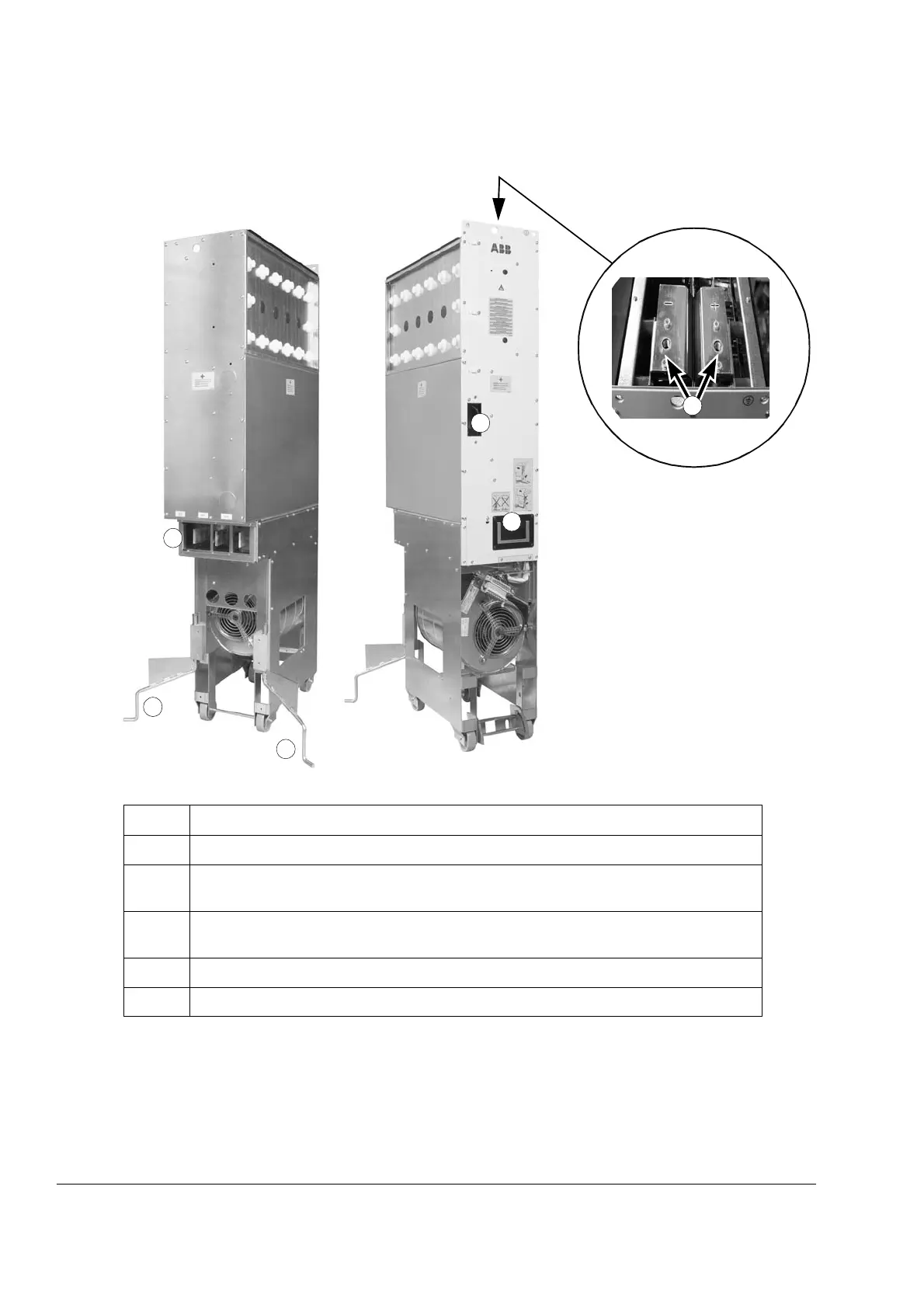

Module layout
Item Explanation
1 DC (input) connections
2 Output busbars. To be aligned with the quick connector socket mounted in the cubicle.
Direct connection of cables without using the quick connector is also possible.
3 Fibre optic connectors of the AINT board. Connected to the RDCU drive control unit (via
an NPBU branching unit in case of parallel inverter modules).
4 Retractable support legs
5 Handle
2
4
3
4
1
5
