ABB ACS800-104

Hardware description
17

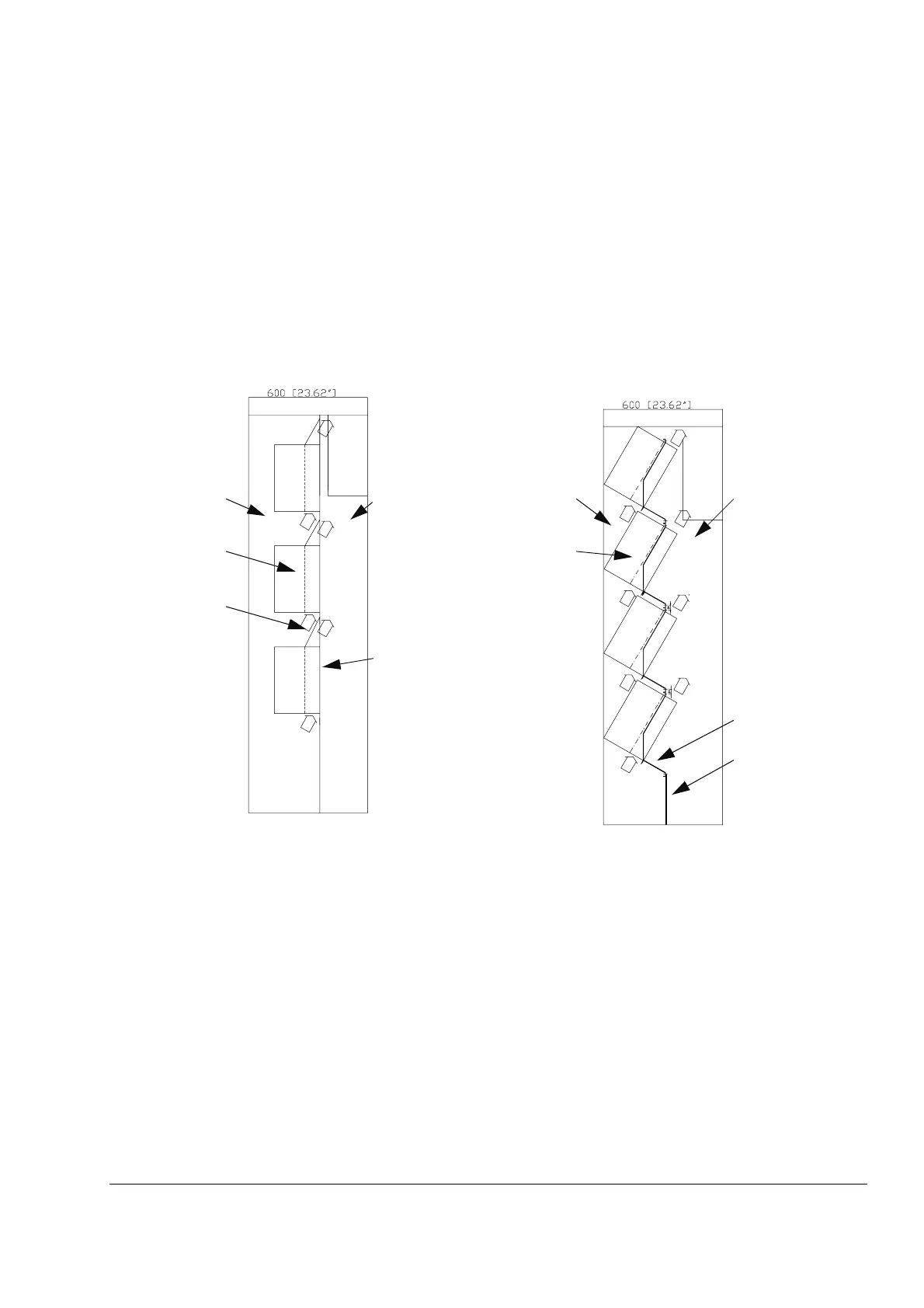

Cabinet layout
Several modules can be installed in one cubicle. The modules can be mounted
vertically, or in a slightly inclined position to save more vertical space. See the
chapter Cabinet construction. Drawings of mounting accessories for both vertical
and inclined mounting, suitable for common cabinet systems, are shown under
Dimensional drawings. (The plates for inclined mounting can be ordered from ABB.)
Hot area
Mounting
plates
Air baffle
Hot areaCool area
Airflow guides
Inverter
modules
Mounting
plates
Cool area
Inverter
modules
Vertical mounting Inclined mounting
