ACS800-104 ordering information
101
DC busbar kits
These kits contain the parts needed to connect the DC busbars of the inverter
module and the DC switch fuse or DC fuses. The common mode filters (optionally
available) are to be installed on the DC busbars.

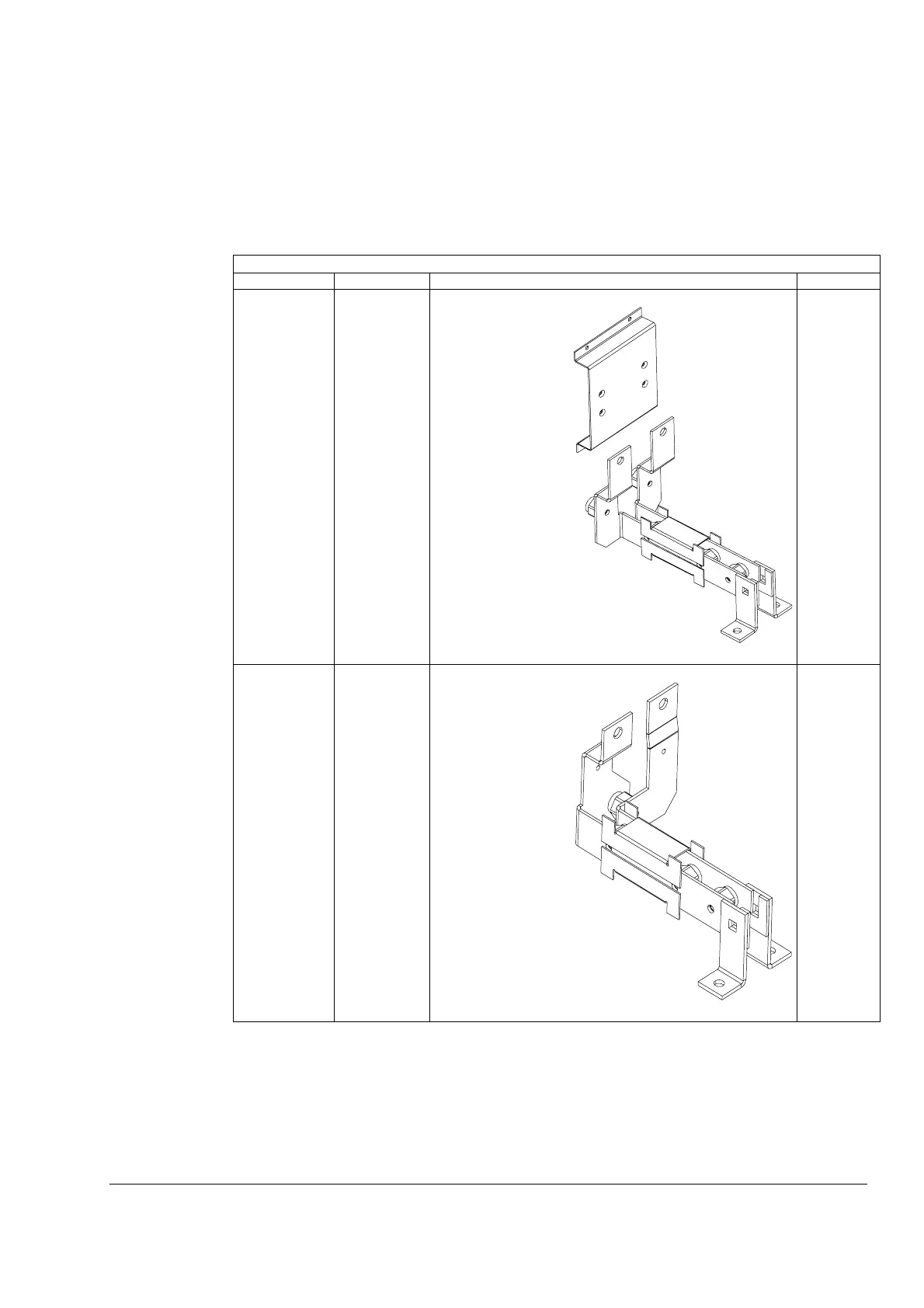

DC busbar kits for R8i modules
Kit For… Contents of 1 kit Order code
Connecting
busbars from
fuse bases to DC
input of module
Single R8i
module
4 pcs Busbar
2 pcs Holder for
common mode filters
5 pcs Support insulator
1 pc Mounting plate for
fuse bases
64806823
Connecting
busbars from
switch fuse
(OESL) to DC
input of module
Single R8i
module (2-pole
switch fuse)
4 pcs Busbar
2 pcs Holder for
common mode filters
5 pcs Support insulator
68256747
