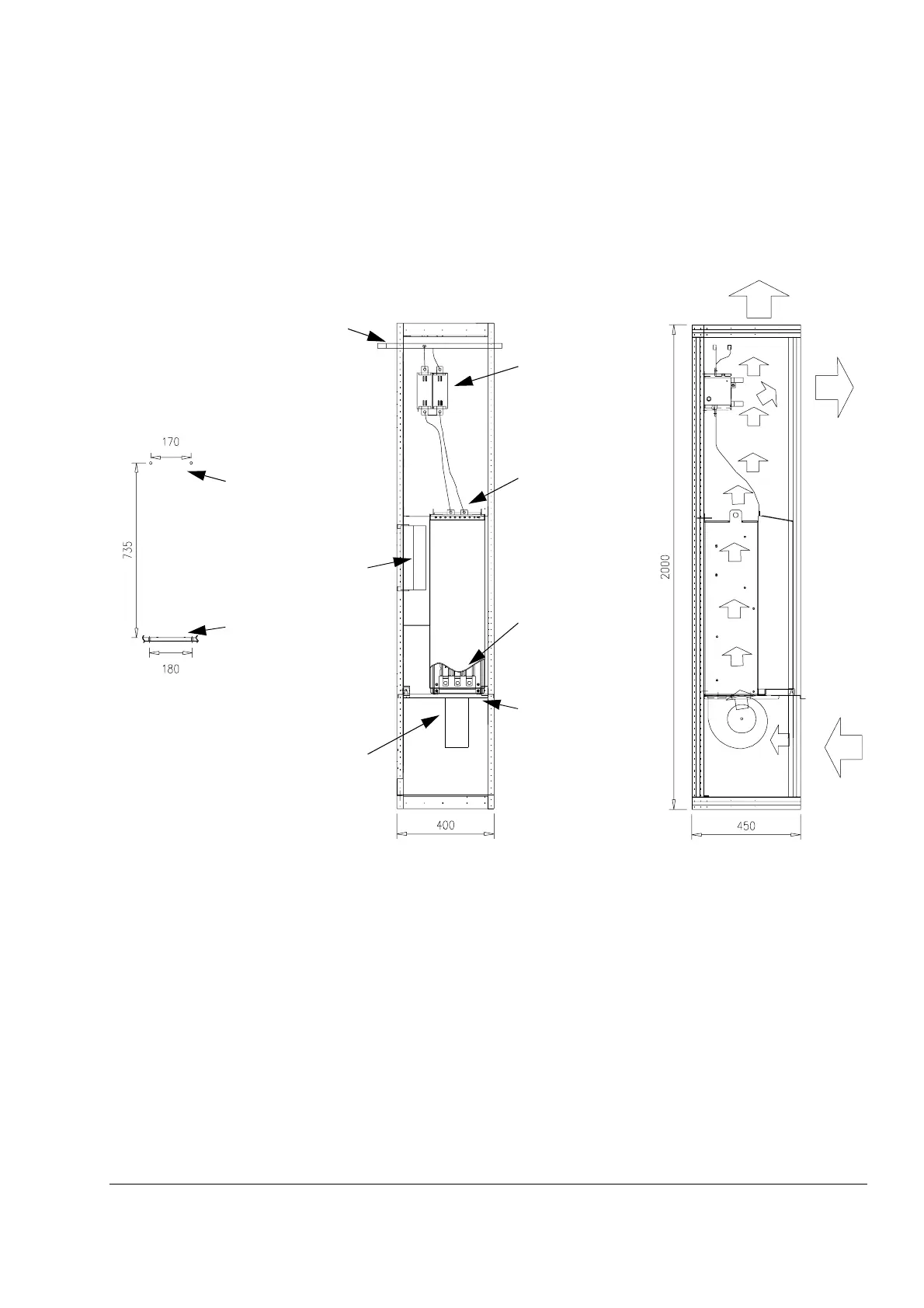

Installation without mounting plate 64138375
The module is fastened to the rear wall with two M8 screws, and to a combined
mounting plate/air baffle with four M6 screws. The cooling fan is also fixed to the
plate which has to be strong enough to carry the weight of the module. A suitable
design for the mounting plate/air baffle is shown in Dimensional drawings.
Air in
Combined mounting
plate/air baffle. See
Dimensional
drawings
AC connection
DC connection
DC fuses
DC busbars
Module top fixing
points (2–M8)
Drive control unit
Cooling fan (fixed to
the mounting plate)
Module bottom fixing
points (4–M6)
