27

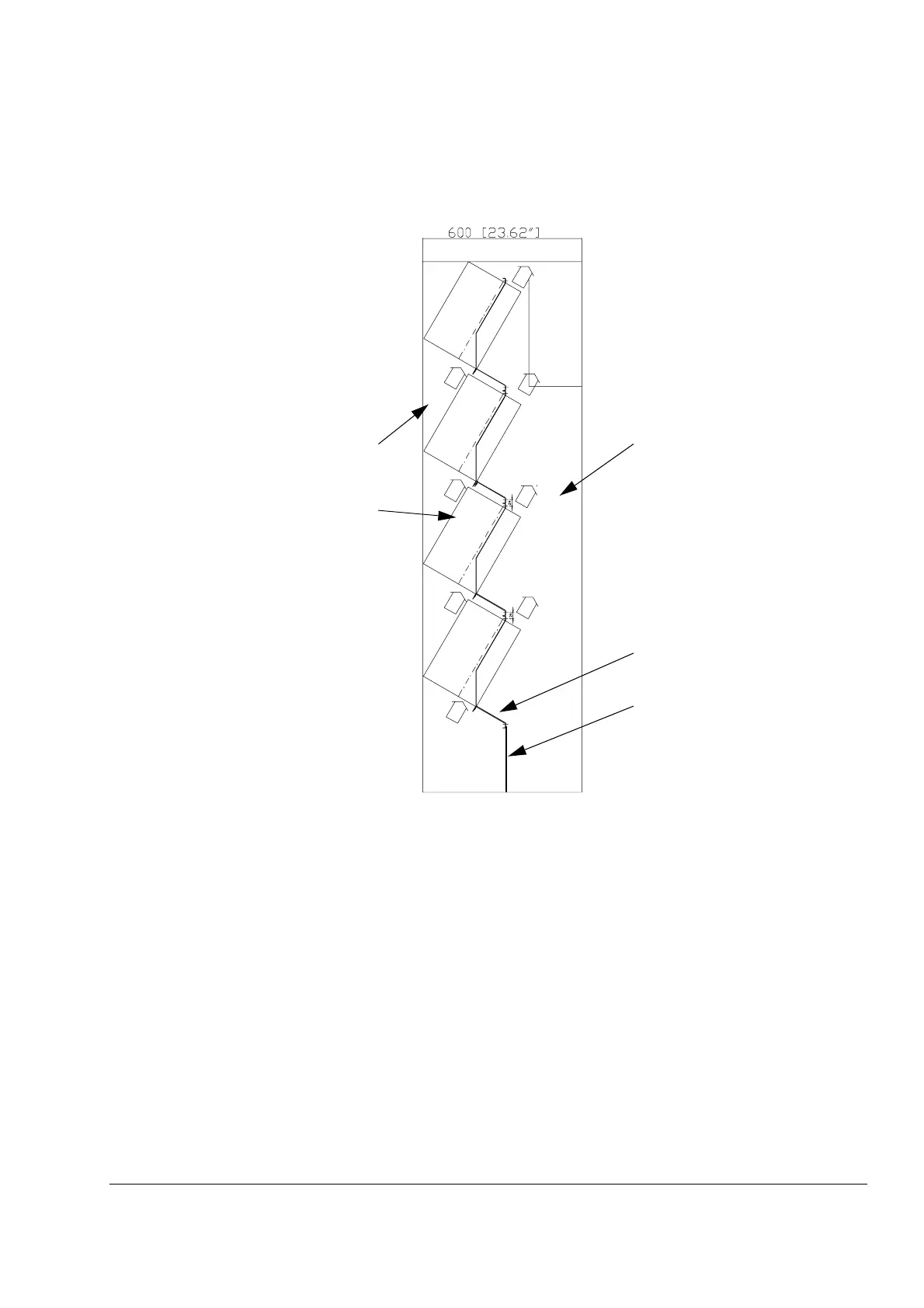

To save vertical space, the inverter modules can be mounted by their flanges in an
inclined position as exemplified below.
The chapter Dimensional drawings presents mounting plates for vertical and inclined
mounting positions. The airflow guides needed in vertical mounting are also
presented.
The mounting plates are directly mountable in a 400 mm-wide Rittal TS 8 cabinet
system; the outer dimensions and fastening holes can easily be adapted for another
system.
Hot areaCool area
SIDE VIEW
Inverter modules
Mounting plates
Air baffle
