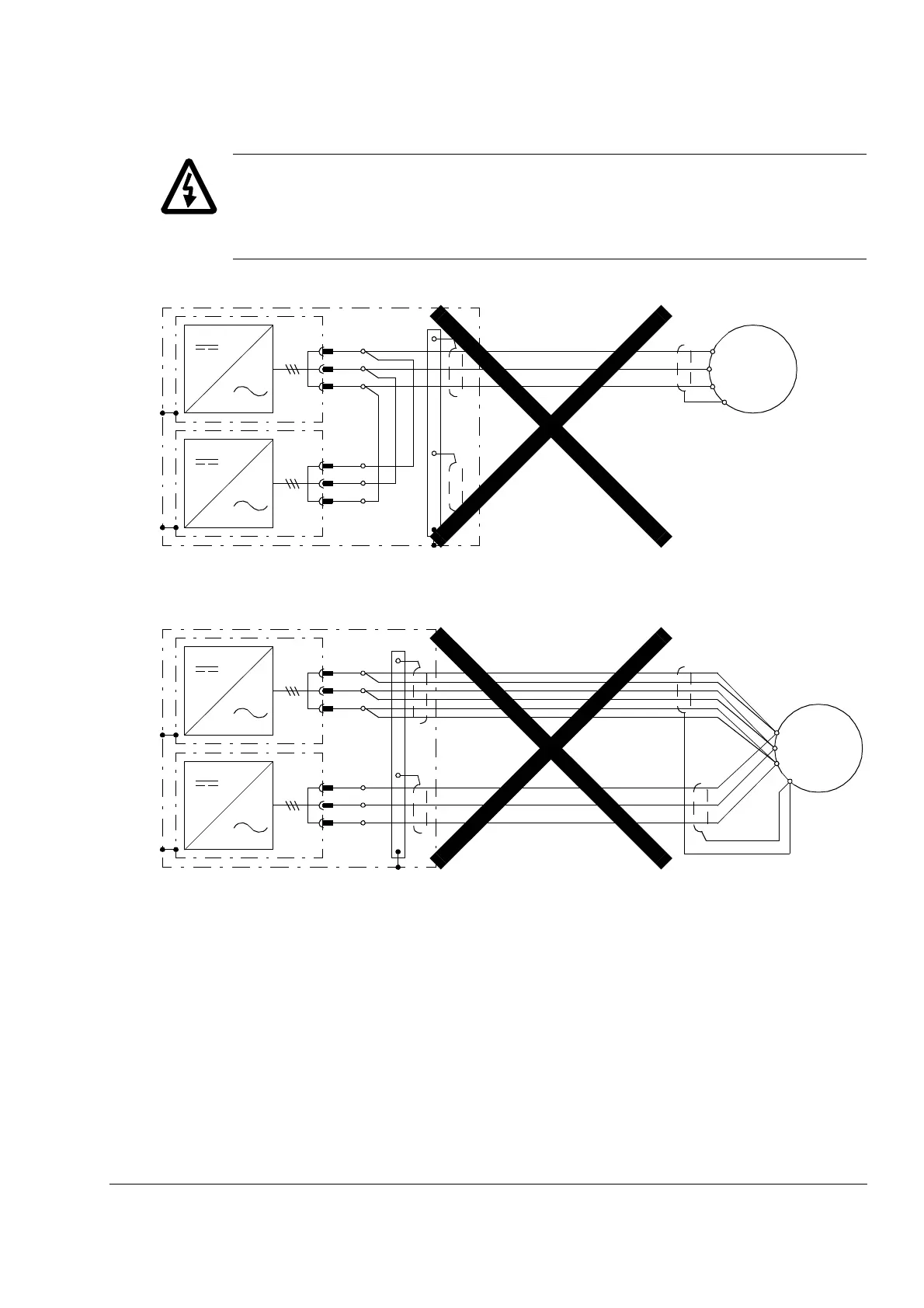

WARNING! The cabling from all inverter modules to the motor must be physically
identical considering cable type, cross-sectional area, and length. For example,
“jumpering” the cables from one inverter module to another (and then to the motor) is
not allowed.
U2
V2
W2
PE
U2
V2
W2
M
3~
U1
W1
V1
PE
Inverter unit cubicle
PE
Inverter unit cubicle
U2
V2
W2
U2
V2
W2
M
3~
U1
W1
V1
PE
