Parameters 297
30.18 Minimum torque sel Selects a source that switches between two different
predefined minimum torque limits.
0 = Minimum torque limit defined by 30.19 is active
1 = Minimum torque limit selected by 30.21 is active

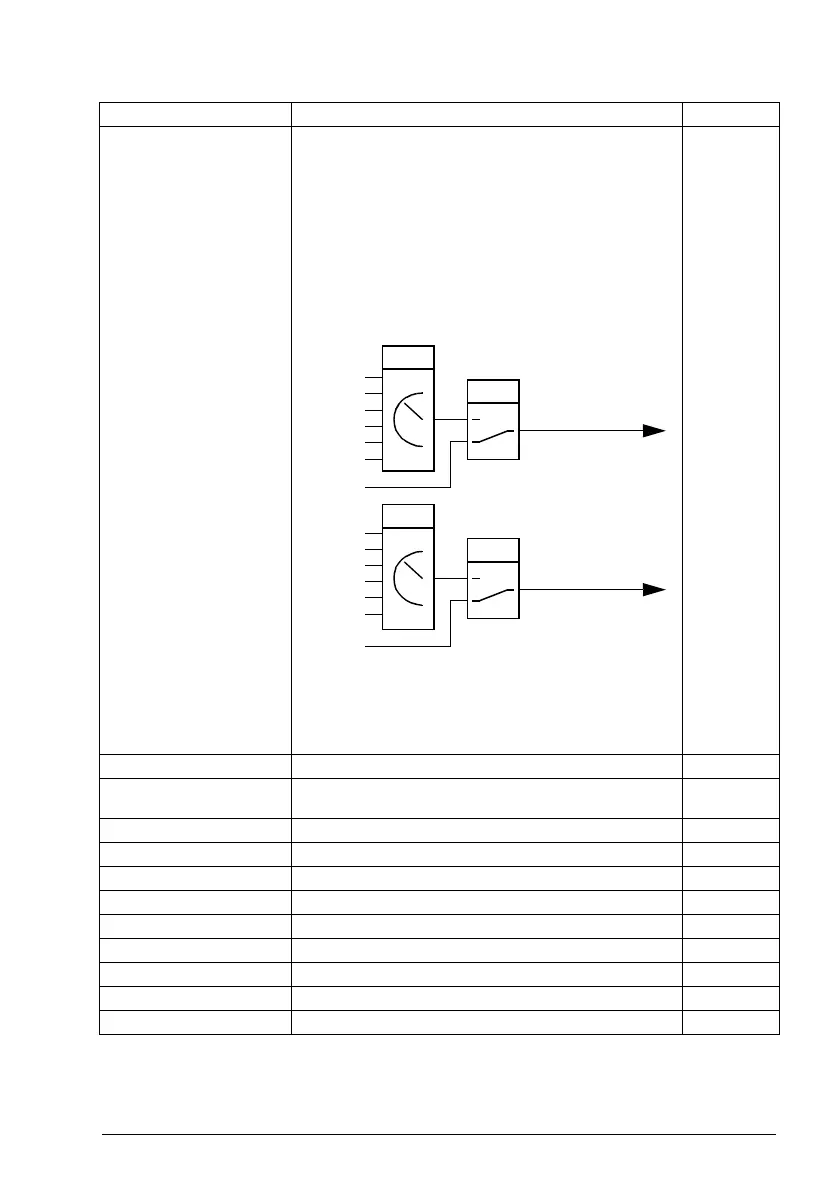

The user can define two sets of torque limits, and switch
between the sets using a binary source such as a digital
input. The minimum limit selection (30.18) is independent of
the maximum limit selection (30.25).
The first set of limits is defined by parameters 30.19 and
30.20. The second set has selector parameters for both the
minimum (30.21) and maximum (30.22) limits that allows the
use of a selectable analog source (such as an analog input).
The limit selection parameters are updated on a 10 ms time
level.
Note: In addition to the user-defined limits, torque may be
limited for other reasons (such as power limitation). Refer to
the block diagram on page 654.
Minimum
torque 1
Minimum torque 1 0 (minimum torque limit defined by 30.19 is active). 0
Minimum torque 2
source
1 (minimum torque limit selected by 30.21 is active). 1
DI1 Digital input DI1 (10.02 DI delayed status, bit 0). 2
DI2 Digital input DI2 (10.02 DI delayed status, bit 1). 3
DI3 Digital input DI3 (10.02 DI delayed status, bit 2). 4
DI4 Digital input DI4 (10.02 DI delayed status, bit 3). 5
DI5 Digital input DI5 (10.02 DI delayed status, bit 4). 6
DI6 Digital input DI6 (10.02 DI delayed status, bit 5). 7
DIO1 Digital input/output DIO1 (11.02 DIO delayed status, bit 0). 10
DIO2 Digital input/output DIO2 (11.02 DIO delayed status, bit 1). 11
Other [bit] Source selection (see Terms and abbreviations on page 148). -
No. Name/Value Description Def/FbEq16
30.21
User-defined
minimum torque
limit
0
AI1
AI2
PID
30.23
Other
0
AI1
AI2
PID
30.24
Other
30.19
30.22
30.18
0
1
30.20
30.25
0
1
User-defined
maximum torque
limit
