ABB ACS880-104

Quick start-up guide 33

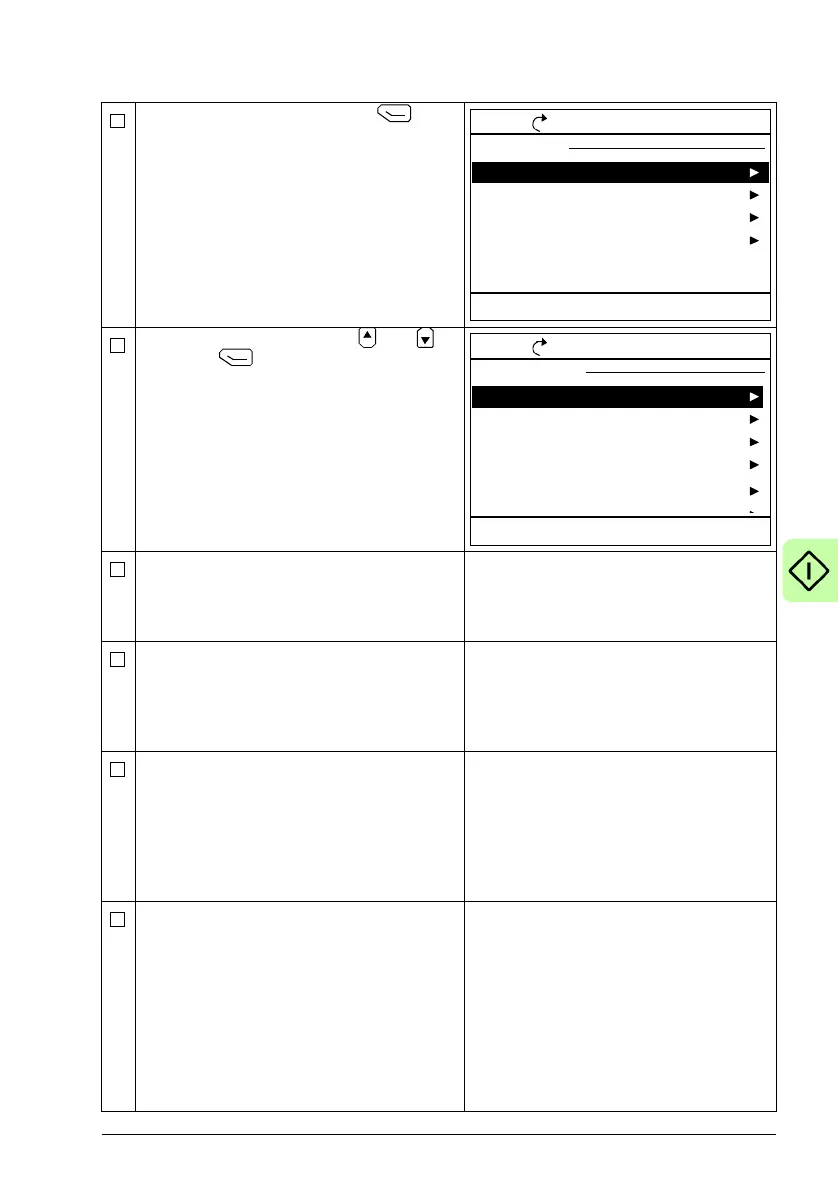

Highlight Parameters and press
(Select).
Highlight Complete list using and
and press (Select).
A listing of parameter groups is displayed.
Select motor type.
Note: ESP control program supports
Asynchronous and Permanent Magnet
Synchronous motors.
99.03 Motor type
Verify used Motor control mode.
Note: ESP application requires SMC control
mode selection, DTC mode can be used only
in cases where no step-up transformer is
needed between drive and motor.
99.04 Motor control mode
Set motor nominal current.
Note: If step-up transformer is in use, then
nominal current setting in the drive is always
calculated for the primary side of the
transformer, i.e. 99.06 Motor nominal current
= Motor plate nominal current * Transformer
ratio.
99.06 Motor nominal current
Set motor nominal voltage.
Note: For applications with sine filter and
step-up transformer in use, the nominal
voltage setting in the drive is calculated for
the primary side of the transformer with
consideration for the resistive and inductive
losses along the circuit, i.e. 99.07 Motor
nominal voltage = (Motor plate nominal
voltage / Transformer ratio) + circuit voltage
losses (typically ~10%).
99.07 Motor nominal voltage
Local 0.0 rpm
Parameters
Favorites
By function
Back 12:36 Select
Complete list
Modified
Local 0.0 rpm
Complete list
01 Actual values
03 Input references
04 Warnings and faults
05 Diagnostics
06 Control and status words
07 System info
Back 12:36 Select
