Program features 87
Encoder echo and emulation
Both encoder echo and emulation are supported by the above-mentioned FEN-xx
interfaces.
Encoder echo is available with TTL, TTL+ and HTL encoders. The signal received
from the encoder is relayed to the TTL output unchanged. This enables the
connection of one encoder to several drives.
Encoder emulation also relays the encoder signal to the output, but the signal is
either scaled, or position data converted to pulses. Emulation can be used when
absolute encoder or resolver position needs to be converted to TTL pulses, or when
the signal must be converted to a different pulse number than the original.
Load and motor feedback
Three different sources can be used as speed and position feedback: encoder 1,
encoder 2, or motor position estimate. Any of these can be used for load position
calculation or motor control. The load position calculation makes it possible, for
example, to determine the position of a conveyor belt or the height of the load on a
crane. The feedback sources are selected by parameters 90.41 Motor feedback
selection and 90.51 Load feedback selection.
For detailed parameter connections of the motor and load feedback functions, see
the block diagrams on pages 647 and 648. For more information on load position
calculation, see section Position counter (page 88).

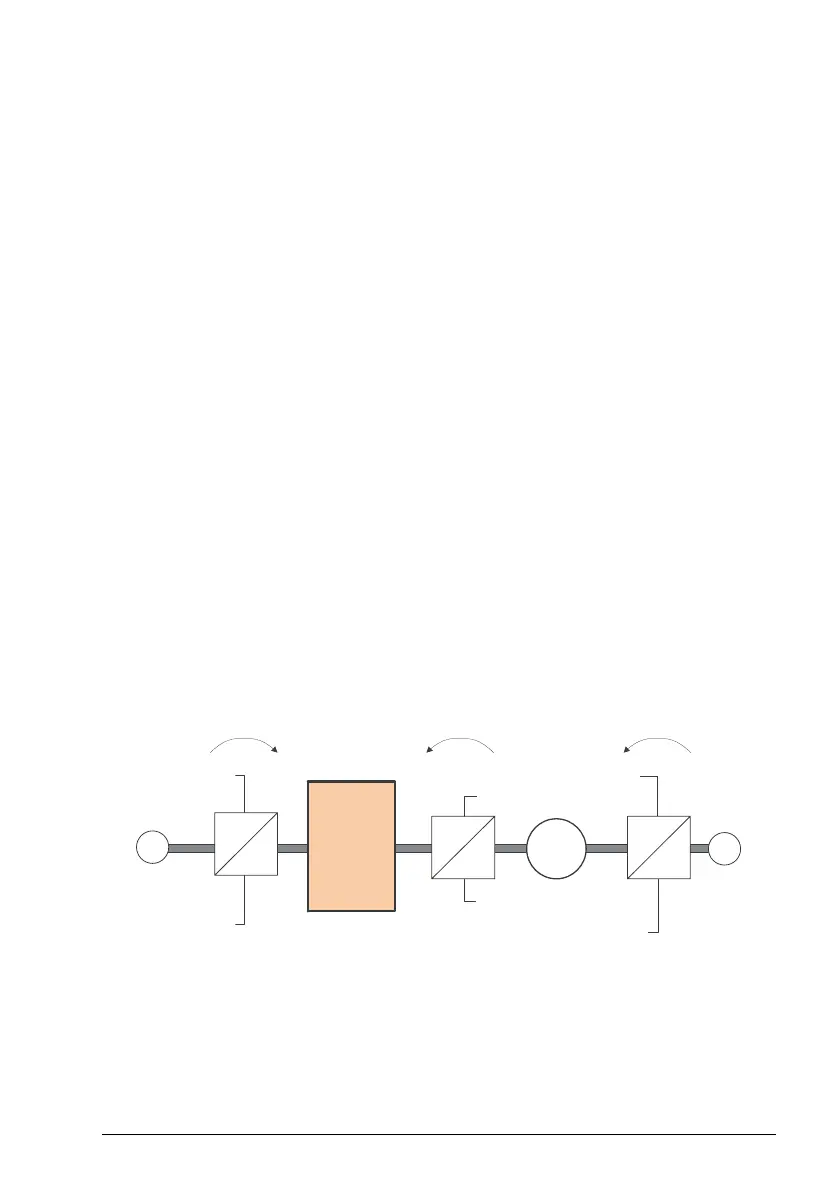

Any mechanical gear ratios between the components (motor, motor encoder, load,
load encoder) are specified using the gear parameters shown in the diagram below.
Any gear ratio between the load encoder and the load is defined by 90.53 Load gear
numerator and 90.54 Load gear denominator. Similarly, any gear ratio between the
motor encoder and the motor is defined by 90.43 Motor gear numerator and
90.44 Motor gear denominator. In case the internal estimated position is chosen as
load feedback, the gear ratio between the motor and load can be defined by
90.61 Gear numerator and 90.62 Gear denominator. By default, all of the ratios
Load encoder to load
scaling
Load encoder
Load
90.43
90.53
90.44
90.54
90.62
90.61
M
Motor
encoder
Motor to load scaling Motor encoder to motor
scaling
