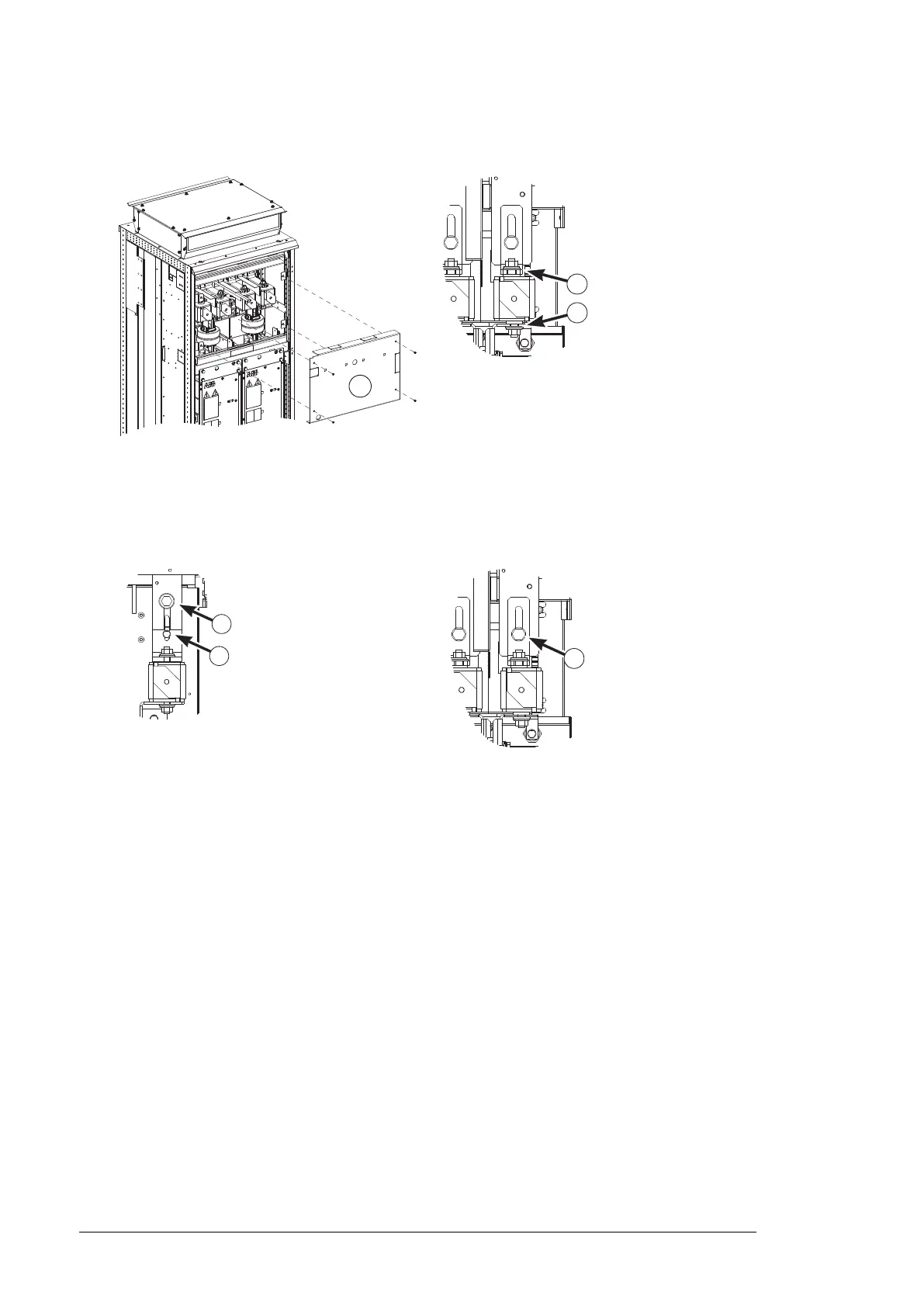

3. Loosen the nuts (b) of the blown fuse.
b
b
a
4. Loosen the mounting screws of the top busbar (c) so that you can adjust the gap for
the fuse block.
With DC switch (+F286)
c
Without DC switch
c
c
5. Slide out the fuse block.
6. Move the screws, nuts and washers from the blown fuse to the new fuse. Make sure to
keep the washers in the original order.
Note: See the technical data for a table of recommended fuses.
7. Insert the new fuse block into its slot. Tighten both nuts of the fuse only until there is no
play between the fuse and the busbars.
126 Maintenance
