￭ Inverter module frame size R5i
General
The motor (output) cables are connected to either detachable or non-detachable screw
terminal blocks at the bottom of the cubicle. The modules have a built-in ZCU drive control
unit, which contains the basic I/Os and slots for optional I/O modules.
The modules have an internal capacitor precharge circuit.
External optional equipment is primarily installed on mounting plates in the same cubicle.

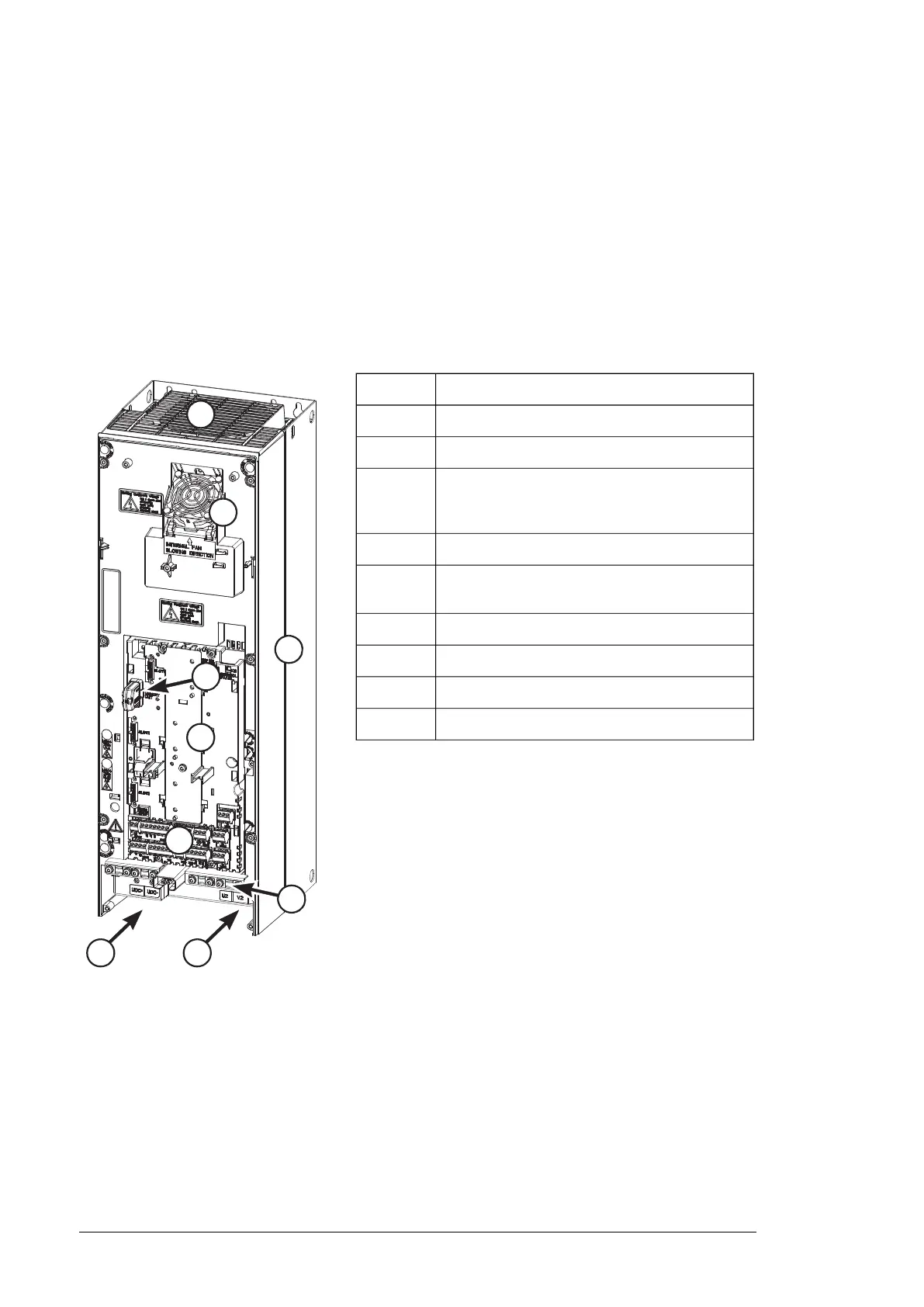

Module layout
ExplanationItem
Power unit1
DC (input) connection2
Motor (output) connection. This has been wired to
a separate terminal block in the lower part of the
cubicle.
3
Control cable clamps4
ZCU-12 control unit. The control unit has three slots
for optional modules.
5
I/O terminal blocks6
Memory unit7
Main cooling fan8
Auxiliary cooling fan9
Standard cabinet layout
Several inverter modules of frame size R5i can be installed in one cubicle. The standard
cubicle widths are 300 (check availability with ABB) and 500 mm. The number of modules
that can be fitted into the cubicle also depends on the optional equipment selected.
Each module has dedicated DC fuse disconnectors. The motor (output) connections are
detachable plug connectors located at the lower part of the cubicle.
The cubicle is equipped with cable entries at the floor.
The picture below presents an example of a 500 mm wide cubicle with four R5i modules.
22 Hardware description
