ABB ACS880-107 Series

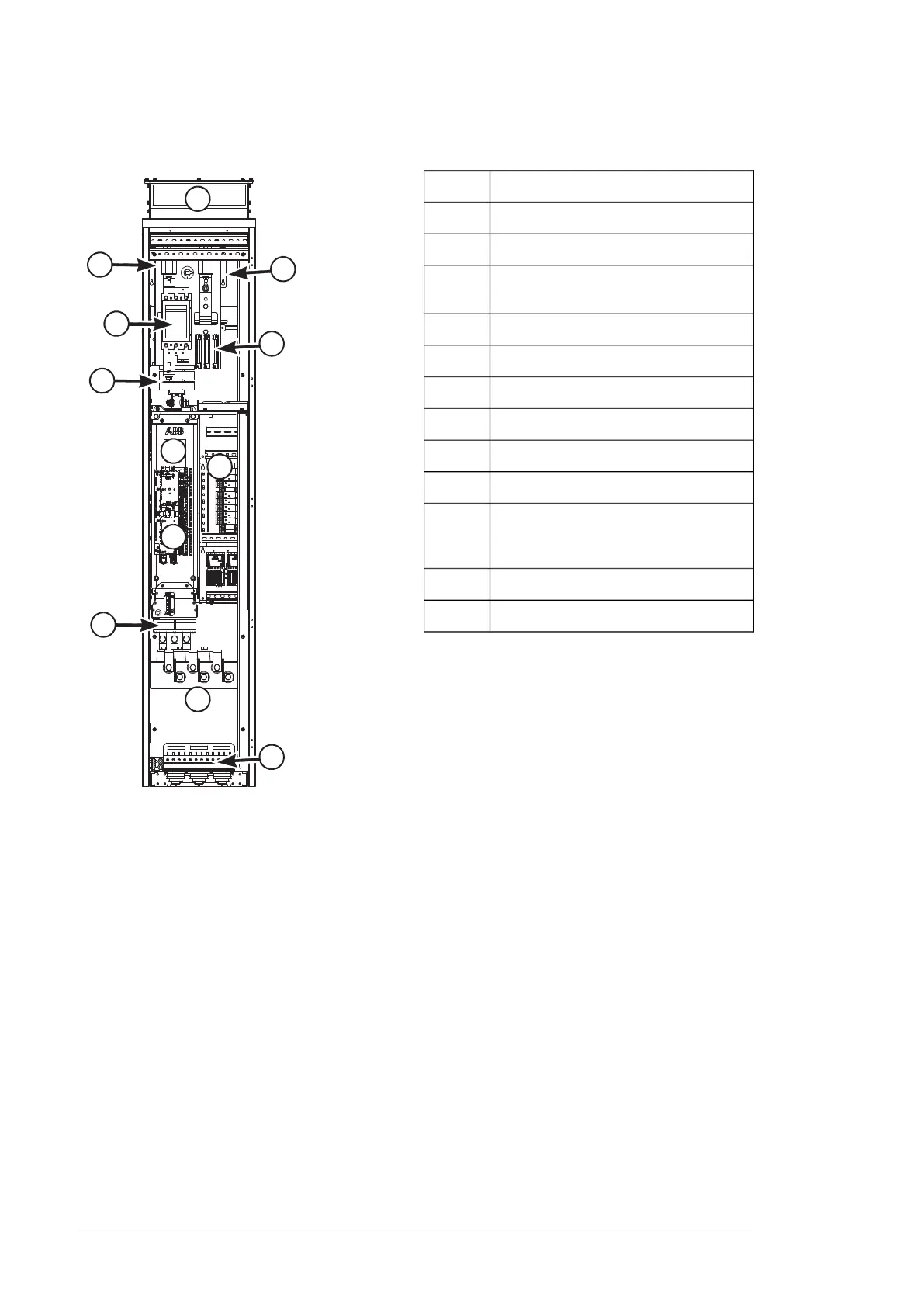

The picture below presents an example of a cubicle with an R6i/R7i inverter module.
ExplanationItem
Air outlet1
DC fuses2
DC switch-disconnector (behind DC fuses
and mounting plate) (optional)
3
Charging contactor (R7i only) (optional)4
Charging resistors (R7i only) (optional)5
Common mode filters6
Inverter module7
Inverter module cooling fan(s)8
Control unit9
Control voltage circuit components, install-
ation space for other equipment such as
relays
10
Output busbars11
Cable entries12
3
1
7
10
9
11
8
2
4
5
6
12
Motor cabling
The motor cables are connected to the output busbars at the bottom of the cubicle. For top
exit, the depth of the cabinet is increased by 130 mm.
