Removing the fan carriage of an inverter module

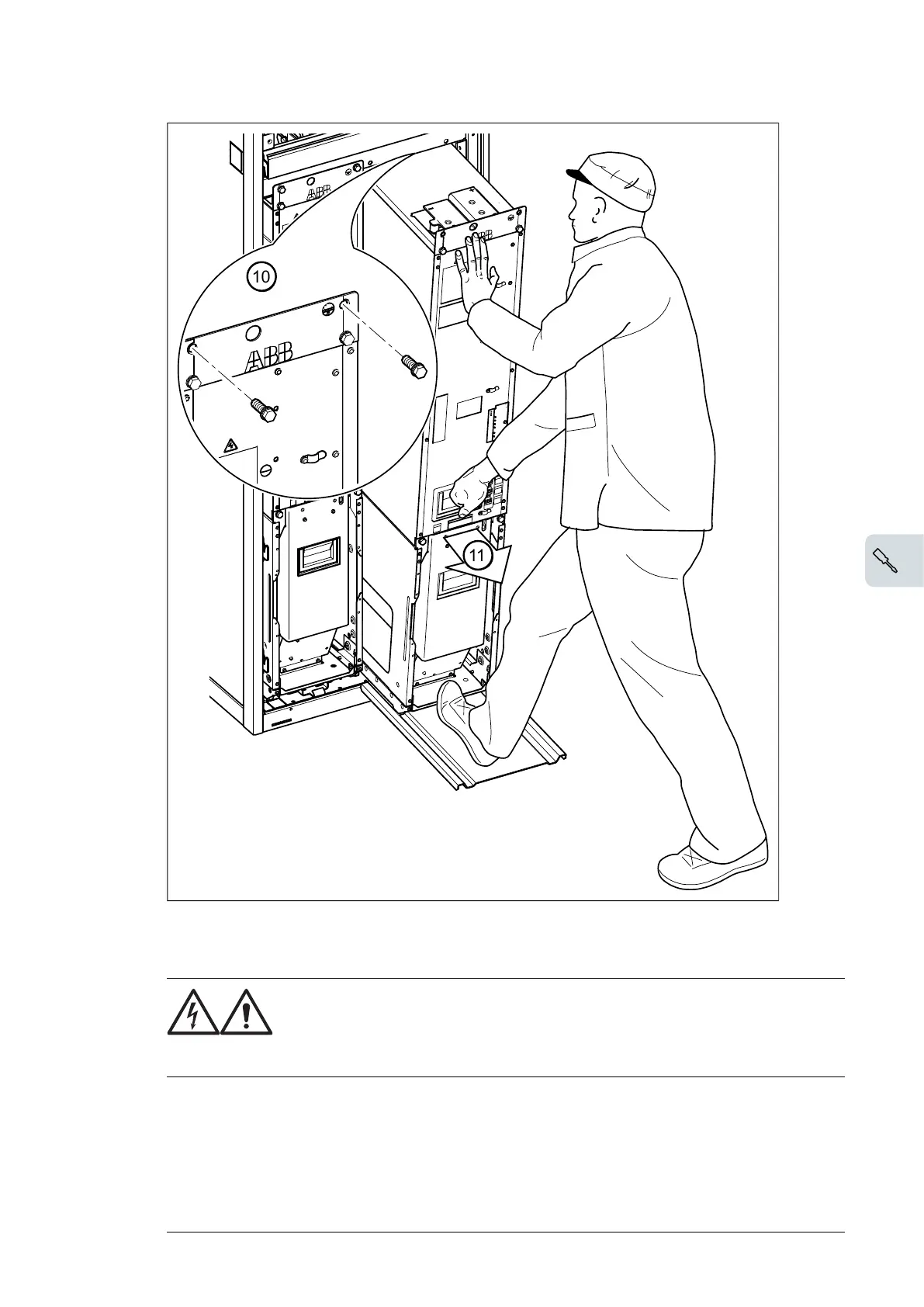

Refer to the drawings below.
WARNING!
Read the safety instructions given in Safety instructions for ACS880
multidrive cabinets and modules (3AUA0000102301 [English]). If you
ignore them, injury or death, or damage to the equipment can occur.
1.
Do the steps in section Electrical safety precautions (page 57) before you start the work.
2. Open the inverter module cubicle door.
3. Remove the screws holding the front cover plate. Lift the cover plate somewhat to
release it.
4. Disconnect the wiring at the top of the fan carriage.
