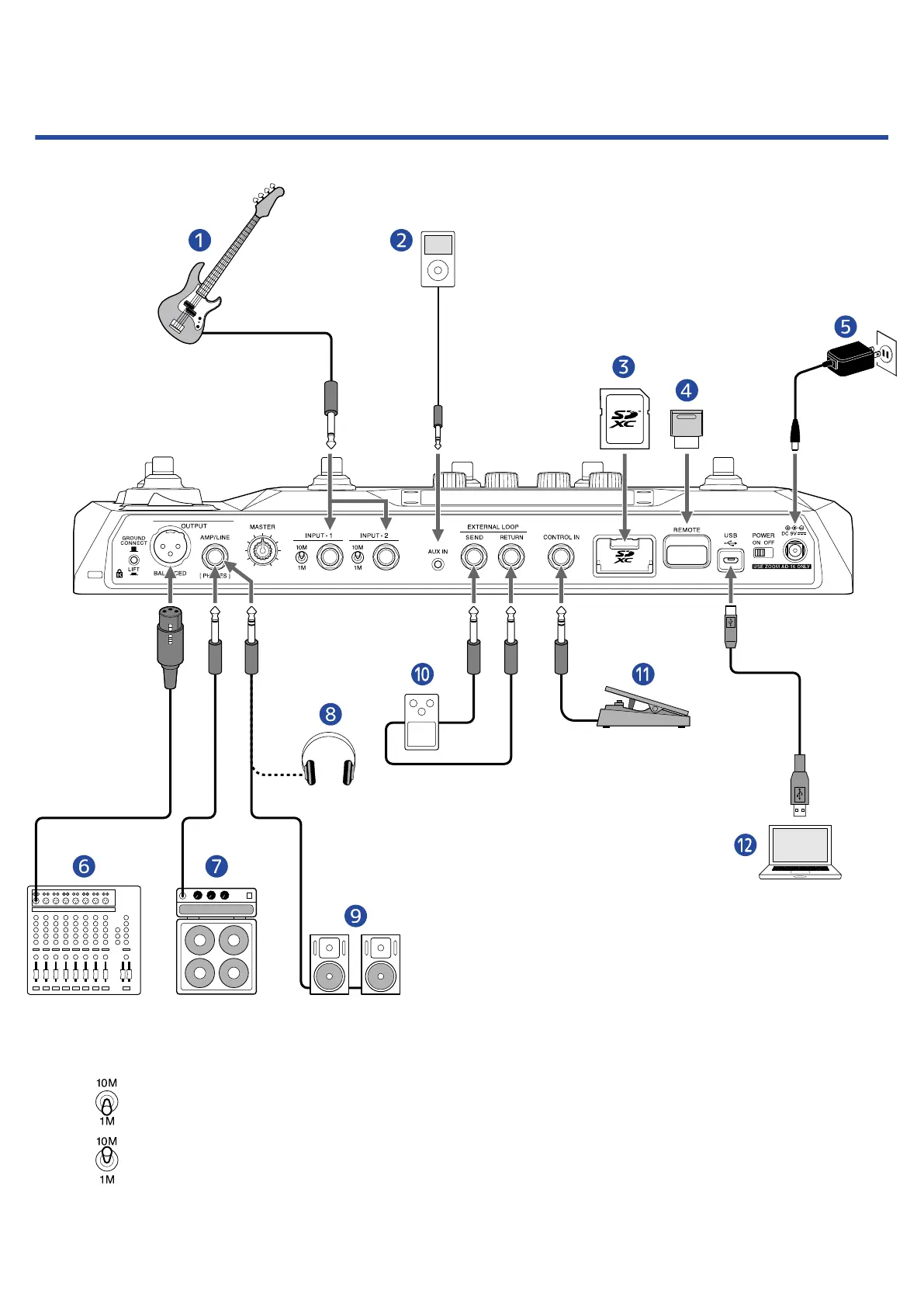

Making connections

USB (Micro-B)

ZOOM FP02M

ZOOM AD16

❶

Bass

Connect to the INPUT

１

or INPUT 2 jack. Set the impedance selection switch to suit the connected bass.

• Use with ordinary electric basses

• Use with acoustic basses that have piezo pickups
