ACUTRONIC fabian +nCPAP evolution User Manual

12 3 System overview
fabian +nCPAP evolution | SW V5.1.x
Ref: 122003.EN / Date : 26Jan2021
3.4.2 Devices with DC connector (up to SN AN-03999)

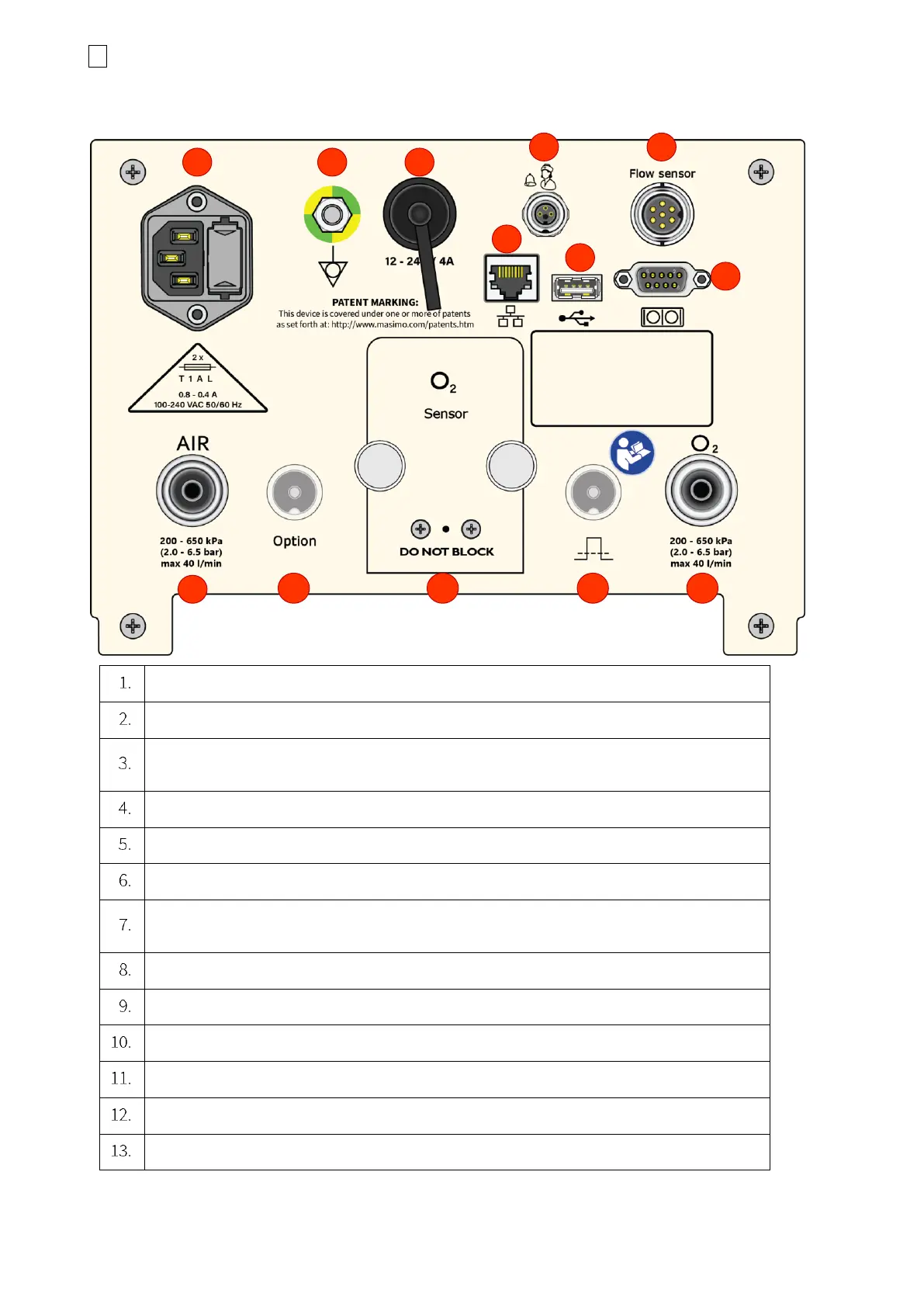

Mains connection with fuse holder
Terminal studs for potential equalization
Connection for external voltage supply 12 – 24V DC
With HW Rev. 1.0 use only with connection cable Part. No. 151401
Nurse call connector, max switching voltage 30 VDC
Flow sensor connector
Network connection for data management (disabled)
USB connection for data output, Software update. Connector for Masimo SpO2
module.
RS232 interface, service, PDMS
Connection for compressed air supply 2.0 – 6.5 bar / max 40 L/min
Connection for future use, covered with a faceplate
Oxygen sensor
Connection for future use, covered with a faceplate
Connection for oxygen “O
2
” supply 2.0 – 6.5 bar / max 40 L/min
1
2
3
4
5
6
7
8
9
10
12
13
11
