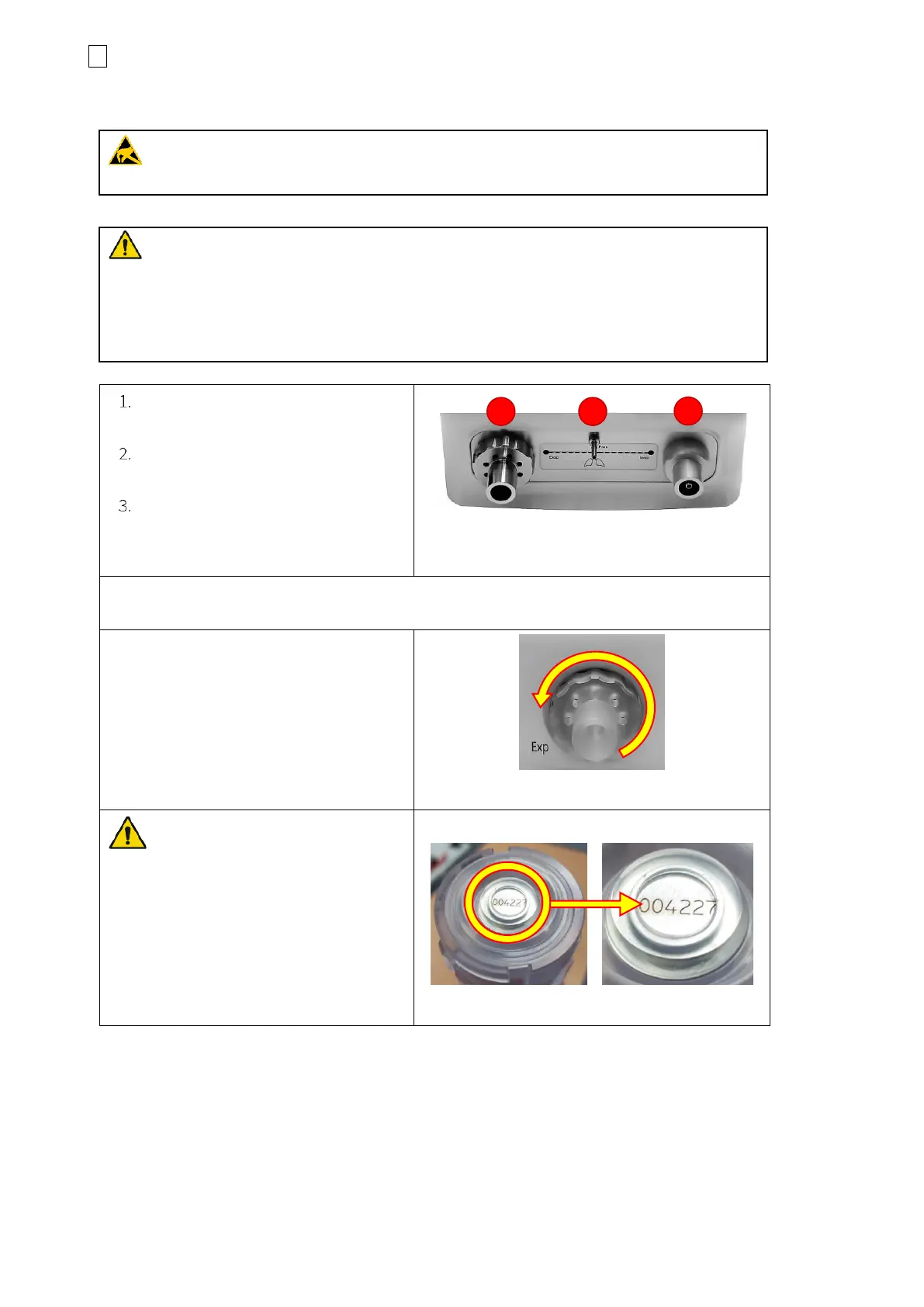

5.1.3 Connect the tubing set
WARNING: ELECTRICAL HAZARD
NEVER use anti-static or electrically conductive tubes.
WARNING:
The pressure gradient of the fabian ventilator system is measured at the patient
connection port and can increase when accessories or other components are attached to
the system.
Change in pressure gradient can adversely affect the performance of the fabian system.
Connect Inspiratory tube to Insp.
port. (1)
Connect Expiratory tube to Exp.
port. (3)
Connect Pressure measuring tube
to Prox. port. (2)
Figure 5-1: fabian Front connections
NOTE: Always hold tubes by the collar when connecting and disconnecting to prevent
damage.
The Expiration membrane can be easily
removed by turning the membrane
holder counterclockwise.
Figure 5-2: Membrane holder
Pay attention to the correct
installation position of the Expiration
Membrane.
The labeling must be legible upon
installation.
(See illustration).
Figure 5-3: Expiration membrane
