 11.15 AI2 (OI) source max
Range: 0.00 ~ 100.0 % in 0.01 %
Initial value: 100.0 %
Defines the maximum site value for analog input AI2 (OI)
Set the value actually sent to the drive when the analog signal from plant is wound to its
maximum setting.
 11.16 AI2 (OI) scaled at AI2 min
Range: 0.00 ~ 400.0 Hz in 0.01 Hz - Frequency
Range: 0.0 ~ 100.0 % in 0.1 % - PID
Initial value: 0.00 Hz
Defines the real internal value that corresponds to the minimum analog input AI2 value
defined by parameter '11.14' (AI2 source min)

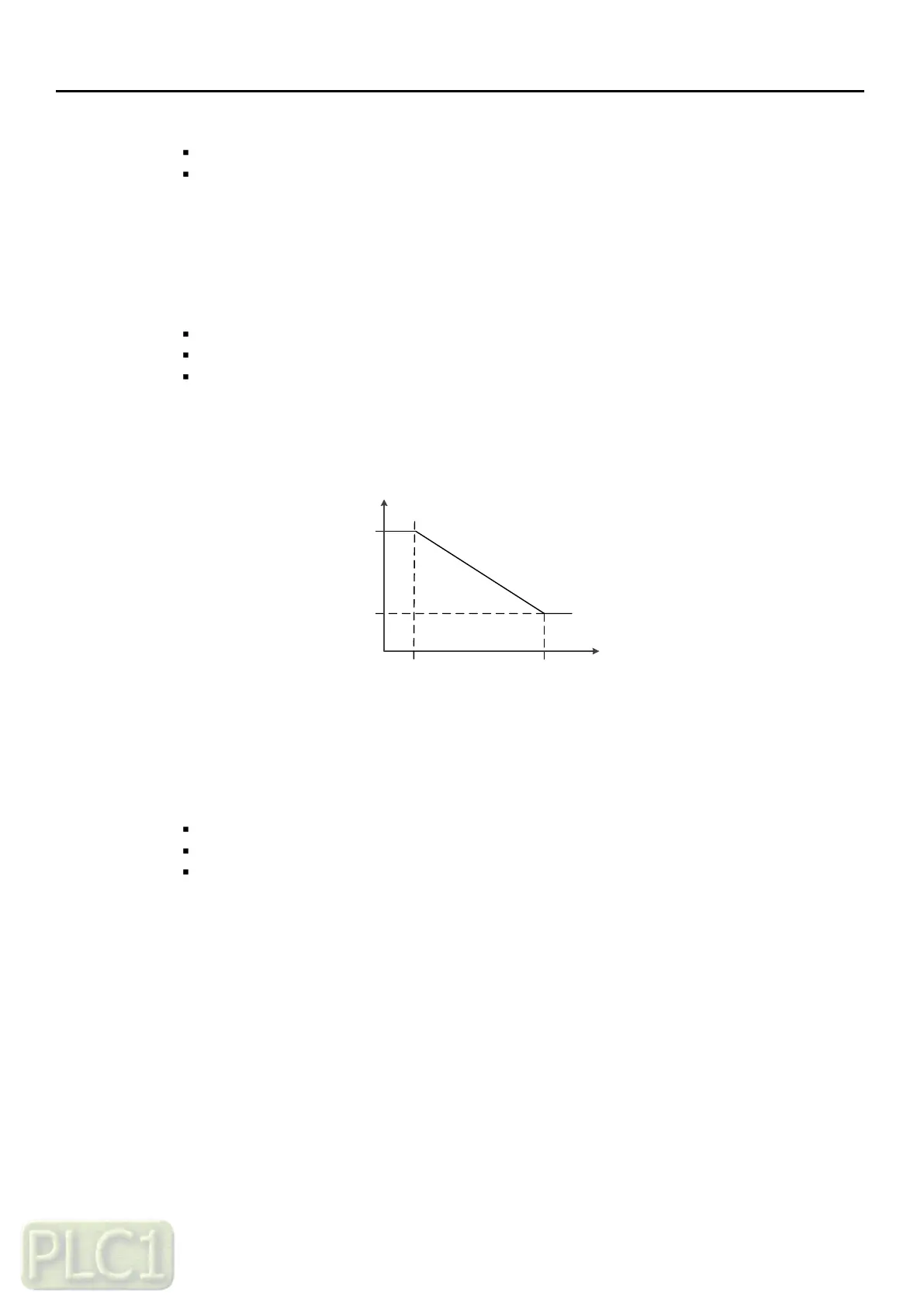

11.17 (AI2 scaled at AI2 max)
11.11 (AI2 scaled value)
11.10 (AI2 actual value)
11.16(AI2 scaled at AI2 min)
11.14 (AI2 source min) 11.15 (AI2 source max)
 Changing the polarity settings of '11.16' (AI2 scaled at AI2 min) and
'11.17' (AI2 scaled at AI2 max) can effectively invert the analog input
 11.17 AI2 scaled at AI2 max
Range: 0.00 ~ 400.0 Hz in 0.01 Hz - Frequency
Range: 0.0 ~ 100.0 % in 0.1 % - PID
Initial value: 60.00 Hz
Defines the real internal value that corresponds to the maximum analog input AI2 value
defined by parameter '11.15' (AI 2 source max)
