8.2.12 Acceleration/Deceleration
 23.03 Ramp set selection
0: Acc/Dec time 1 ----- Initial value
1: Acc/Dec time 2
2: Frequency
3: DI1
4: DI2
5: DI3
6: DI4
7: DI5
8: DI6
9: DI7
10: DI8
 Set 0: Acc/Dec time 1
It uses the time '23.04' (Acceleration time 1) and ' 23.05' (Deceleration time 1)
 Set 1: Acc/Dec time 2
It uses the time '23.06' (Acceleration time 2) and '23.07' (Deceleration time 2)
 Set 2: Frequency

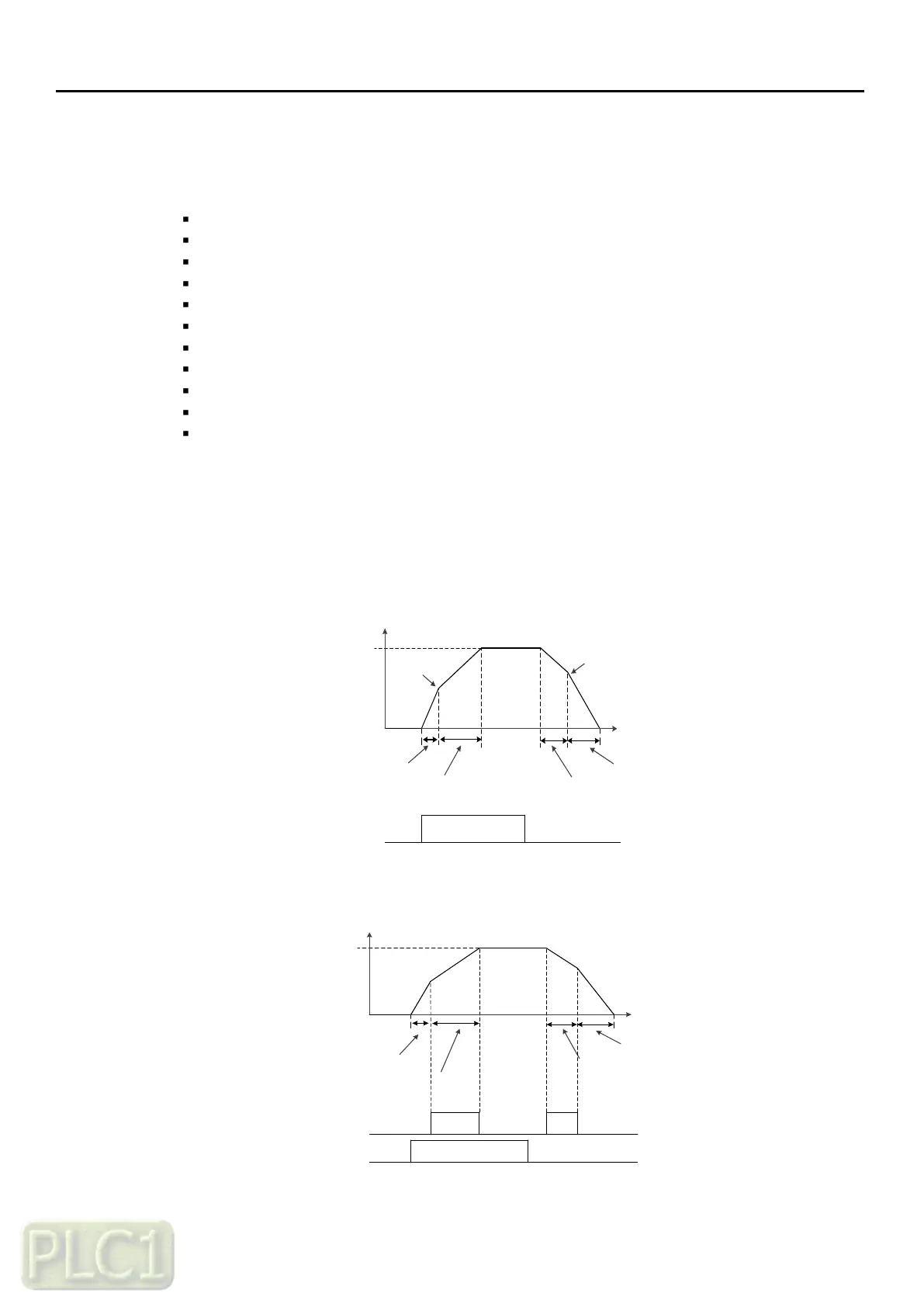

It changes by the frequency as below picture
23.06 (Acceleration time 2)
30.01 (Maximum frequency)
23.07 (Deceleration time 2)
23.05 (Deceleration time 1)
ONOFF
OFF
23.04 (Acceleration time 1)
23.10 (Acceleration time transition frequency)
23.11 (Deceleration time transition frequency)
FW
t
F(Hz)
 Set 3~10 : DI1~ DI8
It changes by the digital input as below picture
ON
OFFFW
t
ON
OFF23.03(Ramp set selection) = 3~10
ON
F(Hz)
OFF
30.01 (Maximum frequency)
23.04 (Acceleration time 1)
23.06 (Acceleration time 2)
23.07 (Deceleration time 2)
23.05 (Deceleration time 1)
