8.2.30 Motor data
 99.01 Motor capacity
2.2kW, 3.7kW, 5.5kW, 7.5kW, 11kW, 15kW, 18,5kW, 22kW, 30kW, 37kW, 45kW, 55kW
75kW, 90kW, 110kW, 132kW, 160kW, 200kW, 220kW, 250kW, 280kW, 320kW, 350kW
Initial value: depend on VFD models
Program a capacity of motor
Ex) 30L: 30kW-200V, 30H: 30kW-400V
 99.02 Motor rated voltage
200V Class setting: 200/220/230/240
400V Class setting: 380/400/415/440/460/480
Initial value: depend on VFD models
Program a rated voltage of the motor nameplate

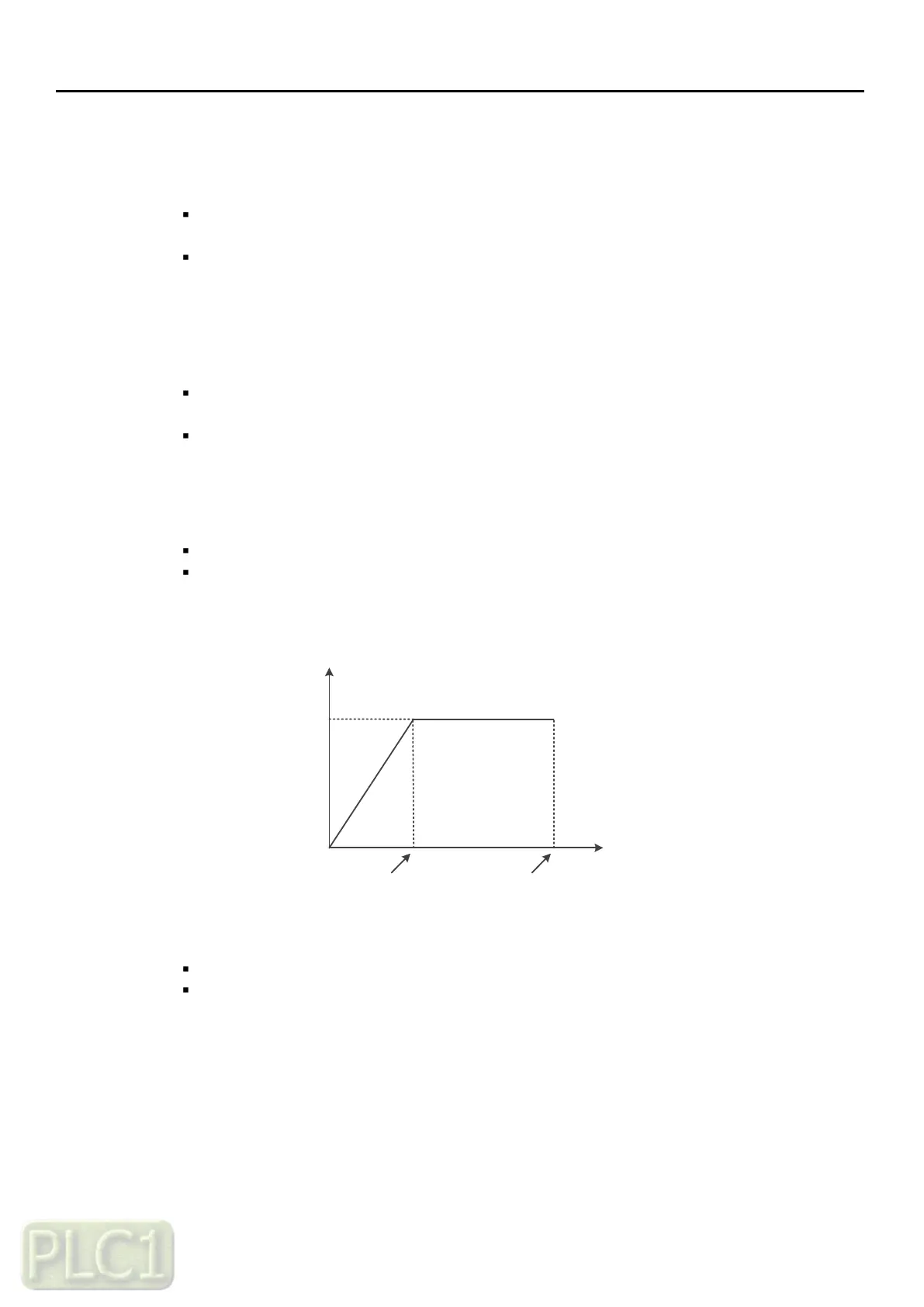

 99.03 Motor rated frequency
Range: 0.00 ~ 400Hz in 0.01 Hz
Initial value: 60.00 Hz
Program a rated frequency of the motor nameplate
100 %
V
99.03 (Motor rated voltage)
F(Hz)
30.01 (Maximum frequency)
 99.04 Motor rated current
Range: 0.1 ~ 800.0 A in 0.1 A
Initial value: depend on VFD models
Program a rated current of the motor nameplate
