8.2.16 DWELL
The DWELL function temporarily holds the frequency reference at a predefined value for a set
time then continues accelerating or decelerating.
The DWELL function helps prevent speed loss when starting and stopping a heavy load with
induction motors. When running a PM motor in V/f control, the pause in acceleration allows
the PM motor rotor to align with the stator field of the motor and reduce the starting current.

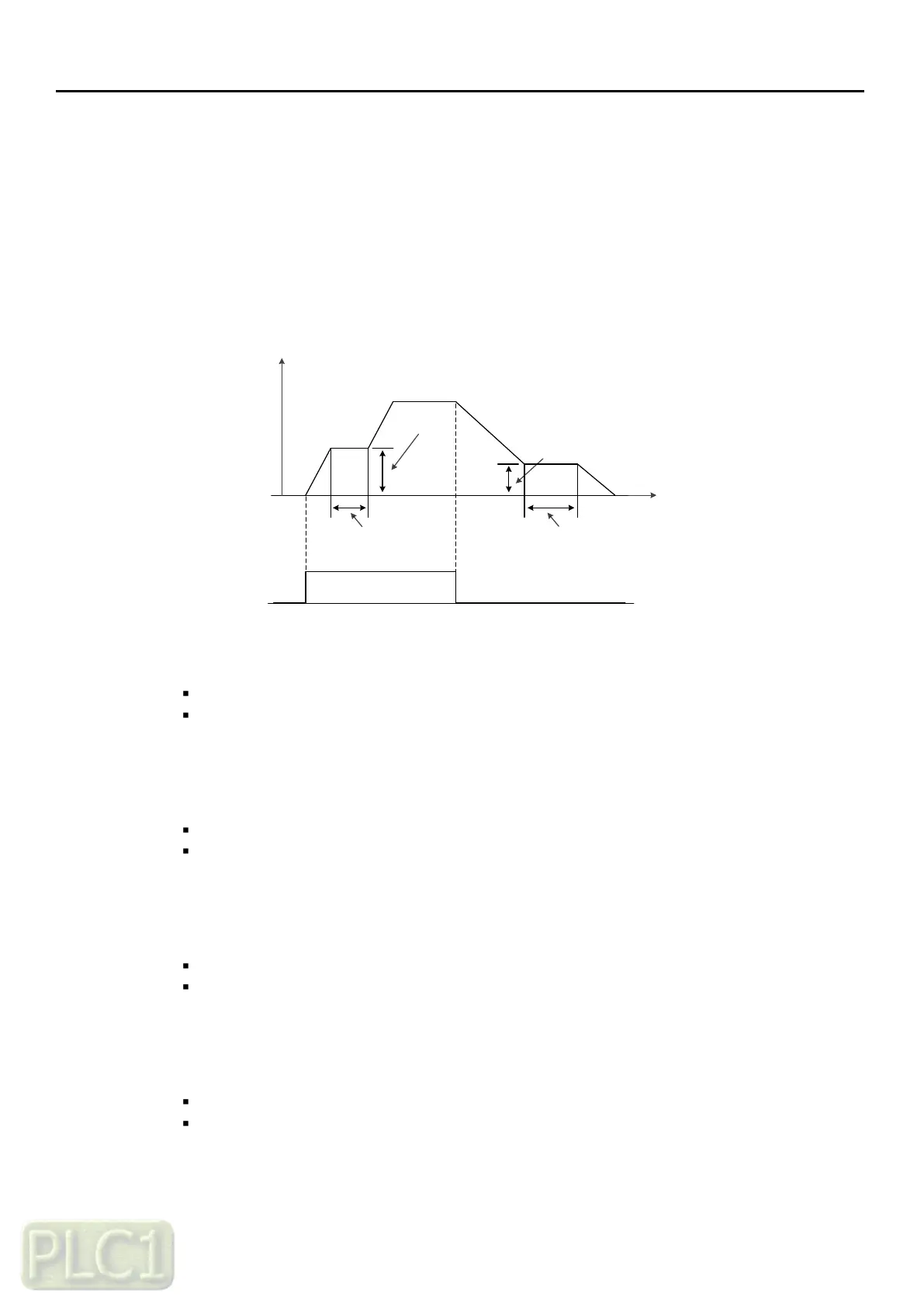

27.02 (DWELL time at start)
27.01 (DWELL reference at start)
27.03 (DWELL reference at stop)
27.04 (DWELL time at stop)
ON
F(Hz)
t
Run command
 27.01 DWELL reference at start
Range: 0.00 ~ 400.0 Hz in 0.01
Initial value: 0.00 Hz
Program DWELL frequency at start
 27.02 DWELL time at start
Range: 0.0 ~ 10.0 Sec in 0.1
Initial value: 0.0 Sec
Program DWELL time at start
 27.03 DWELL reference at stop
Range: 0.00 ~ 400.0Hz in 0.01
Initial value: 0.00 Hz
Program DWELL frequency at stop
 27.04 DWELL time at stop
Range: 0.0 ~ 10.0 Sec in 0.1
Initial value: 0.0 Sec
Program DWELL time at stop
