6. Keypad
6.1 Keypad View & Operation
6.1.1 Keypad View
Standard Keypad is used in VFD parameter setting, Monitor display and VFD operations.

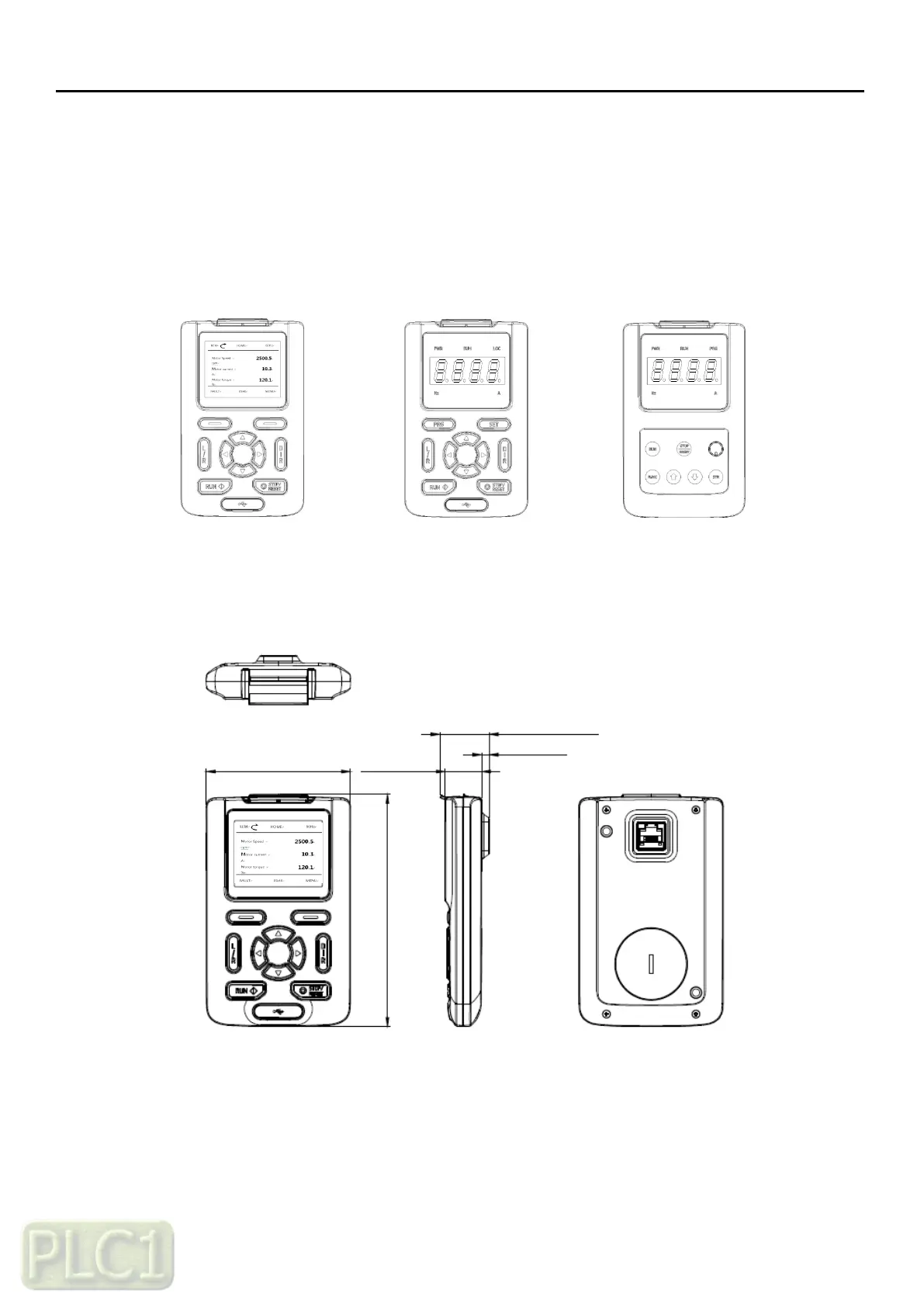

1) Dimensions - LCD TYPE
80.5(3.17") [W]
Unit : mm(inch)
129.6(5.10") [H]
20.3(0.80")
4.3(0.17")
27.5(1.08") [D]
LED TYPE
LCD TYPE
LED-knob TYPE
