TestPro CV100
User Manual
OntheTestPromainscreen,select[CableCertication].
The wiremap will show pin 4 to be in disconnected state.
Select either [Autotest] or the wiremap screen to start
LiveWiremap.
LiveWiremap will display the distance to fault measurement.
•
•
•
c.CableSetReference
Set reference is necessary for accurate measurement of
resistance, delay and insertion loss. It must be performed
when a main TestPro unit is paired with a remote TestPro
unit for therst time orwhen one or more adapters are
replaced with a new one. If a copper Autotest yields results
with unusually high resistance measurements, this is often
an indication that a set reference is required.

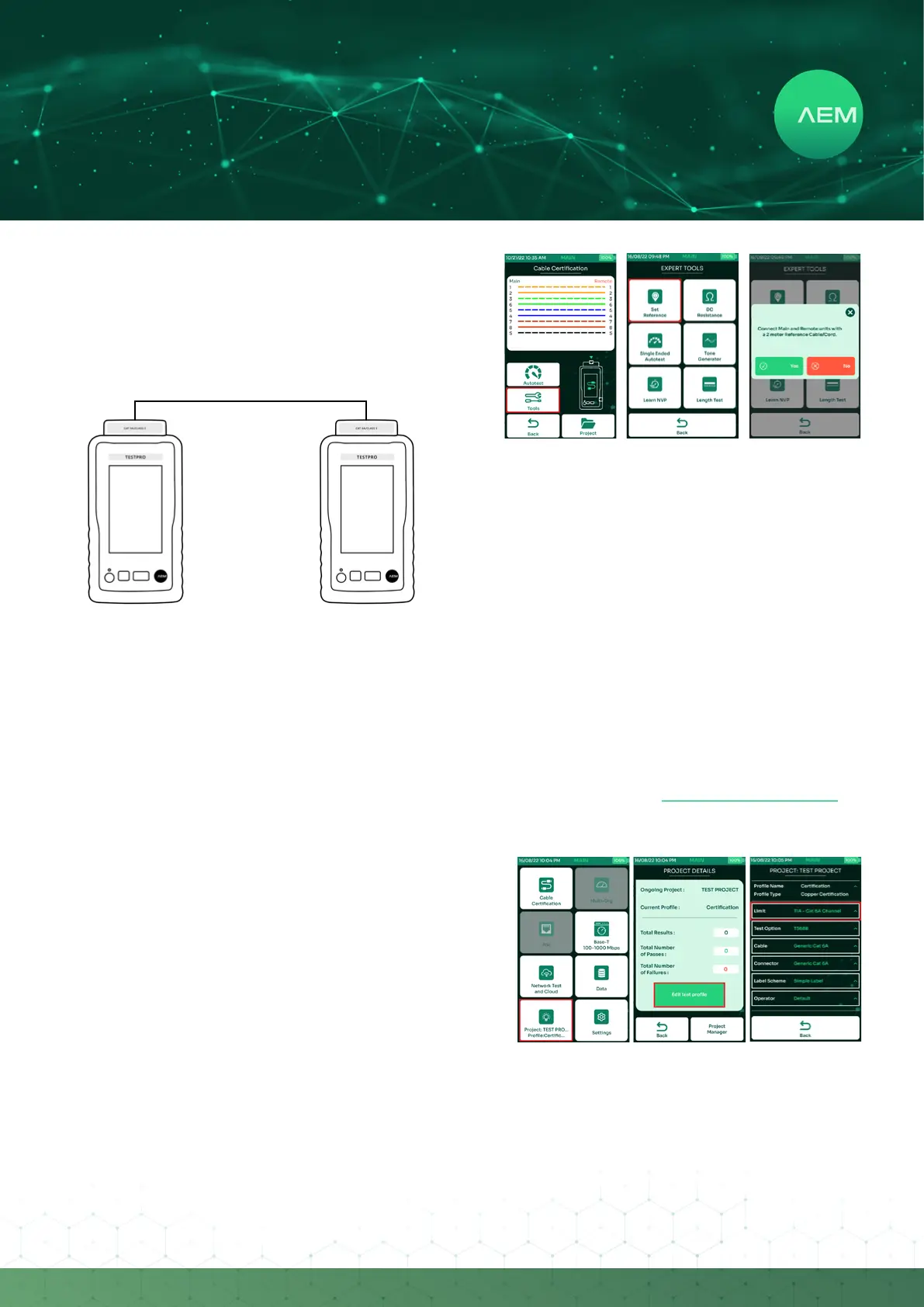

Attach a CAT6A permanent link adapter to the remote
TestPro unit with one end of the cable connected to it,
and the other end of the RJ45 jack of the CAT6A channel
adapter attached to the main TestPro unit to perform set
reference.
Note: If the cable is faulty, set reference and measurement
results will be aected. Set Reference using an AD-NET-
CABLE adapter, or a patch cord adapter should be avoided.
Set reference has already been performed before shipping
the product, therefore it is not necessary to perform it again
when the product is received.
Main
Remote
• The set reference utility can be accessed through
[Tools].Select[Tools]toperformthetask.
Select[SetReference].
A dialog box will conrm that a 2-meter reference
cable/cord is attached to main and remote devices.
Select[Yes].
•
•
Note: It is not required to perform set reference every
day as TestPro is designed to ensure measurement
stability. However, if it is the company’s best practice to
do so, user can choose to do so.
d. Cable Test Limit
Choosing the test limit is a very important step to copper
cablecertication.It determinesthe cablestandardsused,
cable type and the adapter used during testing. ISO IEC and
TIA are the widely used standard limits. Users can create
customized limits and upload these limits to the device.
Contact AEM support at customercare@aem-test.com for
assistance in creating a custom limit.
i:SelectTestLimit
• Select[Project]onthehomescreentochooseanactive
test project.
Select[Edittestprole]toupdatethetestprole.
Select[Limit]tochangethetestlimit.
•
•
