TestPro CV100

User Manual

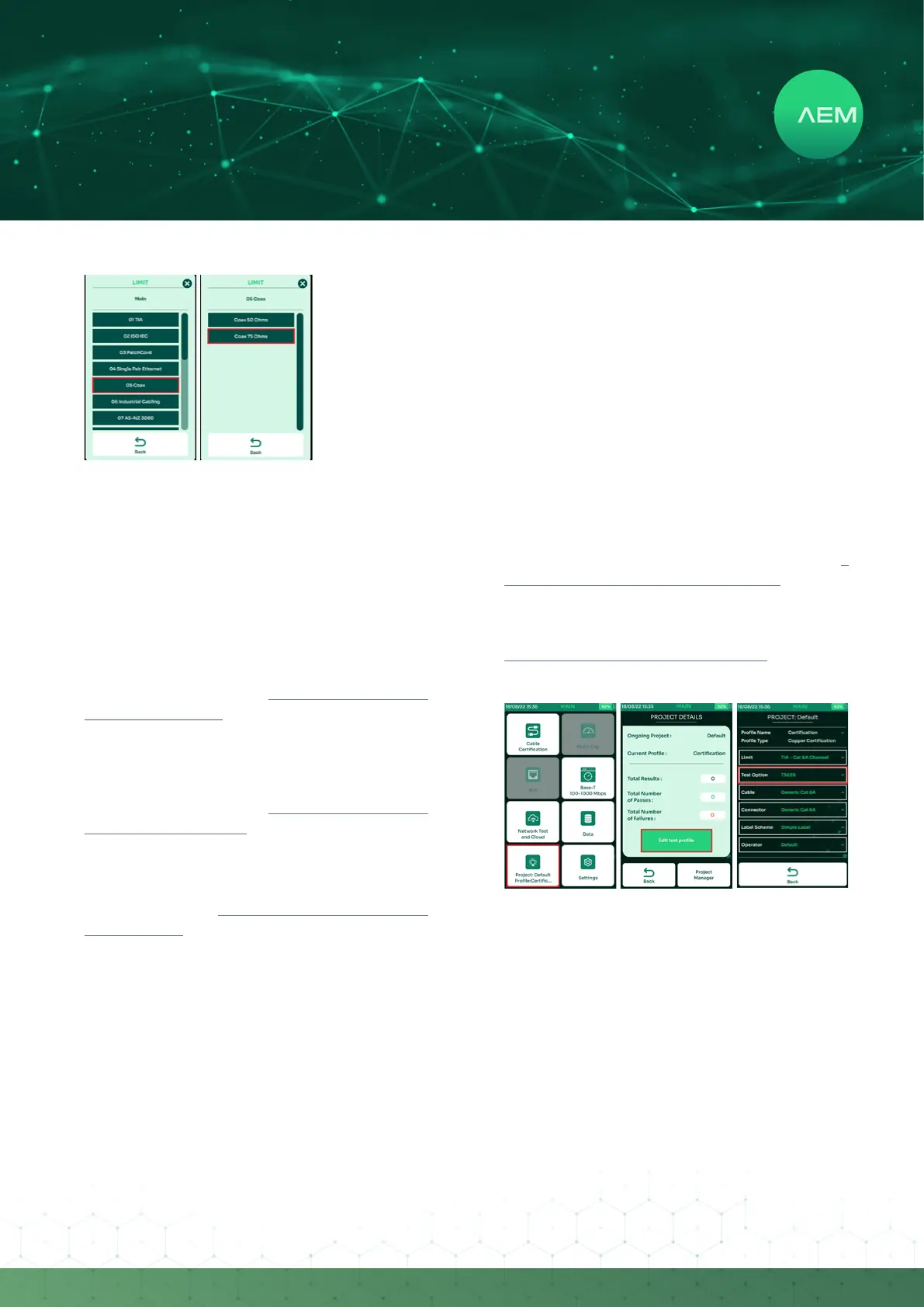

Select[COAX].

If the cable under test is COAX 50 Ohms, select

[Coax50Ohms]limit.IfthecableundertestisCoax

75 Ohms, select [Coax 75 Ohms] limit. Customized

limits can be created. Contact AEM support @

customercare@aem-test.com for assistance.

•

c.CoaxCables&Connectors

To choose a cable and connector for Coax, make sure that

coax cable and coax connector are selected under Generic

Shielded cable and connector.

For more information, refer to: 2CableCerticationTeste.

Cables and Connectors

d. Performing Coax Autotest

Attach a Coax adapter to TestPro main and remote units

andselect[Autotest].

For more information, refer to: 2CableCerticationTesth.

Performing Cable Autotest.

e. Save Autotest Results

Saving Coax Autotest result is the same as saving a cable

test result. Refer to 2 Cable Certication Test i. Save

Autotest Results.

7CrossoverCableCerticationTest

As a multi-function cable tester, TestPro supports copper

certicationusingdierentcablewiringcongurationlikeT568A,

T568B (default selection), Crossover, 1000BASE-T Crossover and

2-Pair Crossed.

a.CrossoverSetReference

Set Reference using a crossover cable and wiring option

is no longer necessary when a 4-Pair straight cable

(T568A and T568B) is already completed before shipping

the product. AEM recommendation is to perform set

reference using T568A or T568B wiring option when the

test adapter has changed or one of the TestPro units has

been replaced.

For more information about Set Reference, refer to: 2

CableCerticationTestc.CableSetReference.

b. Cable Test Limit

For more information about selecting a test limit, refer to:

2CableCerticationTestd.CableTestLimit.

c.TestOption

Setting the wiring option is critical for crossover cable

testing. This section is only applicable for 2-Pair and 4-Pair

twisted pair.

Select[Project]/[Prole]onthehomescreentocreate/

edit a project. Once a project is selected, subsequent

Autotest results will be saved there.

Select [Edit test prole] to update the test prole.

Select[TestOption].

•
