customercare@aem-test.com | Version # : 2.2
TestPro CV100
User Manual
•
•

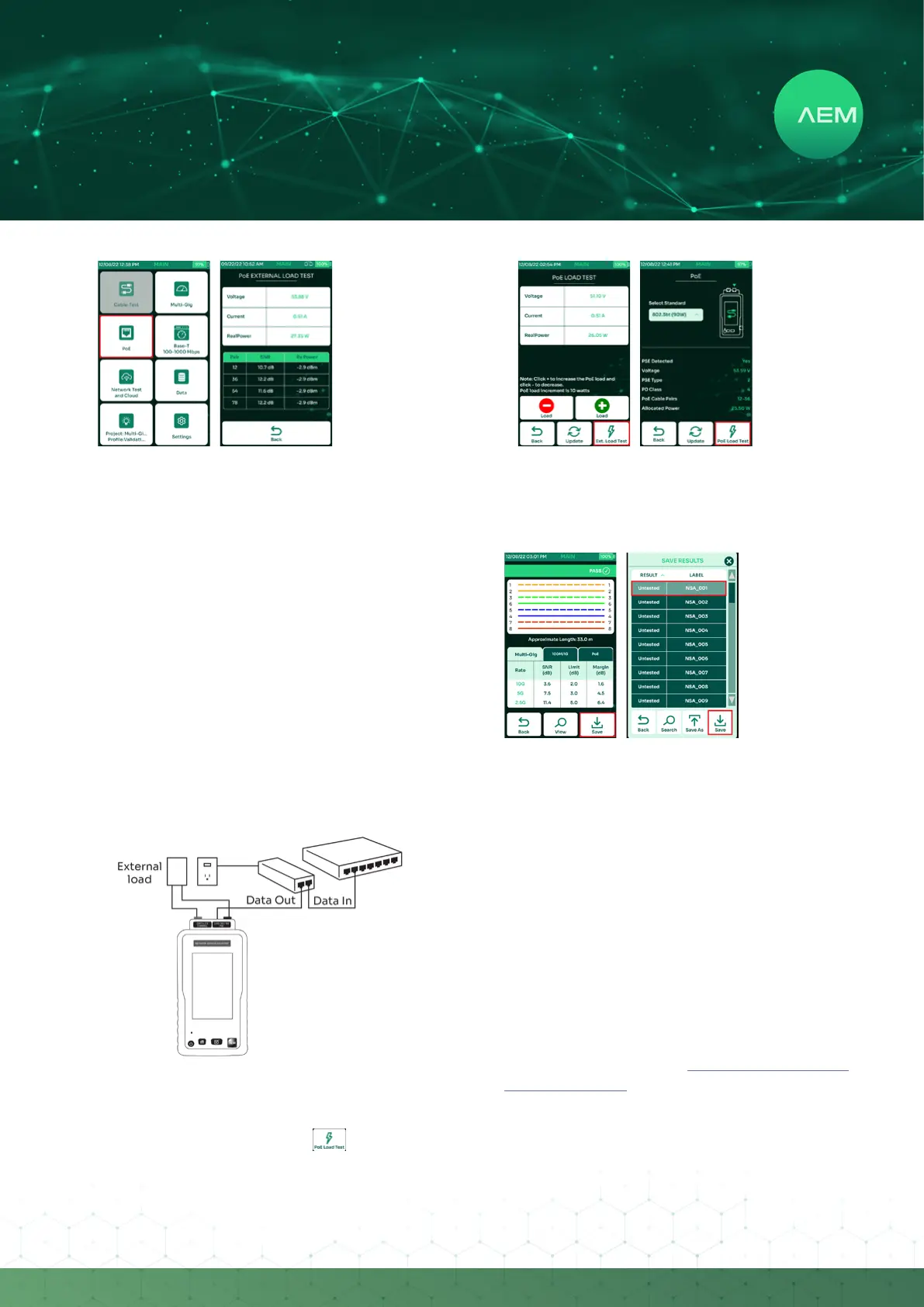

ToperformaPoEtest,select[POE]onthehomescreenof
the TestPro unit.
On the PoE test screen, choose the expected PoE standard.
The PoE test screen will also list the actual PoE type,
voltage and power level. The unit measures power with
actual resistance load connected. PD class is automatically
detected, depending on the selected PoE type. Further
load tests on PoE can be conducted by selecting PoE Load
Test.
iv. PoE Load Test
•
•
External load tests help to qualify link speeds of
2.5Gbps/5Gbps/10Gbps when there is a loaded PoE.
Qualied PoE loads i.e., POE load boxes supplied by
AEM that draw constant power can be connected to the
banana sockets to monitor the Signal SNR in the presence
of loaded POE.
Note: Do not directly short circuit the red & black banana
sockets as this can damage the equipment.
TestPro provides an option to connect to a preferred
external load for continuous loading of PSE. Simply
connect the external load to the TestPro PoE positive (+)
and negative (-) ports and select .
•
Monitor the voltage, current & power levels of the PoE.
For easy reference, the SNR and Rx power per pair will
aslo be displayed.
e. Saving Autotest Data
•
After Autotest completes, TestPro will show the test
results.Select[Save].
Choosefromalistoflabelsandselect[Save].
•
5SinglePairEthernetCerticationTest
Single Pair Ethernet technology has been used in automotive
applications for many years, due to the reduced weight, volume
and low cost. In enterprise building and factory deployments,
SPE is an attractive option due to lighter weight, low cost
and longer distance of up to 1000 meters. SPE will follow a
standardized testing methodology.
a.SPESetReference
Use Single Pair Ethernet or Automotive adapter with
2-meter reference cable to perform set reference.
For more information, refer to 2CableCerticationTestc.
Cable Set Reference.
