BRAKES

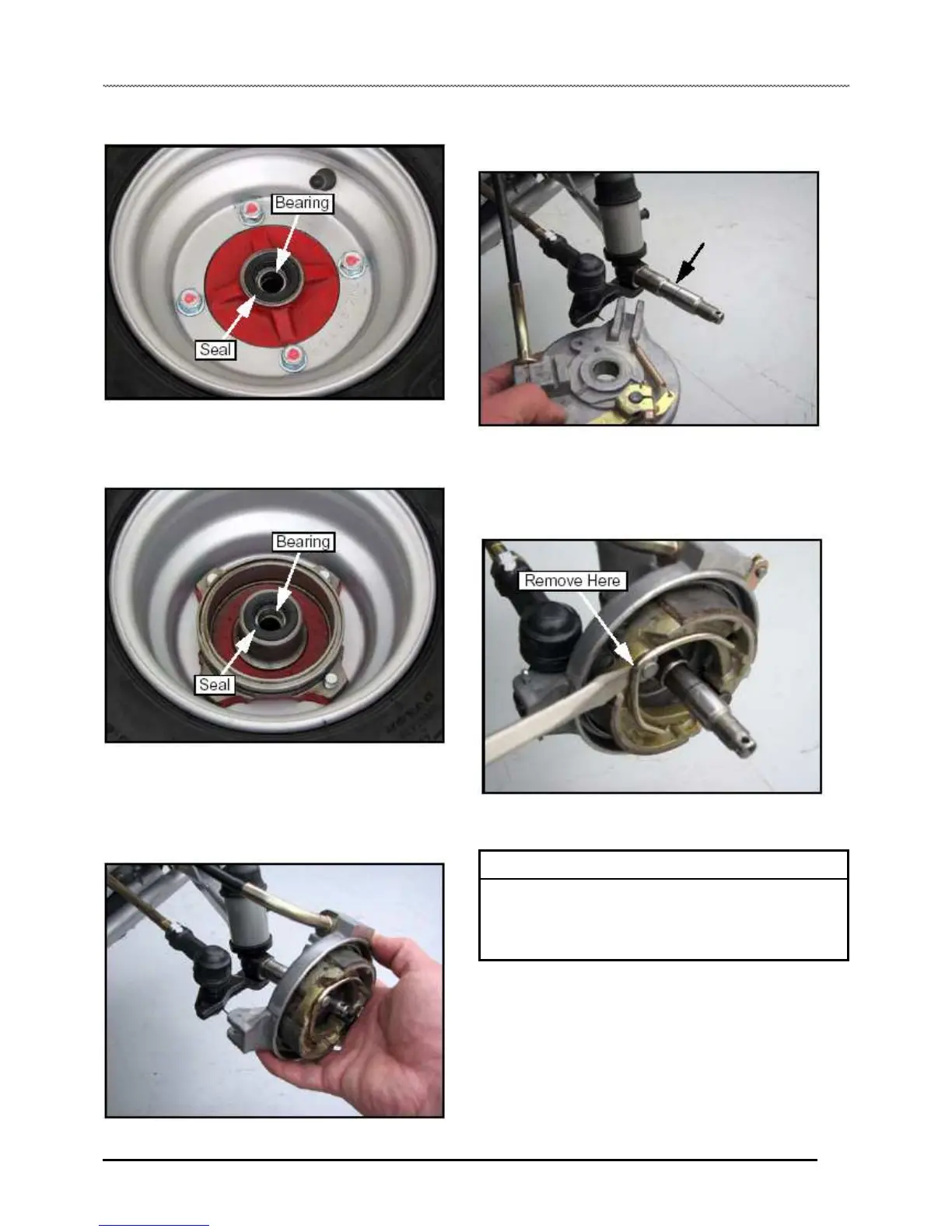

5. Inspect the outer seal and outer bearing for wear or damage.
8. Inspect spindle shaft surface for pitting or other damage.
Replace spindle assembly if necessary.
6. Flip the wheel hub and inspect the inner seal and inner
bearing for wear or damage.
Brake Shoe Removal
9. Reinstall brake backing plate and components if previously
removed.
10. Using a suitable tool, lift up on the spring near the retainer
stud as shown and remove the spring.
Brake Drum Backing Plate Removal
7. Remove the backing plate assembly from the spindle shaft
assembly.
CAUTION
Spring is under tension. Wear safety glasses and use
caution when removing spring.
Severe injury can result.
7.4
