BRAKES
11. Slide brake shoes off retainer stud and remove from
backing plate.
13. Inspect the shoe retainer stud and brake cam for wear or
damage.
12. Inspect the brake shoe pad material. Replace if worn
beyond specification.
Brake Assembly

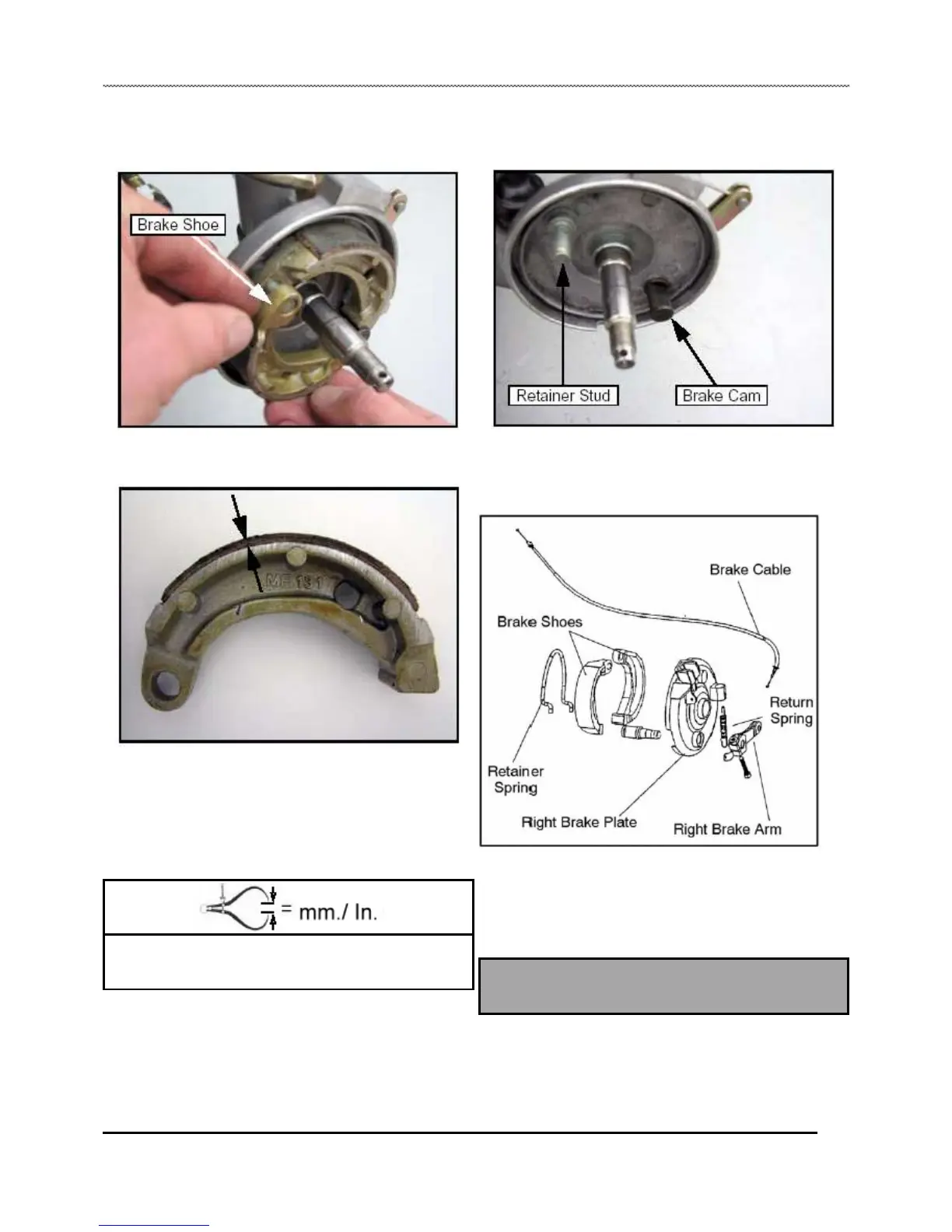

14. Use the illustration below as reference when reassembling
the front brake components.
Front Brake Shoe Pad Thickness:
Service Limit: 1.27 mm ( 0.05” )
16. Inspect oil seals and bearings for wear or damage upon
assembly. Replace bearings and seals if necessary.
17. Install the wheel hub and tighten the front spindle nut to
specification.
Front Wheel Spindle Nut Torque:
60 Nm (44 ft. lbs.)
NOTE: Perform the “Brake Lever Adjustment”
procedure outlined in Chapter 2 when finished.
