AEQ FORUM
Digital audio mixer for broadcast applications
35
The “LOGIN”/“LOGOU” contextual key has two possible uses: LOGIN to register yourself
(depending on the password used you will access to a certaind level) and LOGOUT to de-
register (this way you gain access to level 0). When you register through the option “LOGIN”,

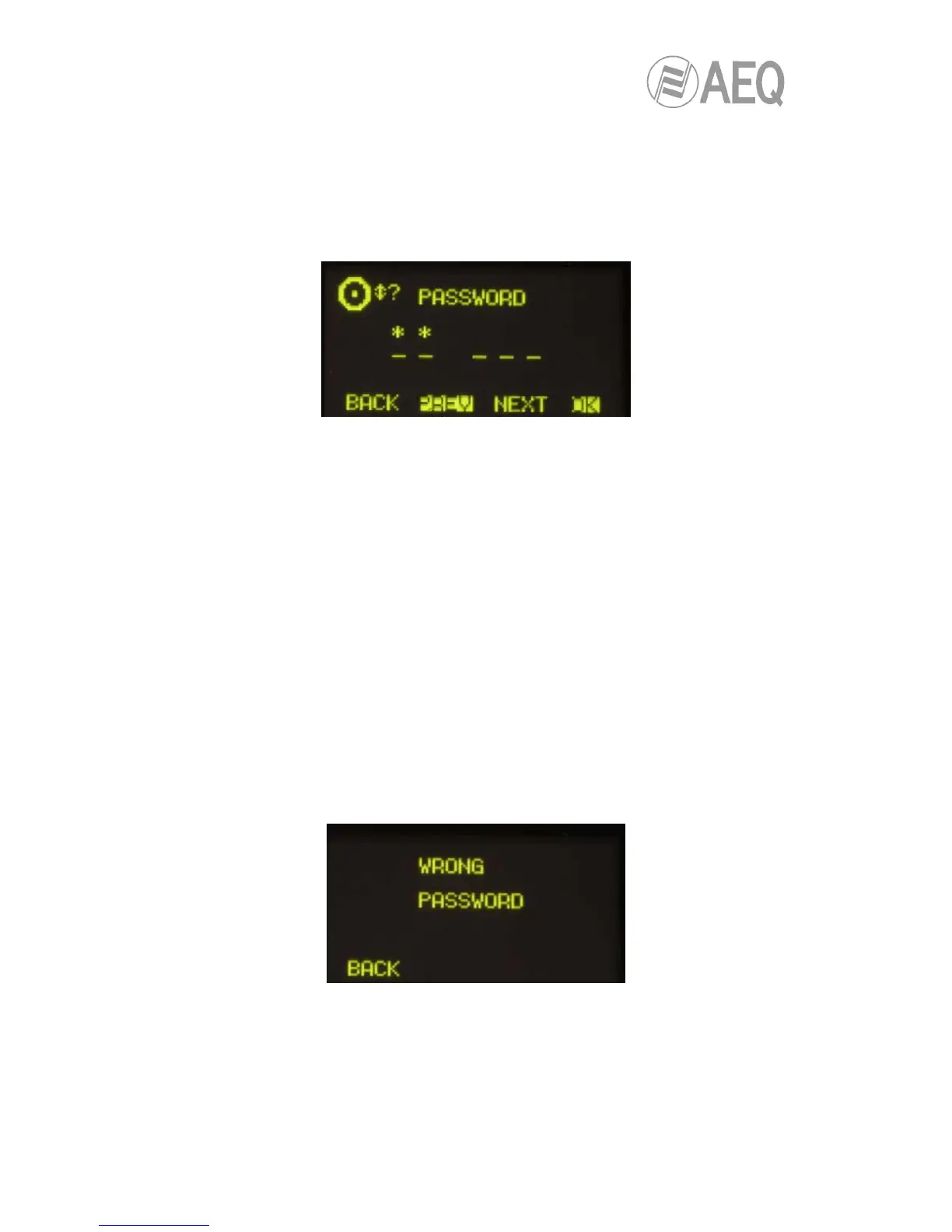

the “PASSWORD” screen appears: six spaces are displayed on screen associated with the six
digits (as maximum) of the password. The password must be configured previously from the
configuration software (see section “4. CONFIGURATION SOFTWARE” of this manual). If you
lose your password, contact AEQ’s Central Technical Assistance Service at sat@aeq.es or call
+34 91 686 13 00.
The procedure for entering the password requires the use of the contextual keys beneath the
display and any of the three associated encoders.
By turning any of the 3 encoders you can select the desired digit; by pressing any of the 3
encoders you can confirm your selection as part of the password and change to the following
position (when you press an encoder after selecting the sixth digit, it’s equivalent to press the
“OK” key).
The four contextual keys are associated with the four options displayed in the bottom line of the
display:
• “BACK”: pressing this key allows you to return to the previous menu screen.
• “PREV”: enables you to move to the left through the six positions that make up the
password.
• “NEXT”: enables you to move to the right through the six positions that make up the
password.
• “OK”: allows you to confirm that all the digits of the password have been entered and, if
password is correct, change to the associated user (the main display shows then the
initial AEQ FORUM screen with the user level up on the right and the second contextual
key identified as “LOGOU”). When you enter an incorrect combination of digits, a
“WRONG PASSWORD” message is displayed (the “BACK” key allows you to return to
the previous screen in order to insert the password once again).
