AEQ FORUM
Digital audio mixer for broadcast applications
50

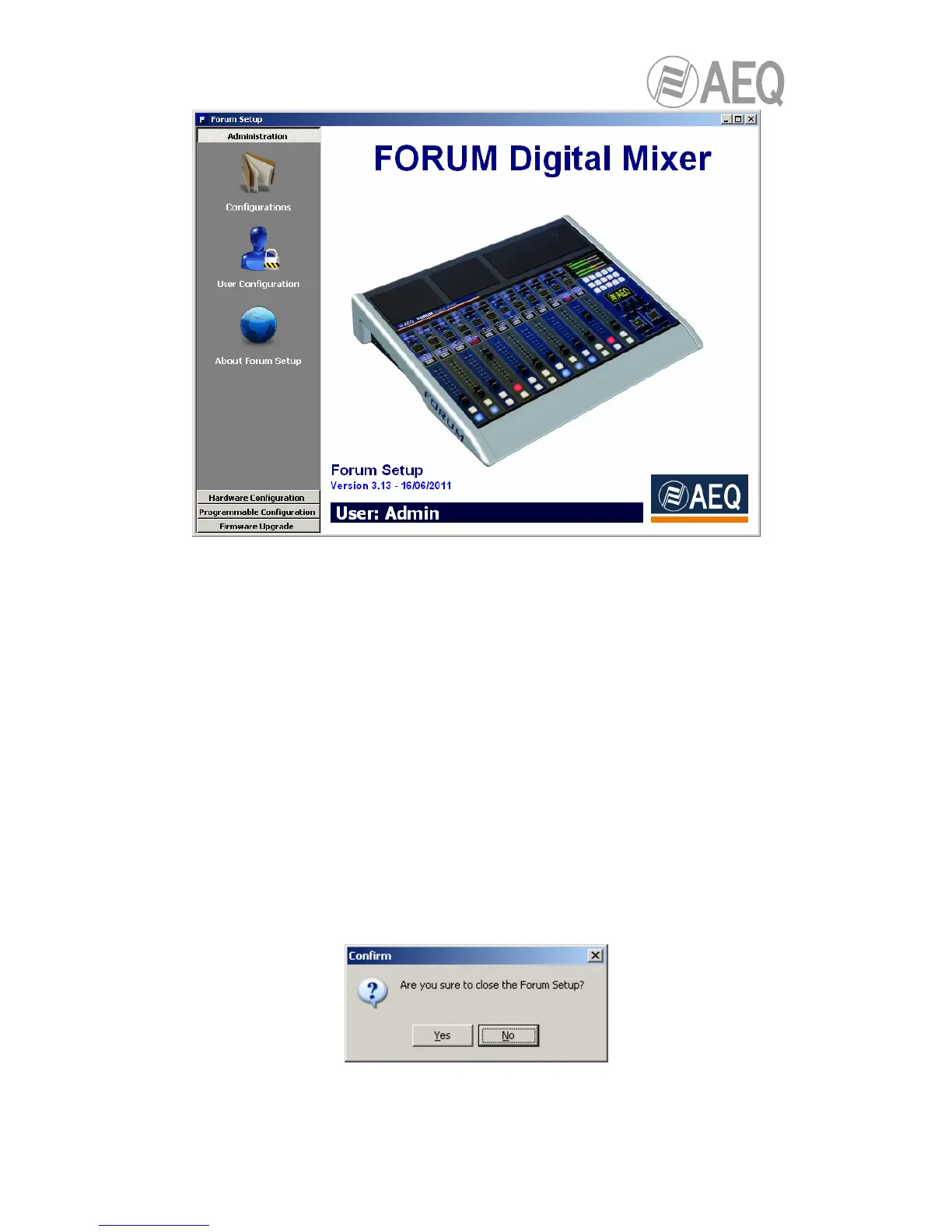

This initial screen shows information regarding the software version and the current user logged
into the application. On the left side of the screen all the relevant menus and submenus are
available. These are drop-down menus and are activated by clicking on the desired option.
The list of available menus is:
• “Administration”: manage from here the equipment operational levels, authorised
users of the mixing console and the communication between the remote configuration
software and the mixer.
• “Hardware Configuration”: allows you to configure the physical audio inputs and
outputs modules that are installed in the mixer and the logical audio channels that are
created based on these. Further, the configuration of the monitoring sections and time
synchronization are accomplished from here.
• “Programmable Configuration”: allows you to configure the internal routing of audio
signals and the functions associated with the programmable keys, as well as define
mics groups, create processes presets and manage the configuration memories
(snapshots) of the unit.
• “Firmware Upgrade”: is a maintenance menu to accomplish future firmware upgrades
of the mixer.
To exit the application, simply press the exit icon located in the upper right corner of the screen.
The application will ask for confirmation to close.
