AEQ FORUM
Digital audio mixer for broadcast applications
60

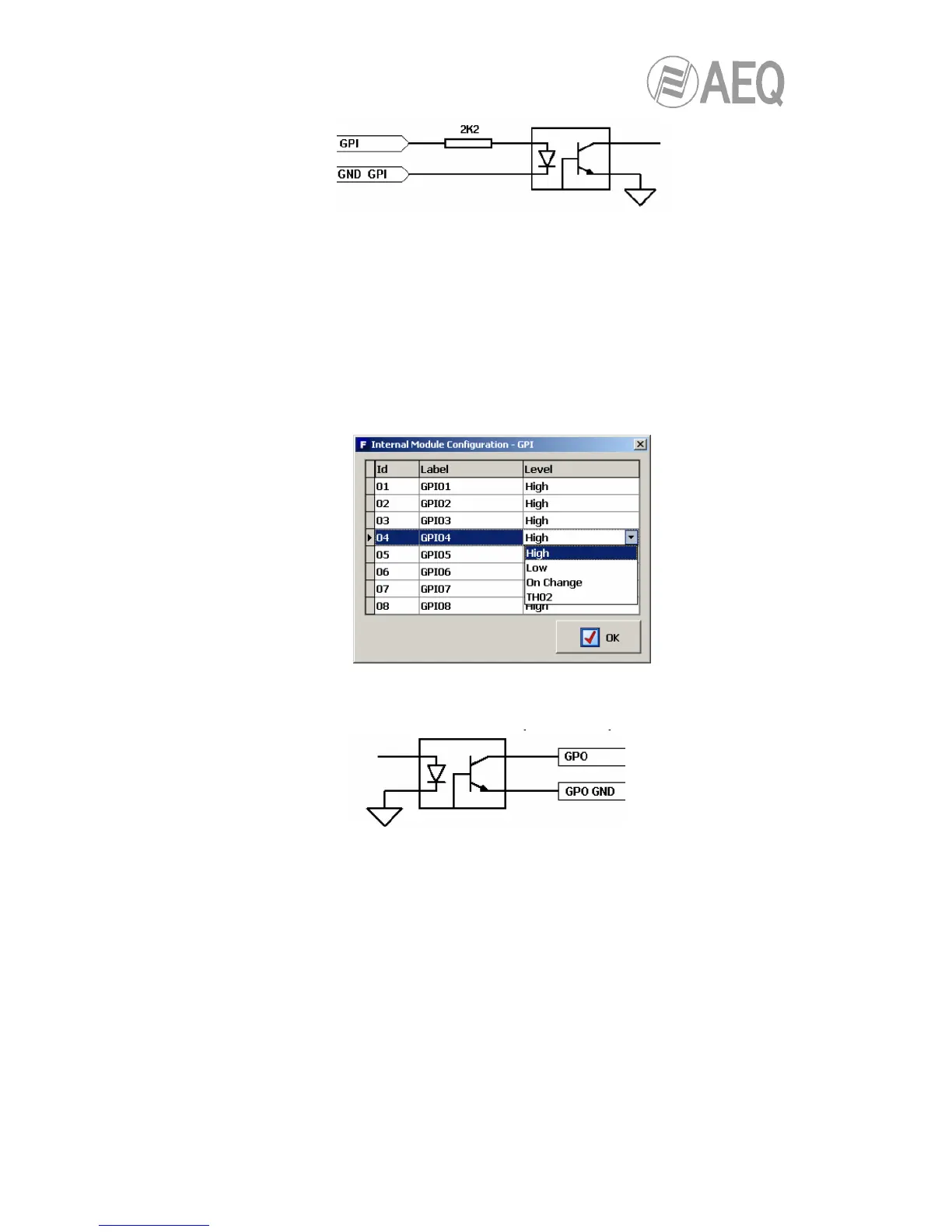

The advanced configuration menu of GPIs is accessed by clicking “Click to [CONFIG]”
and then clicking again on the “CONFIG” button that will appear. The configuration
options are:
• Edit the "Label" to identify the assigned role.
• Configure the working mode (“Level” column) of each GPI. The options are:
o “High”: GPI activated on high level.
o “Low”: GPI activated on low level.
o “On Change”: GPI activated by transitions from high to low or the
inverse.
o “TH02”: GPI to accept the particular signalling that is generated by
the AEQ TH-02EX MkII digital hybrid, as well as to enable the
remote control of this particular equipment.
3. GPO: General Purpose Outputs. AEQ FORUM incorporates 8 opto-coupled GPO's on
open collector transistors.
The advanced configuration menu of GPOs is accessed by clicking “Click to
[CONFIG]” and then clicking again on the “CONFIG” button that will appear. The
configuration options are:
• Edit the "Label" to identify the assigned role.
• Configure the working mode (“Level” column) of each GPO. The options are:
o “Level High”: GPO activated on high level.
o “Level Low”: GPO activated on low level.
o “On Change”: GPO is activated by transitions from high to low or
the inverse.
o “Pulse High”: output in the form of a high level pulse with a duration
that is defined in milliseconds in the field “Duration”.
o “Pulse Low”: output in the form of a low level pulse with a duration
that is defined in milliseconds in the field “Duration”.
