Repair and Service
Tools and auxiliary Means
DOCUMENT CONTROL NOTE:
The controlled version of this document is available from the Agfa HealthCare Library. Any printed copy of this document is uncontrolled.
Usage

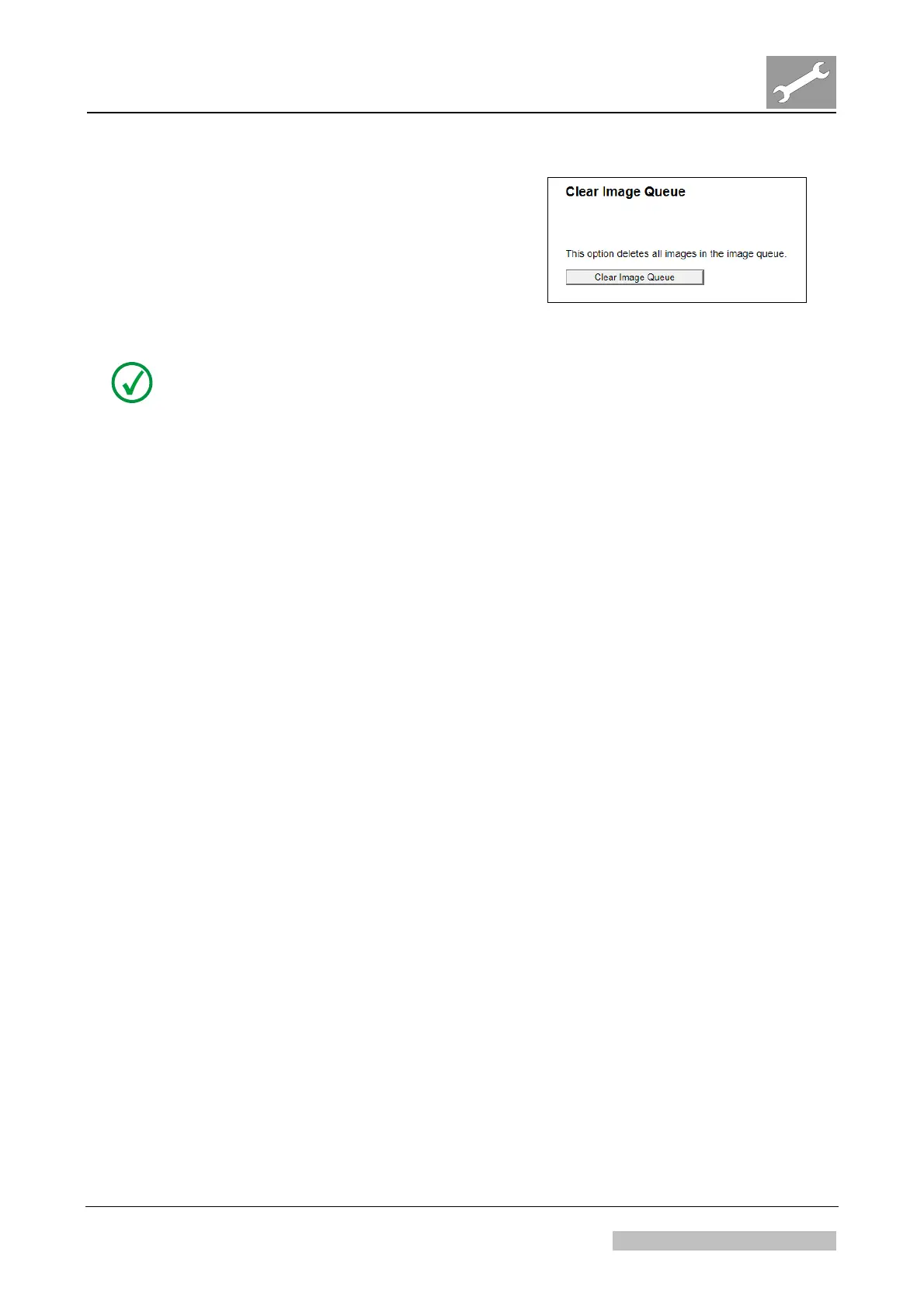

(1) Select service menu: <Clear Image
Queue>
(2) Select: <Clear Image Queue>.
(3) Click: <OK>
Figure 23
NOTE:
This menu is not available for software < ARC_1404.
2.6 Maintain & Calibrate
2.6.1 Shading Calibration
Purpose
The menu “Shading Calibration” provides:
 Functionality to compensate image inhomogeneities caused by certain properties
of the scanning system of the digitizer (Button "Calibrate").
 Possibility to view the current calibration curve (Link "Draw calibration line") for
troubleshooting.
 Possibility to download the current calibration curve to PC (Link "Download
calibration line") for troubleshooting. Note, that the calibration curve is also part of
a complete backup.
A shading calibration has to be performed after replacement of following spare parts:
 Optic Module
 PMT with Light Collector
Usage
To perform a shading calibration:
(1) Select service menu: <Shading Calibration>
(2) Follow the instructions on the screen and in CR 10-X Service Manual,
chapter 3.6, Adjustments and Calibrations.
To view the current calibration curve for troubleshooting purpose:
(1) Select link: <Draw calibration line>
To copy the current calibration curve to PC for troubleshooting purpose:
(1) Select link: <Download calibration line>
Edition 1, Revision 1 CR 10-X / CR Reader / CR 12-X / CR Advanced ReaderChapter 3.2 / Page 26 of 31
03-2013 Type 5151 / 100 / 110 / 200 / 210 Agfa Company Confidential
