AGFA CR 10-X Service Manual

DD+DIS155
.11E
Functional Description
DOCUMENT CONTROL NOTE:
The controlled version of this document is available from the Agfa HealthCare Library. Any printed copy of this document is uncontrolled.
5.1 Image Plate Run Details
This section describes following details of the image plate run:
# Description See Section
1 Clamping, unlocking and opening the Cassette 5.1.1
2 Taking the Image Plate out of the Cassette 5.1.2
3 Scanning the Image Plate 5.1.3

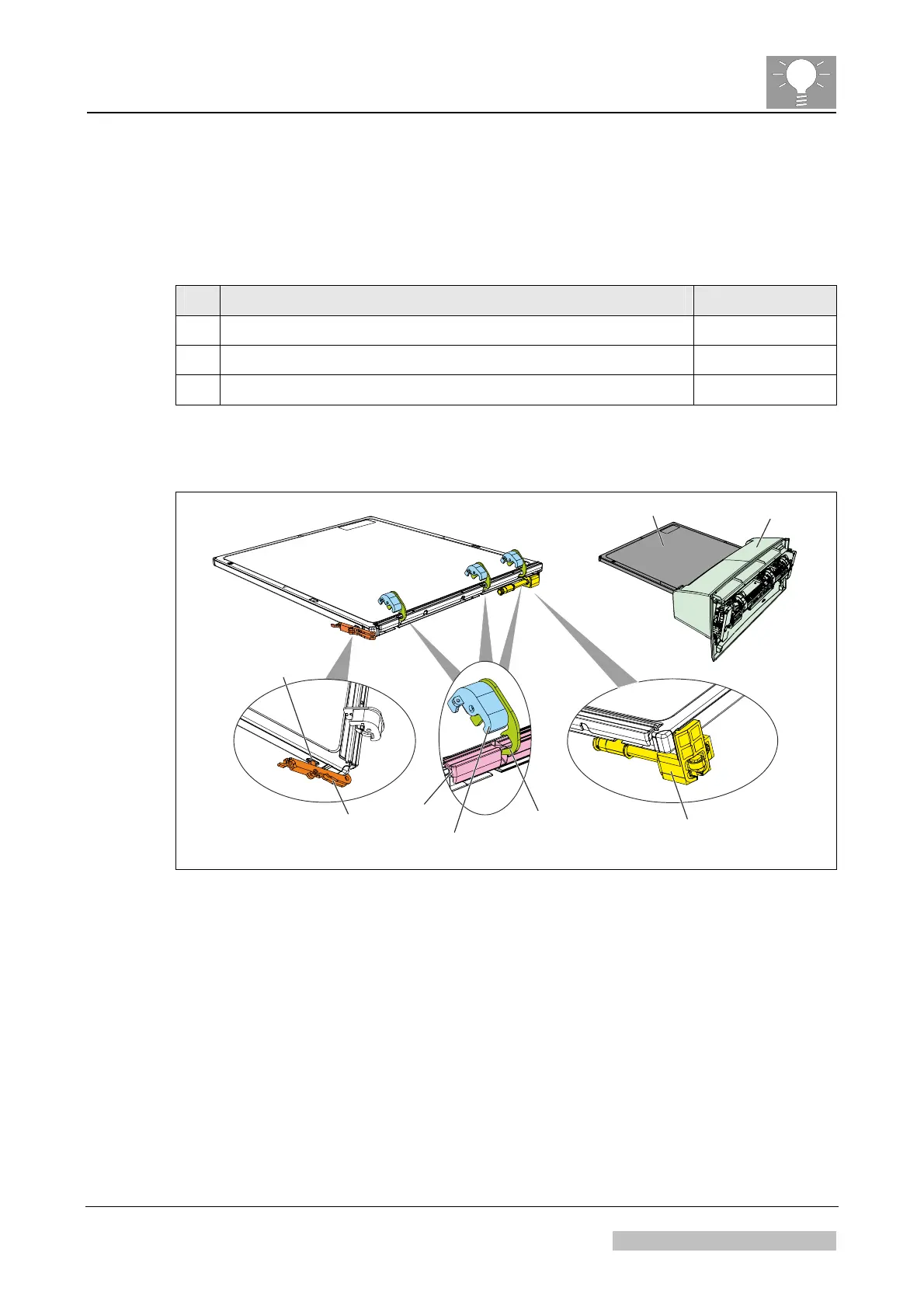

5.1.1 Clamping, Unlocking and Opening the Cassette
Cassette Unlocker
Lock
Cassette Opener
Cassette Pusher
Shutter
Cassette Clamper
Cassette
Cassette Unit
517502eb.cdr
Figure 12
The user activates following mechanical actions by user inserting the cassette with a
minimum required force of 40 N:
 The cassette clamper clamps the cassette.
 The cassette unlocker opens the lock of the cassette.
 The cassette opener opens the shutter of the cassette.
By pulling out the cassette the opposite actions are activated. In addition the
cassette pusher supports closing the cassette.
Edition 1, Revision 1 CR 10-X / CR Reader / CR 12-X / CR Advanced Reader Chapter 2 / Page 15 of 19
03-2013 Type 5151 / 100 / 110 / 200 / 210 Agfa Company Confidential
