Functional Description
DOCUMENT CONTROL NOTE:
The controlled version of this document is available from the Agfa HealthCare Library. Any printed copy of this document is uncontrolled.
3 Hardware Components of the Digitizer

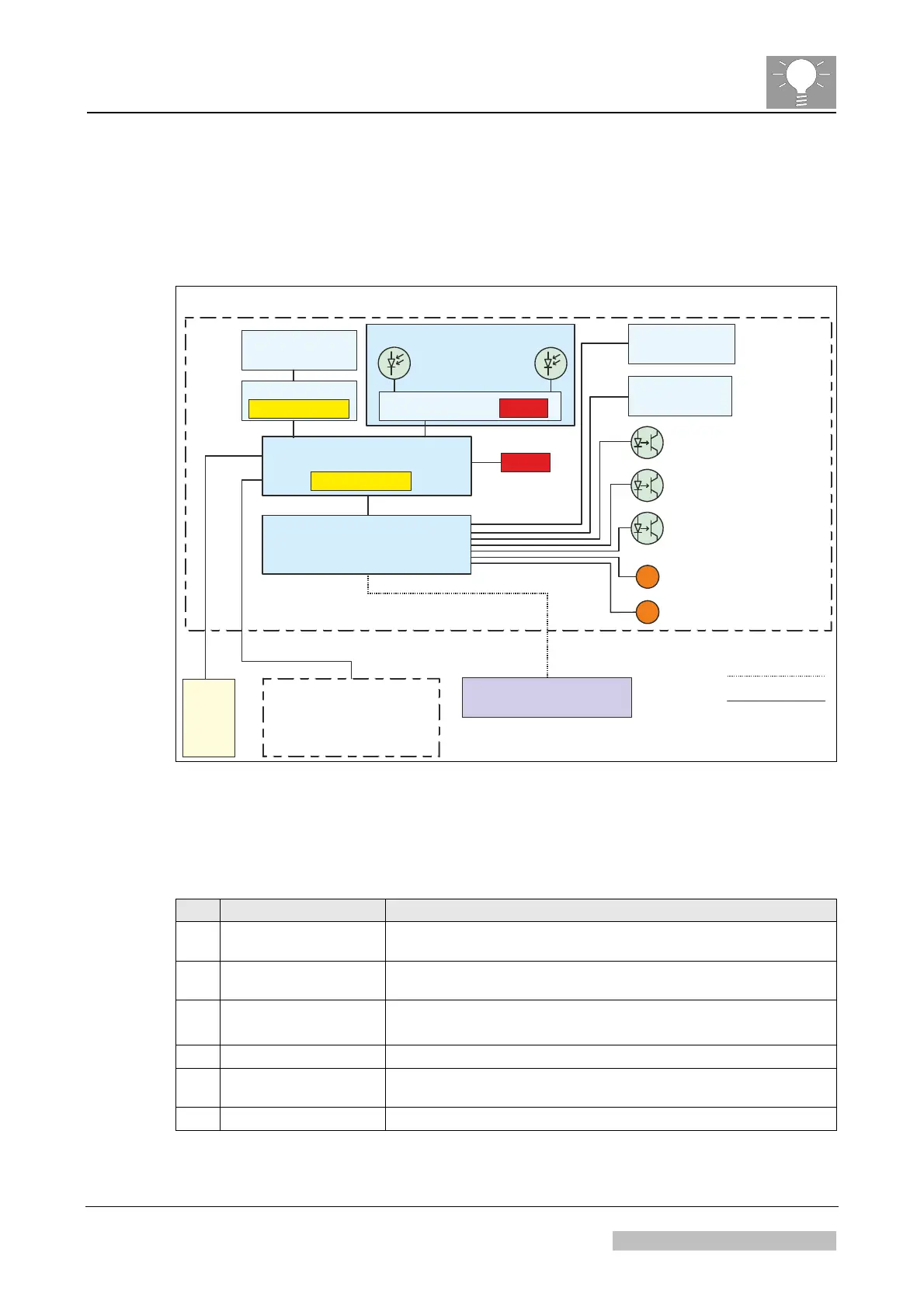

The following figure shows the hardware components of the digitizer.
User Interface
Board
Erasure LED
Board
External Power
Supply (24 V)
USB
Flash
Drive
Power Board /
Power II Board
515102bc.cdr
PMI Board
Optic Module
Tube Board
Photomultiplier
Optics Boards
E-Label
Device E-Label
NX Workstation
Digitizer
Power
Ethernet
Data
(and Power)
E-Label
Drawer Motor
M
Slow Scan Motor
M
IP Detection
Light Sensor
IP Drawer
Light Sensor
Cassette Detection
Light Sensor
BOL
Sensor
EOL
Sensor
Flash Memory
Flash Memory
Figure 8
The following table lists the functions of the different components in alphabetical
sequence.
# Component Name Function
1
Cassette Detection
Light Sensor
Detects that a cassette has been entered.
2 Device E-Label*
Master E-label for device specific parameters like serial number and
type number.
3 Drawer Motor Transports the image plate from the cassette to the scan drum.
Drives the image plate back into the cassette after scan.
4 Erasure LED Board Keeps the LEDS of the Erasure Unit.
5
External Power Supply
(24 V)
Supplies power for all consumers.
6 IP Detection Sensor Detects the image plate approx. 24 cm after begin of scan.
Edition 1, Revision 1 CR 10-X / CR Reader / CR 12-X / CR Advanced Reader Chapter 2 / Page 10 of 19
03-2013 Type 5151 / 100 / 110 / 200 / 210 Agfa Company Confidential
