Controls, Connections, and Setup Procedures
DOCUMENT CONTROL NOTE:
The controlled version of this document is available from the Agfa HealthCare Library. Any printed copy of this document is uncontrolled.
2.1 Checking Installation Site Prerequisites
(1) Confirm that all prerequisites described in the "Installation readiness checklist"
are fulfilled. See Service Manual chapter 11, Installation Planning.
2.2 Unpacking the Digitizer
(1) Compare the labels on the boxes with the customers order list and the
shipping papers.
(2) Check the packing material for visible transport damage such as dented edges,
damage on the box, torn fixing elements.
(3) Check the attached safety indicators on the packing boxes.
White field is OK.
Red field is not OK.
STOSSEMPFINDLICH
IMPORTANT:
If the device was tilted, the circle in the
arrow head of the TILTWATCH changes
from white to red.
If the device was subjected to shocks, the
square field in the middle of the
SHOCKWATCH changes from white to
red.

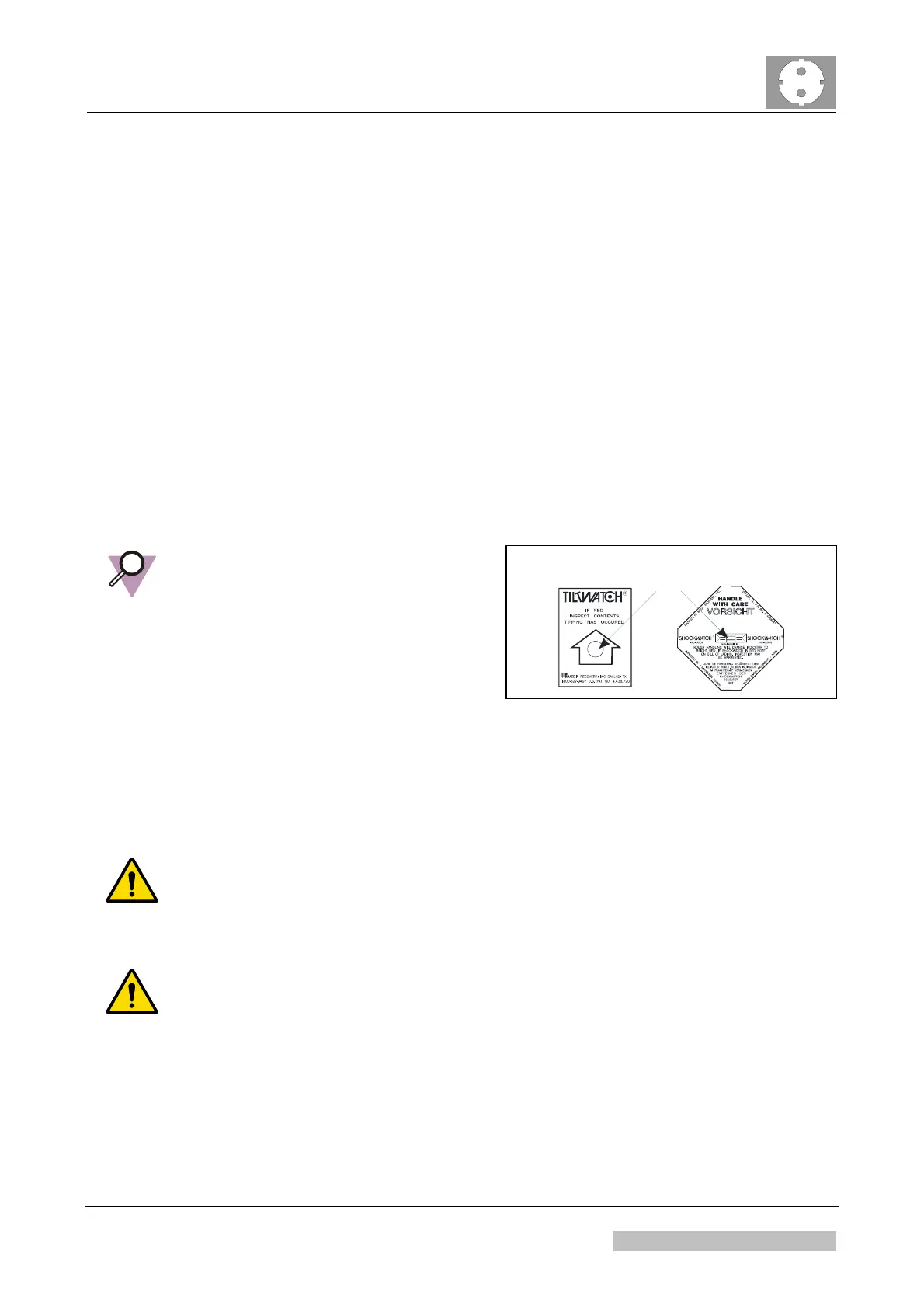

Figure 1
 If damages are visible from the outside, inform the carrier. The damage must be
noted down in the handover documents.
 If the device should be replaced, contact your local AGFA representative.
 If no damage is visible from the outside start installation.
WARNING:
The digitizer is heavy (30 kg; 66 lbs). Risk of injuries when lifting the digitizer.
Use proper foot and hand protection when lifting the digitizer.
WARNING:
The device is a table-top digitizer. The structure and stability of the table used need to
be suitable in relation with the size and weight of the system. Do not use excessive
force when inserting cassettes in the digitizer as the device may slip or drop off the
table. Use a non-slip-mat below the digitizer or other anti-skid measures. The table
should not be subject to excessive shock and vibrations from other sources, as this
may disturb the operation of the digitizer.
