Functional Description
DOCUMENT CONTROL NOTE:
The controlled version of this document is available from the Agfa HealthCare Library. Any printed copy of this document is uncontrolled.
2 Workflow of the Digitizer System

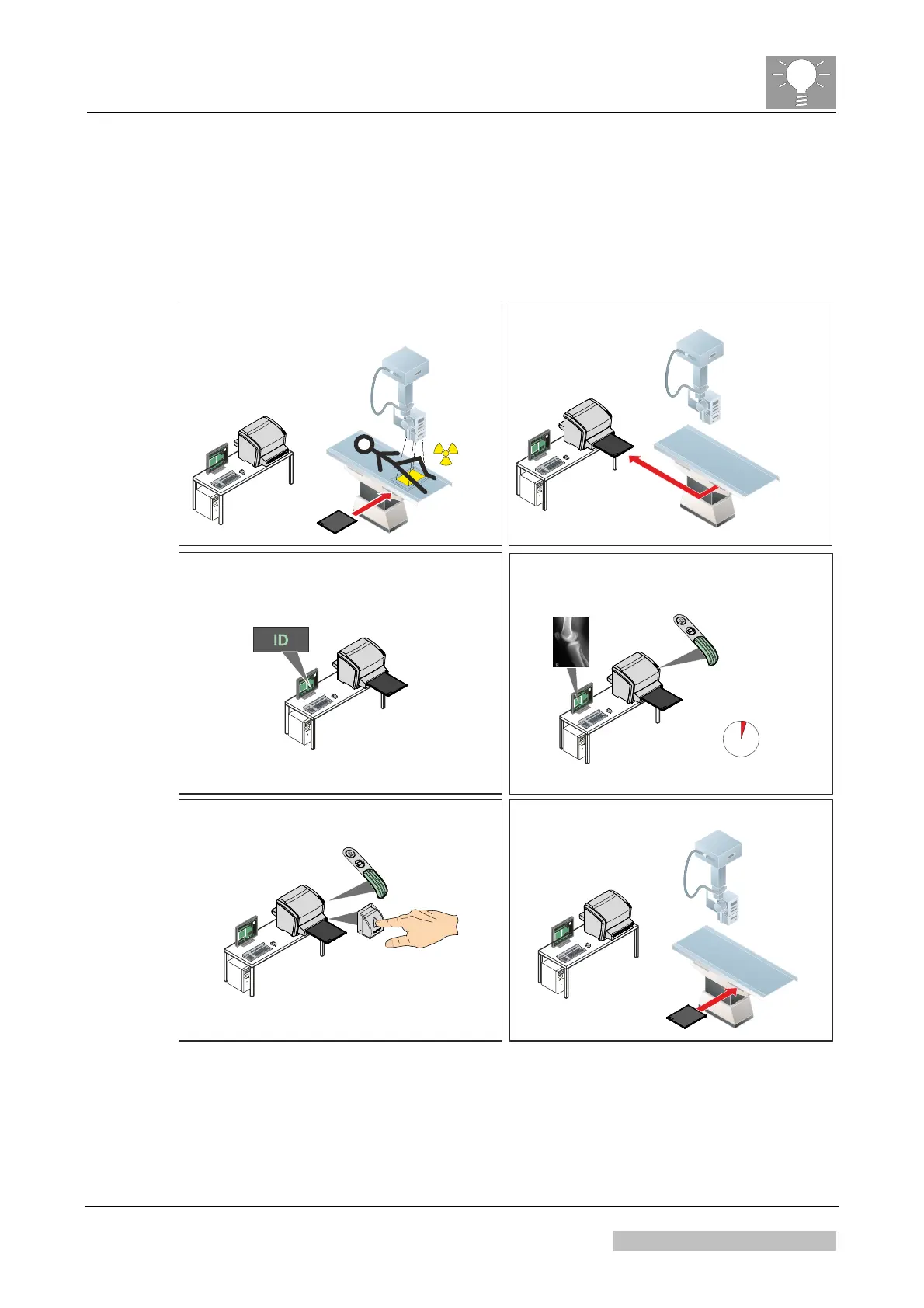

The following figure shows the workflow of a digitizer system:
Approx. 2 min.
green
flashing
during
scan
constant
green
when
idle
1 Insert cassette in X-ray table
and take exposure.
2 Insert exposed cassette in digitizer.
3 Enter patient and examination data
4 Wait until the image is scanned.
5 Release cassette.
6 Insert the cassette in the X-ray table
and click on the ID button: Scanning starts
for the next examination.
A
B
515102az.cdr
Figure 7
Edition 1, Revision 1 CR 10-X / CR Reader / CR 12-X / CR Advanced Reader Chapter 2 / Page 9 of 19
03-2013 Type 5151 / 100 / 110 / 200 / 210 Agfa Company Confidential
