Installation Planning
123
DOCUMENT CONTROL NOTE:
The controlled version of this document is available from the Agfa HealthCare Library. Any printed copy of this document is uncontrolled.
The device is not foreseen for installation in the patient vicinity. Therefore the
equipment must be placed outside the patient vicinity according to the locally valid
regulation (UL 60601-1 or EN 60601-1).
The patient vicinity is defined as follows:
 UL 60601-1:
o 1.83 m (6 feet) beyond the perimeter of the bed (examination table, dental chair,
treatment booth, and the like)
o Vertical 2.29 m (7.5 feet) above the floor
 EN 60601-1:
o 1.5 m (4.9 feet) beyond the perimeter of the bed (examination table, dental
chair, treatment booth, and the like)
o Vertical 2.5 m (8.2 feet) above the floor

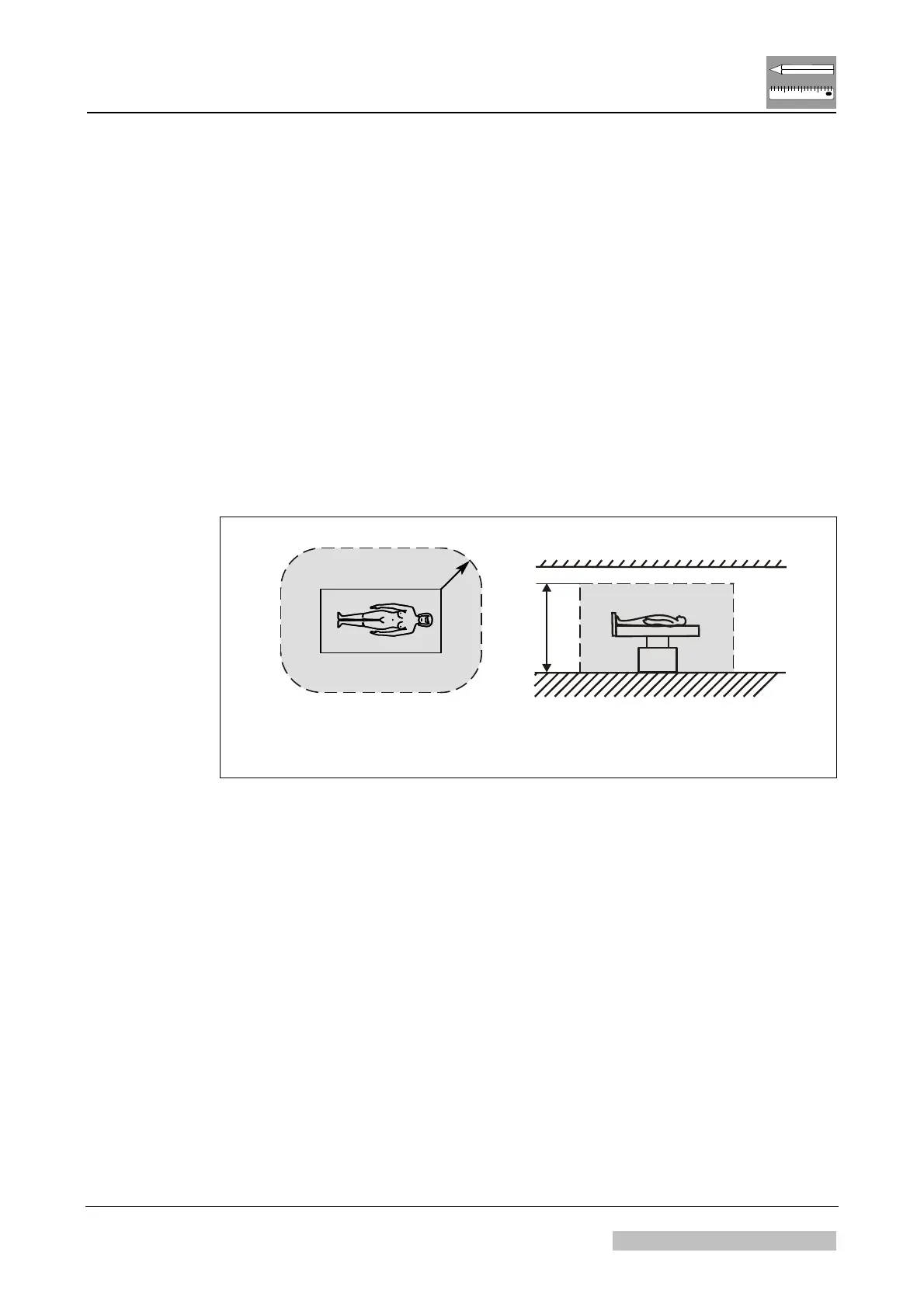

Patient vicinity
Patient vicinity
R
R = 1.5 m / 4.9 feet (EN 60601-1) or
h = 2.5 m / 8.2 feet (EN 60601-1) or 2.29 m / 7.5 feet (UL 60601-1)
1.83 m / 6 feet (UL 60601-1)
patient_vicinity.cdr
h
Figure 12
 Other equipment that is in contact with the patient is not connected directly
to the Agfa system without additional protective measures.
Edition 1, Revision 1 CR 10-X / CR Reader / CR 12-X / CR Advanced Reader Chapter 11 / Page 22 of 24
03-2013 Type 5151 / 100 / 110 / 200 / 210 Agfa Company Confidential
