Agilent Technologies 1260 Infinity User Manual

1260 Infinity Binary Pump User Manual 225
Hardware Information
13
Interfaces
The RS- 232C is designed as DCE (data communication equipment) with a
9- pin male SUB- D type connector. The pins are defined as:

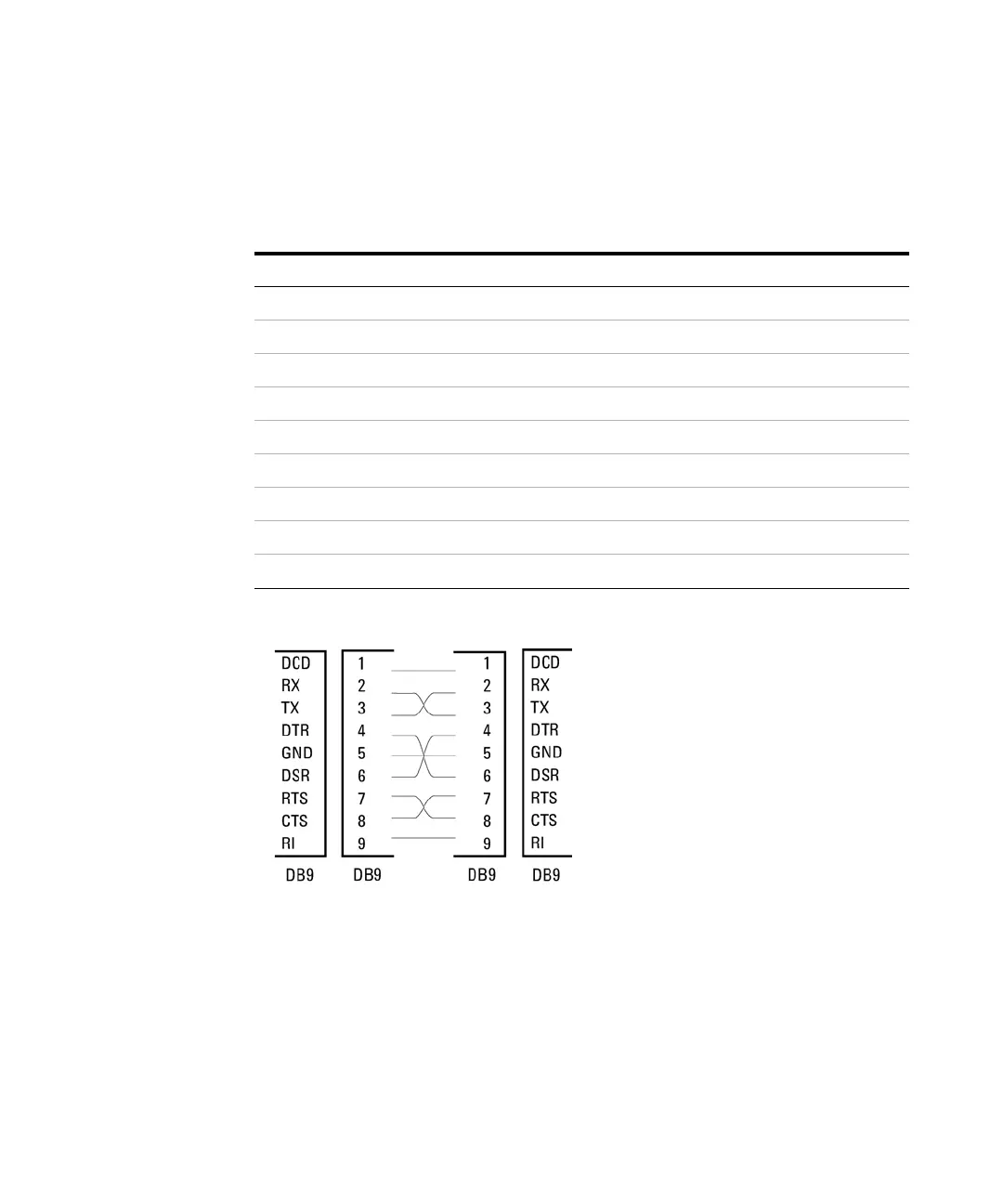

Figure 37 RS-232 Cable
Analog Signal Output
The analog signal output can be distributed to a recording device. For
details refer to the description of the module’s main board.
Tabl e 1 5 RS-232C Connection Table
Pin Direction Function
1In DCD
2In RxD
3Out TxD
4 Out DTR
5Ground
6In DSR
7Out RTS
8In CTS
9In RI
>chigjbZci
E8
BVaZ ;ZbVaZ ;ZbVaZ BVaZ
