86 1260 Infinity Binary Pump User Manual
5 Optimizing Performance
When to Remove Damper and Mixer
3

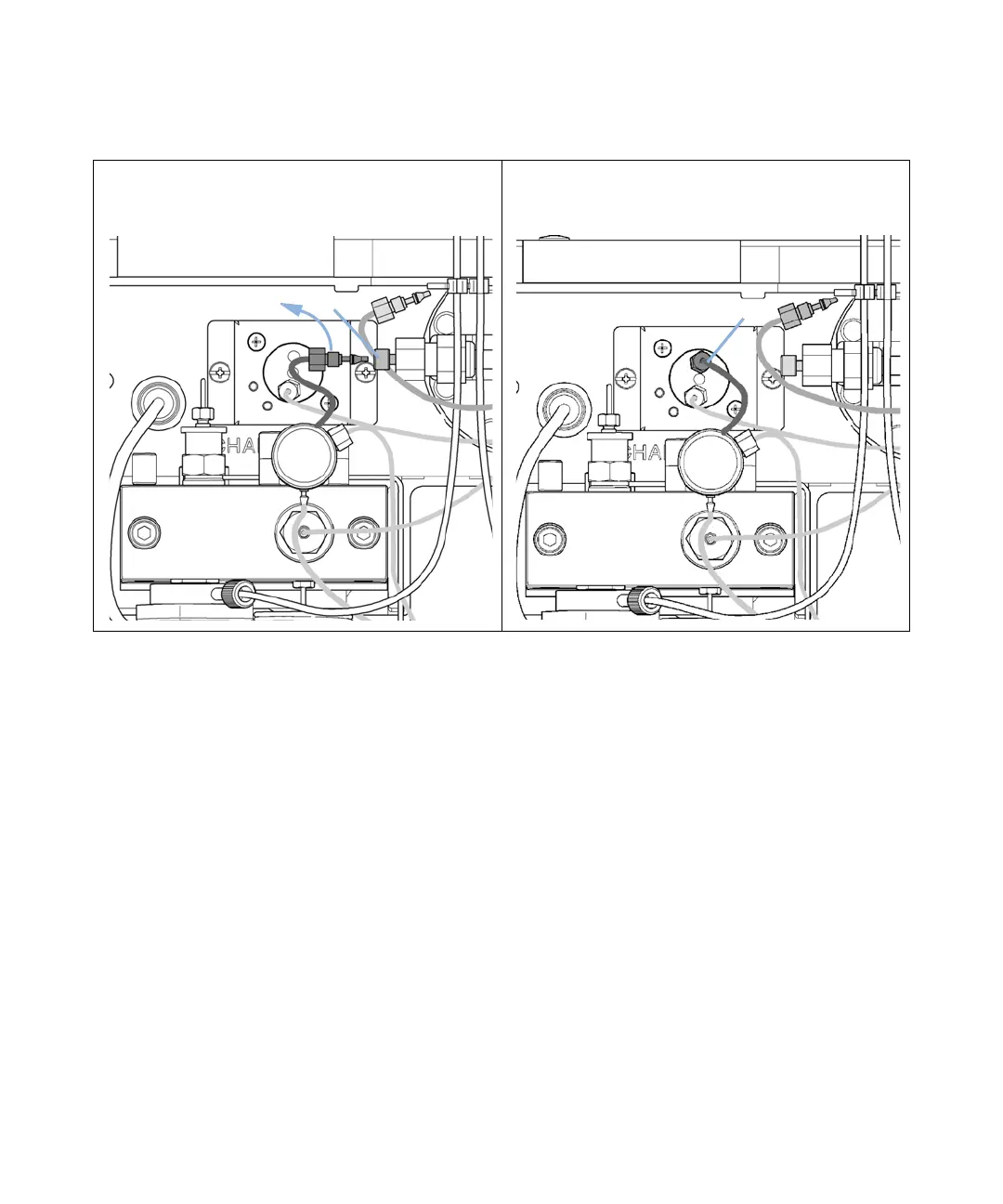

Fold capillary end B away. It remains
unconnected.Disconnect fitting A from outlet 1 of the
mixer.
4 Connect fitting A to port 2 of the pressure sensor. Seal
port 1 of the mixer with a plastic blank nut.
6
&
7
'
6
7
&
'
