1290 Infinity II High-Speed Pumps User Manual 162

8Maintenance

Remove the Pump Head Assembly (G7120A)

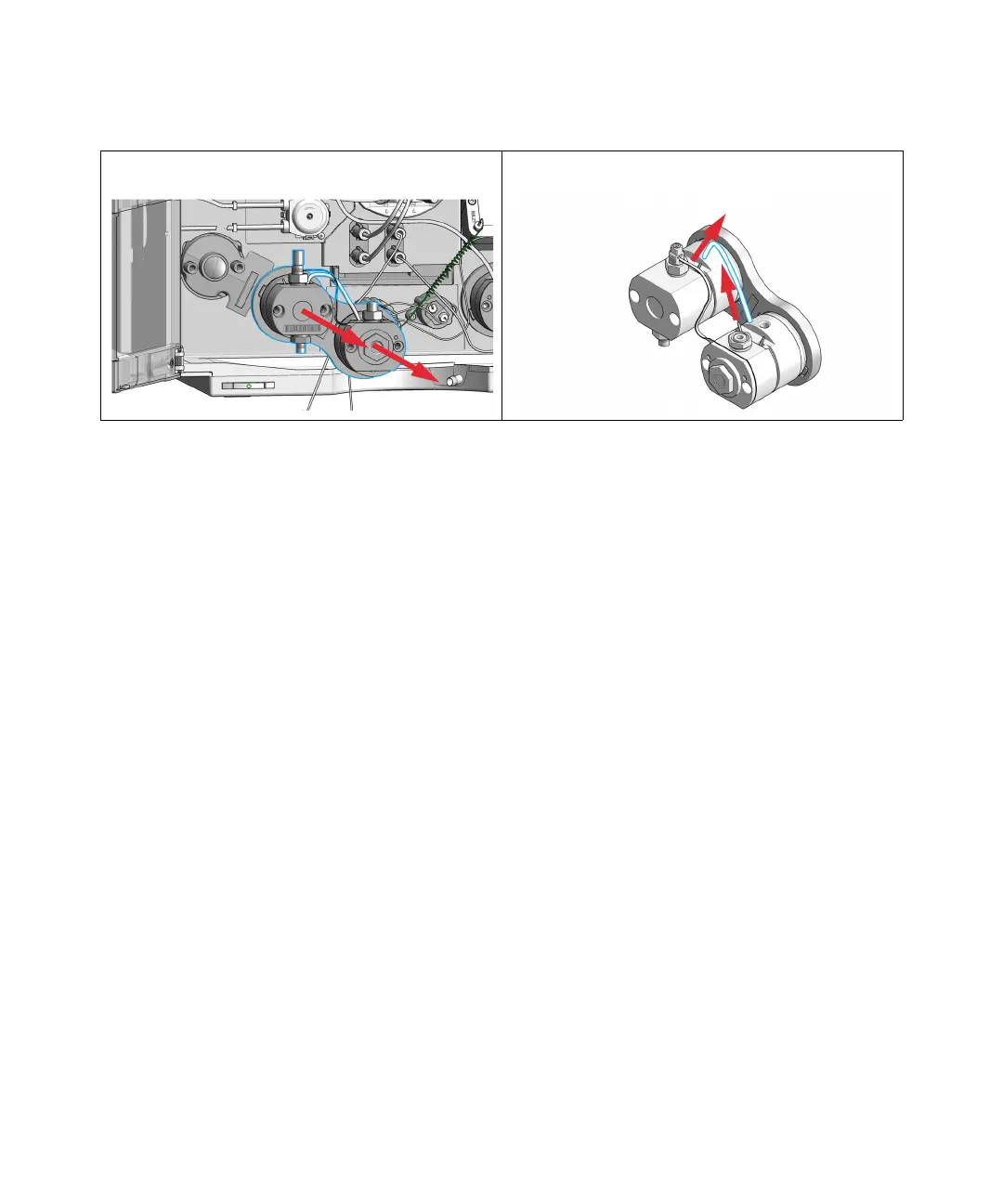

11 Remove the complete pump head assembly by holding

both heads and pulling it to the front.

12 Remove the seal wash tubing interconnecting the two

pump heads.
