Agilent Technologies 35670A Quick Start Guide

4 Specify the triggering parameters.
Press [
Trigger
] [
SOURCE TRIGGER
].
5 Configure the display.
Press [
Scale
],thenpress[
AUTOSCALE ON OFF
] to highlight ON.
Press [
Disp Format
] [
MORE
][

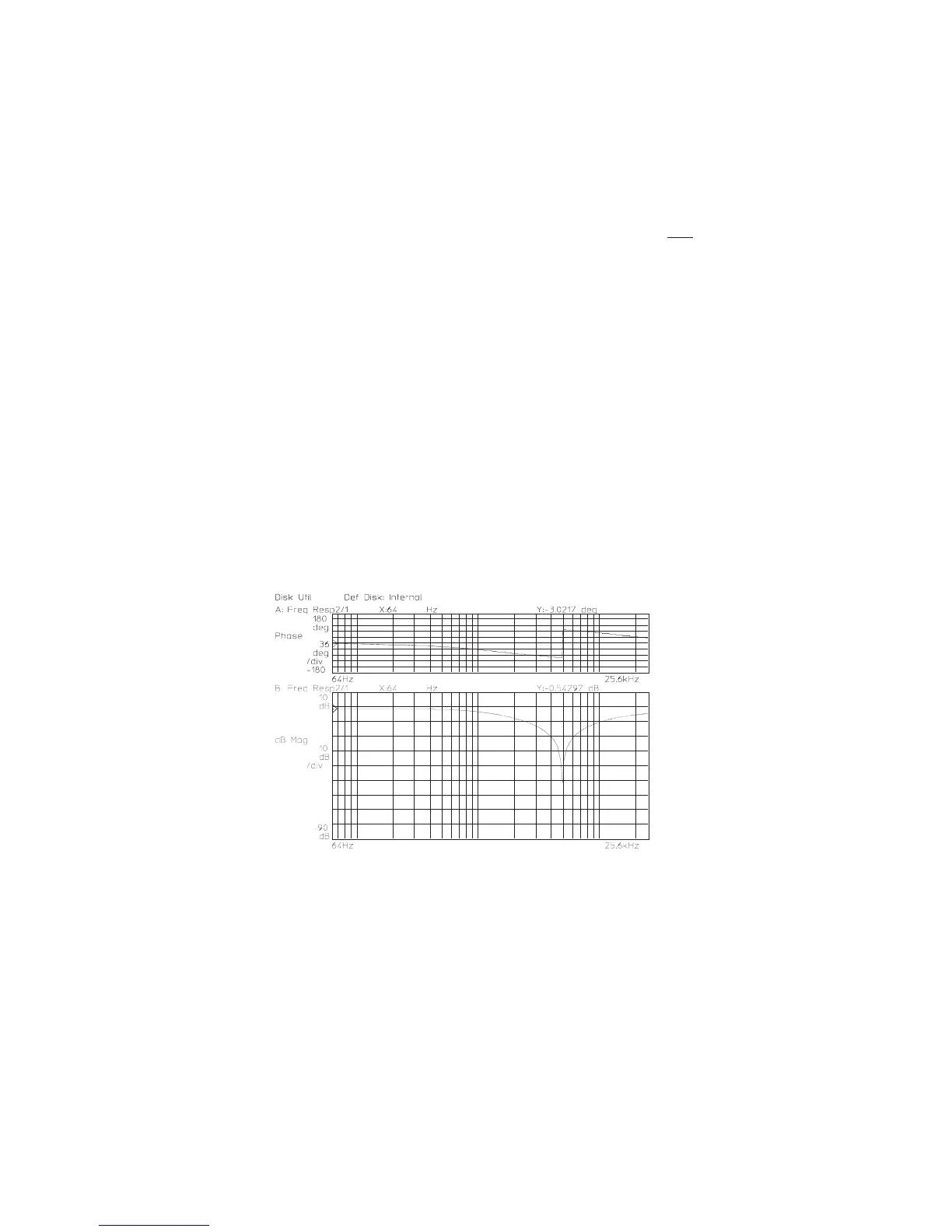

BODE DIAGRAM
].
6 Measure the DUT.
Press [
Start
].
A triggered measurement and the uniform window selection produces a much more
accurate response at the low end of the frequency spectrum. The periodic chirp
provides more energy than random noise. It is a self-windowing signal that provides
exactly the same stimulus from one measurement average to the next. Consequently,
averaging is not required.
The analyzer’s source impedance is less than 5 ohms. If your DUT needs a specific
source impedance, insert the appropriate resistor in series with the source output.
To display the measurement data on a logarithmic scale
press [
Trace Coord
] then press [
X-AXIS LIN LOG
] to highlight LOG.
Agilent 35670A Quick Start Guide Making Measurements
31
