To measure a spectrum
The Agilent 35670A evaluates signals and devices under 102.4 kHz. Dynamic range
is 80 dB guaranteed. The analyzer has a 25.6 kHz real-time rate at 400 lines of
resolution.
1 Initialize the analyzer.
Press [
Preset
] then press [
DO PRESET
].
Press [
CHANNELS 1 2
]
or [
CHANNELS 1 2 4
] to highlight 1.

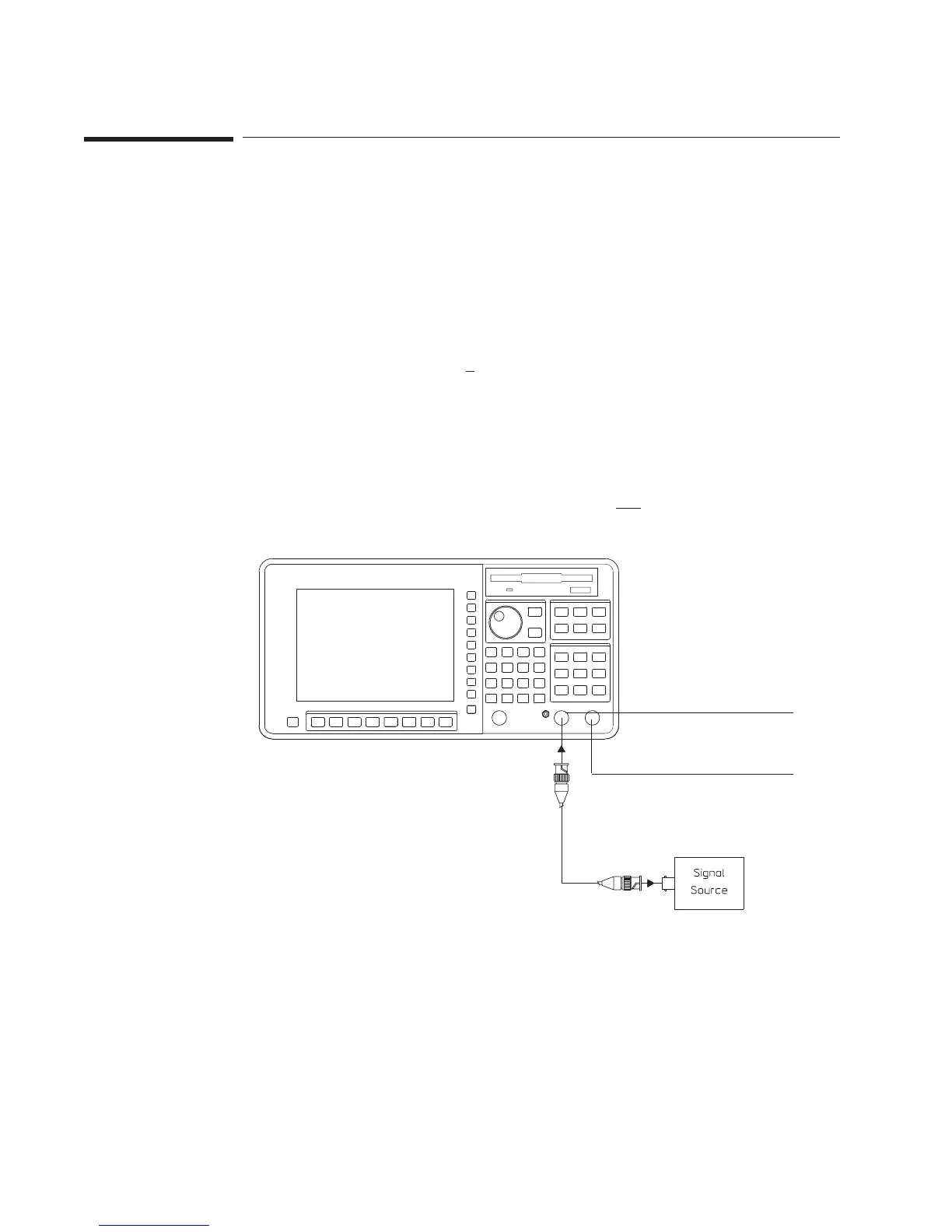

2 Connect the signal source as shown in the illustration.
3 Select the measurement parameters.
Press [
Freq
] [
START
] <number> <unit>, then press [
STOP
] <number> <unit>.
4 Specify the averaging parameters.
Press [
Avg
] then press [
AVERAGE ON OFF
] to highlight ON.
Channel 1
Channel 2
Making Measurements Agilent 35670A Quick Start Guide
28
