Agilent Technologies 35670A Quick Start Guide

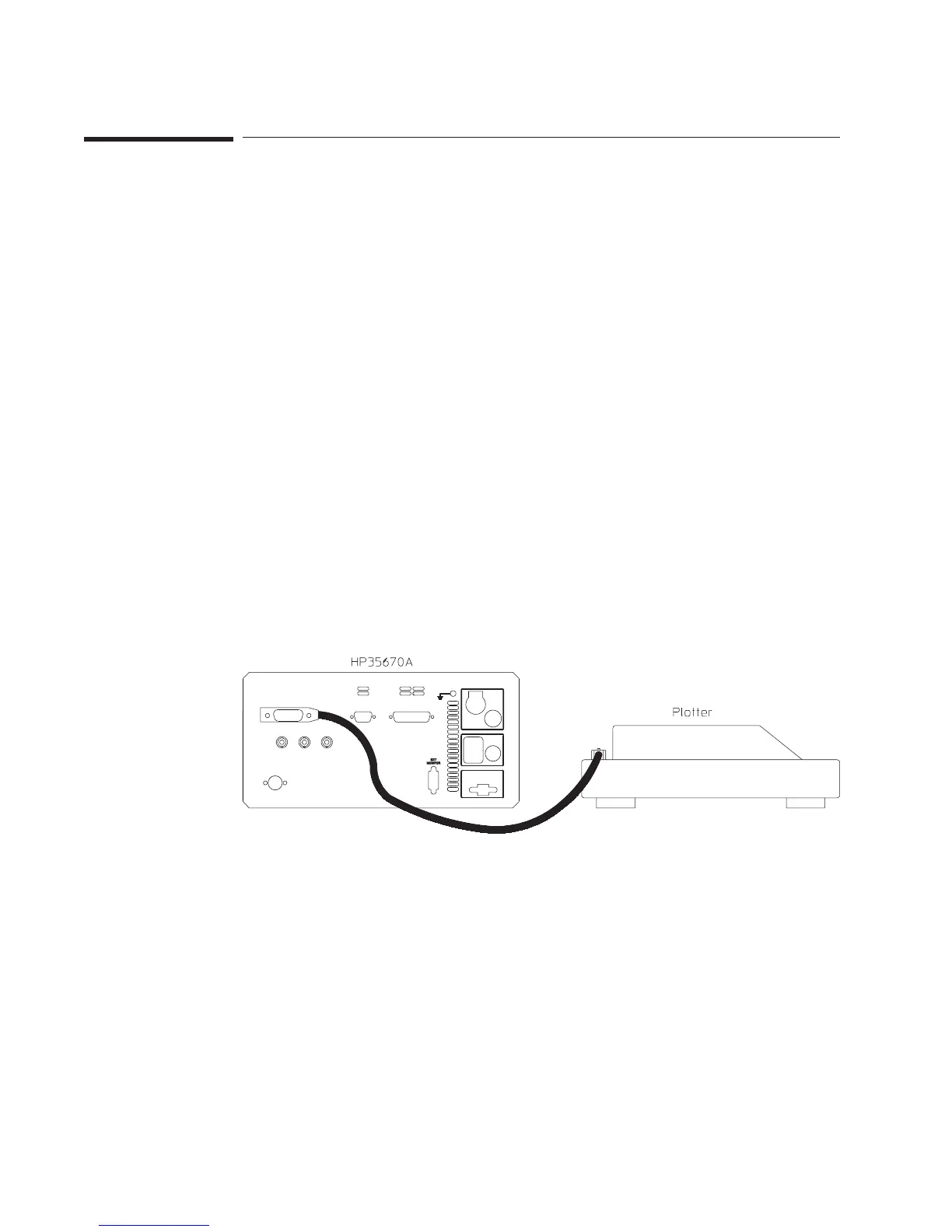

To setup your plotter — GPIB
1
Connect the GPIB ports of your plotter and analyzer with an GPIB cable.
2 Verify the GPIB address of the analyzer.
See “To set the analyzer’sGPIBaddress” in the Setting Up section.
3 Turn on the plotter.
4 Determine the GPIB address of the plotter.
If you need to change the setting on the analyzer, press [
Local/GPIB
]
[
PLOTTER ADDRESS
] <number> [
ENTER
].
5 Press [
SYSTEM CONTROLLR
].
The current setting for the plotter’s address appears at the top of the display. Refer to
you plotter’s documentation to determine its GPIB address. If you need to change it,
substitute the value for <number> in Step 4.
If there is more than one controller on the bus, the analyzer needs to have active
control instead of system control to initiate a plot. See “Passing Control” in the GPIB
Programmer’s Guide for more information.
Saving and Plotting Data Agilent 35670A Quick Start Guide
52
