To recall a trace from a file
1
Press [
Save/Recall
], then press [
CATALOG ON OFF
] to highlight ON.
2 Turn the knob to highlight the file you want to recall.
3 Press [
RECALL DATA
][
RCL TRACE
][
FROM FILE INTO D1
][
ENTER
].
4 Activate the appropriate trace if the one you want to replace is not currently active.
See “Toactivateatrace.”
5 Press [
Meas Data
] [
MORE CHOICES
][
DATA REGISTER
][
D1
].
It is generally easier to recall a trace if you display the disk catalog and highlight the
trace file first. When you do this, the prompt box that is displayed when you press
[
FROM FILE INTO D1
] already contains the correct file name. You only need to press
enter to recall the file. If you do not display the catalog first, you will need to type the
correct file name into the prompt box before you press enter.
The analyzer always recalls a trace into a data register. Steps 4 and 5 allow you to
view the recalled trace by selecting the contents of that data register for display.

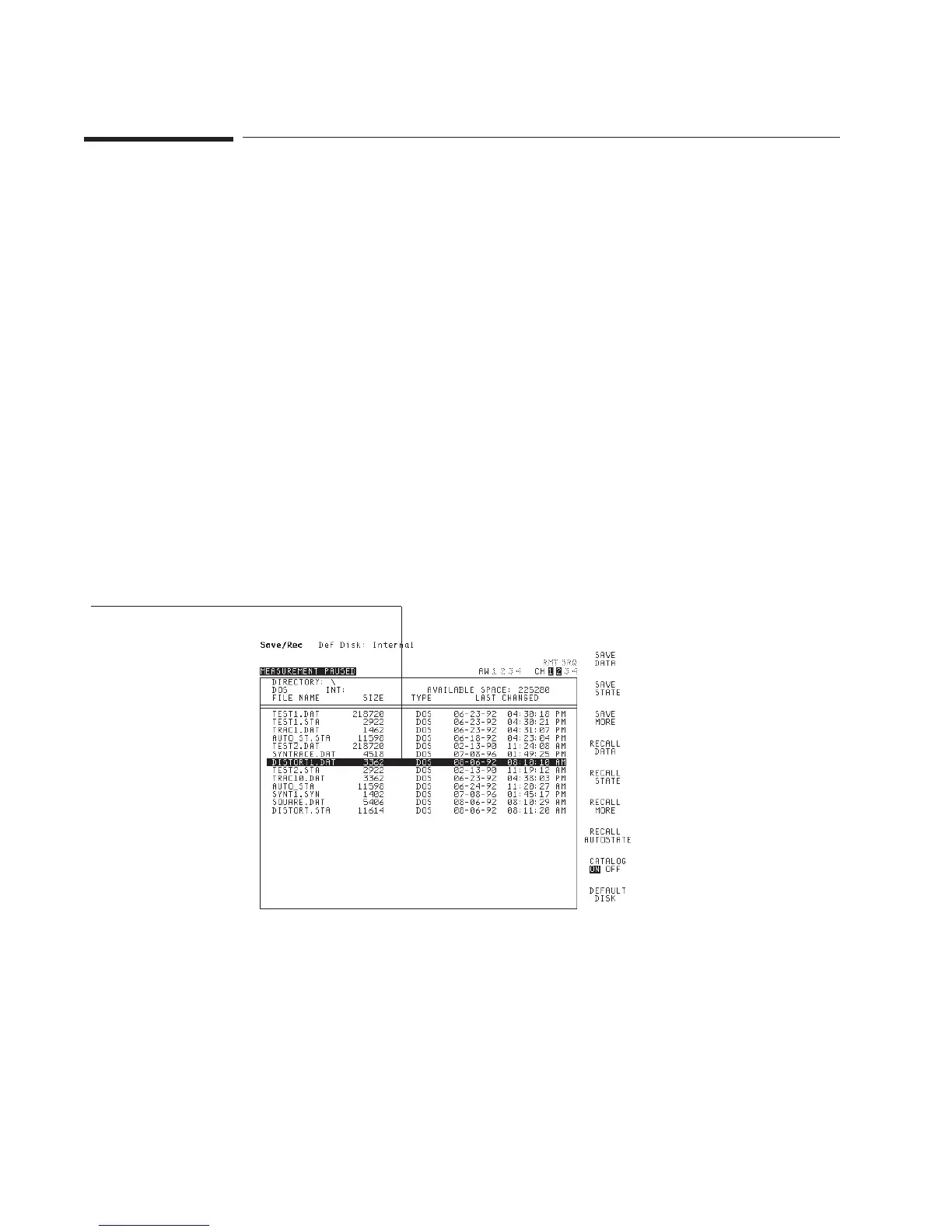

The analyzer recalls
the highlighted file
Saving and Plotting Data Agilent 35670A Quick Start Guide
