Agilent Technologies 35670A Quick Start Guide

To measure frequency response — Swept Sine (Option 1D2)
Swept Sine measurements are available only with those Agilent 35670A analyzers
that are equipped with Option 1D2. The measurement range expands to 130 dB
(typical), but measurement time increases as compared to the FFT instrument mode.
1 Initialize the analyzer.
Press [
Preset
] [
DO PRESET
].
Press [
SWEPT SINE
].

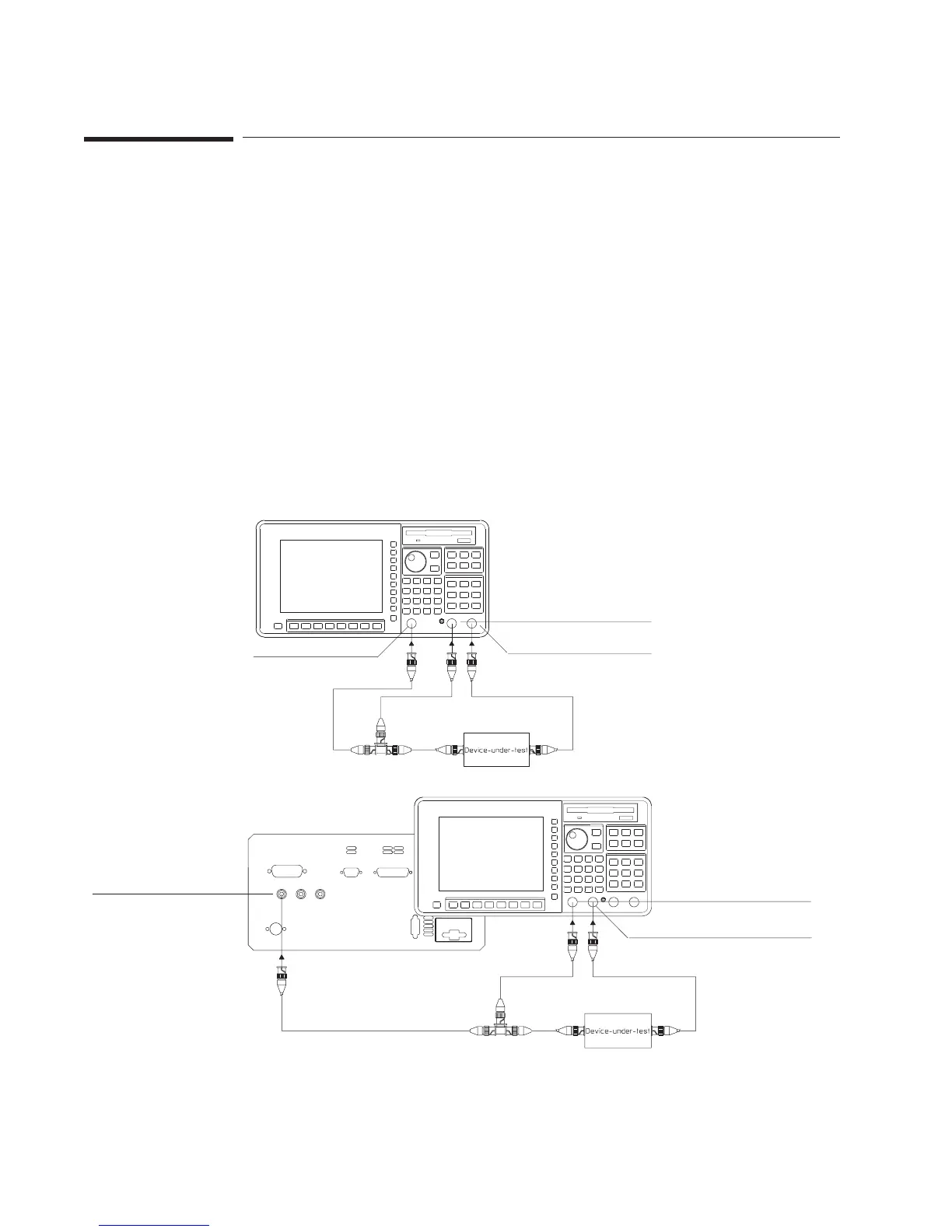

2 Connect the device-under-test (DUT).
3 Select the measurement parameters.
Press [
Freq
] [
START
] <number> <unit>, then press [
STOP
] <number> <unit>.
Press [
RESOLUTN SETUP
], then press [
SWEEP LIN LOG
] to highlight
LIN
for a linear
sweep.
Press [
Source
] [
LEVEL
] <number> <unit>.
Source
Rear Panel
Source
Channel 1
Channel 2
Option AY6
Channel 1
Channel 2
Making Measurements Agilent 35670A Quick Start Guide
32
