Agilent Technologies 35670A Quick Start Guide

4 Configure the display.
Press [
Scale
],thenpress[
AUTOSCALE ON OFF
] to highlight
ON
.
Press [
Disp Format
][
MORE
][
BODE DIAGRAM
].
5 Measure the DUT.
Press [
Start
].
If you want to use a linear X-axis for the logarithmic sweep:
Press [
Trace Coord
] then press[
X-AXIS LIN LOG
] to highlight
LIN
.

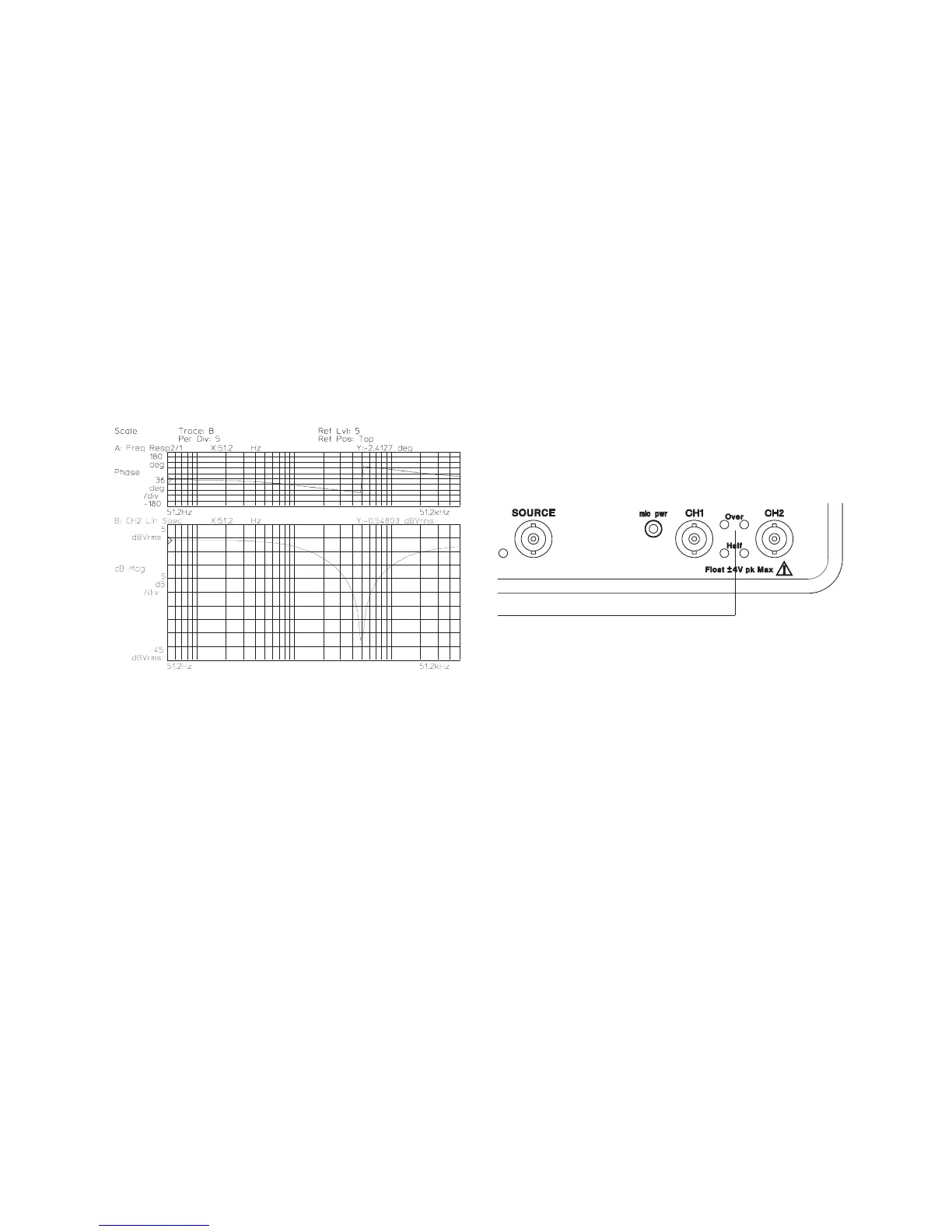

If the overload indicator (as shown in the illustration) flashes, the analyzer is
autoranging to provide the best signal-to-noise ratio.
Overload indicator flashes when
analyzer is autoranging
Agilent 35670A Quick Start Guide Making Measurements
33
